Group 8W-30 (Fuel/Ignition System)

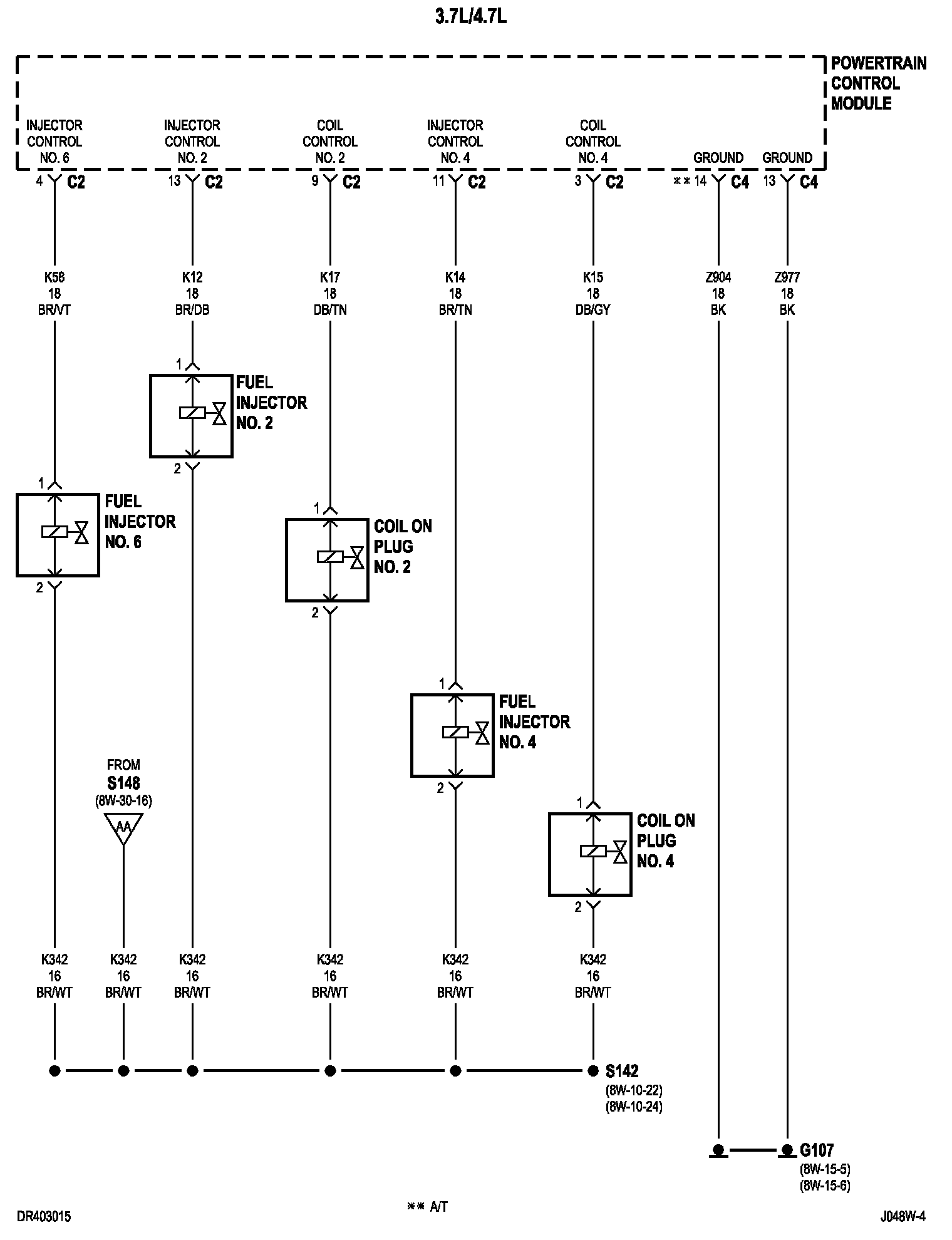

8w-30-13 (3.7L/4.7L):



8w-30-14 (3.7L/4.7L):



8w-30-15 (3.7L/4.7L):



8w-30-16 (3.7L/4.7L):



8w-30-17 (3.7L/4.7L):



8w-30-18:



8w-30-20:



8w-30-23 (3.7L/4.7L):



8w-30-31 (3.7L):



8w-30-61:
