Radiator: Description and Operation

RADIATOR 3.7L/4.7L/5.7L

DESCRIPTION

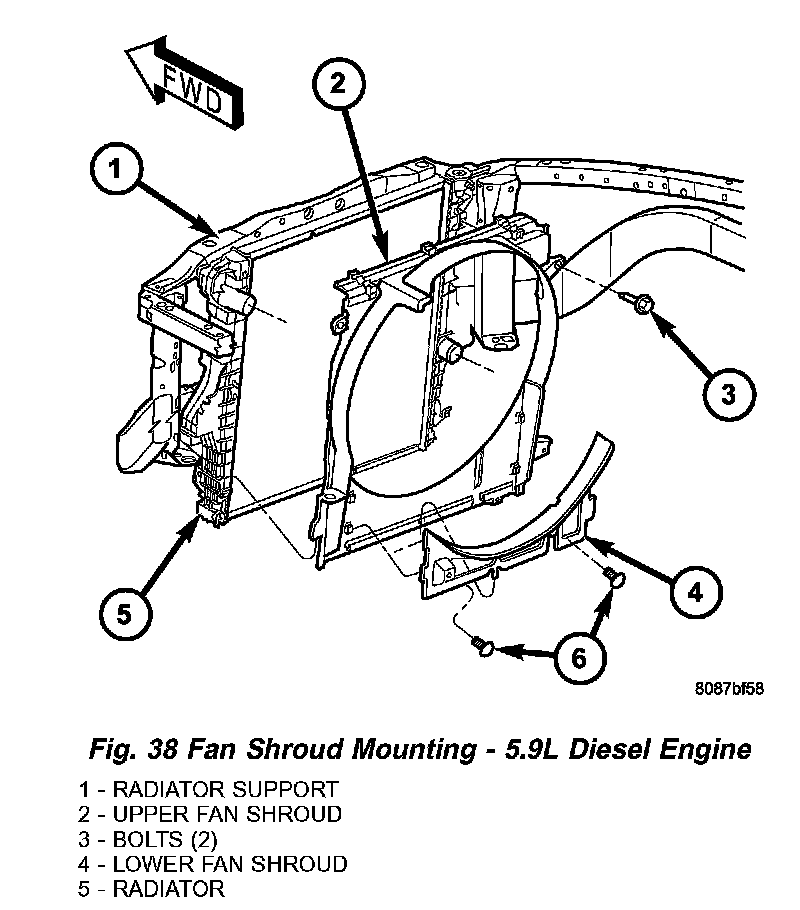

The radiator is a aluminum cross-flow design with horizontal tubes through the radiator core and vertical plastic side tanks (Fig. 38).
This radiator does not contain an internal transmission oil cooler.

OPERATION
The radiator supplies sufficient heat transfer using the cooling fins interlaced between the horizontal tubes in the radiator core to cool the engine.
