Instrument Cluster / Carrier
Instrument Cluster / Carrier
Instrument Cluster C1:

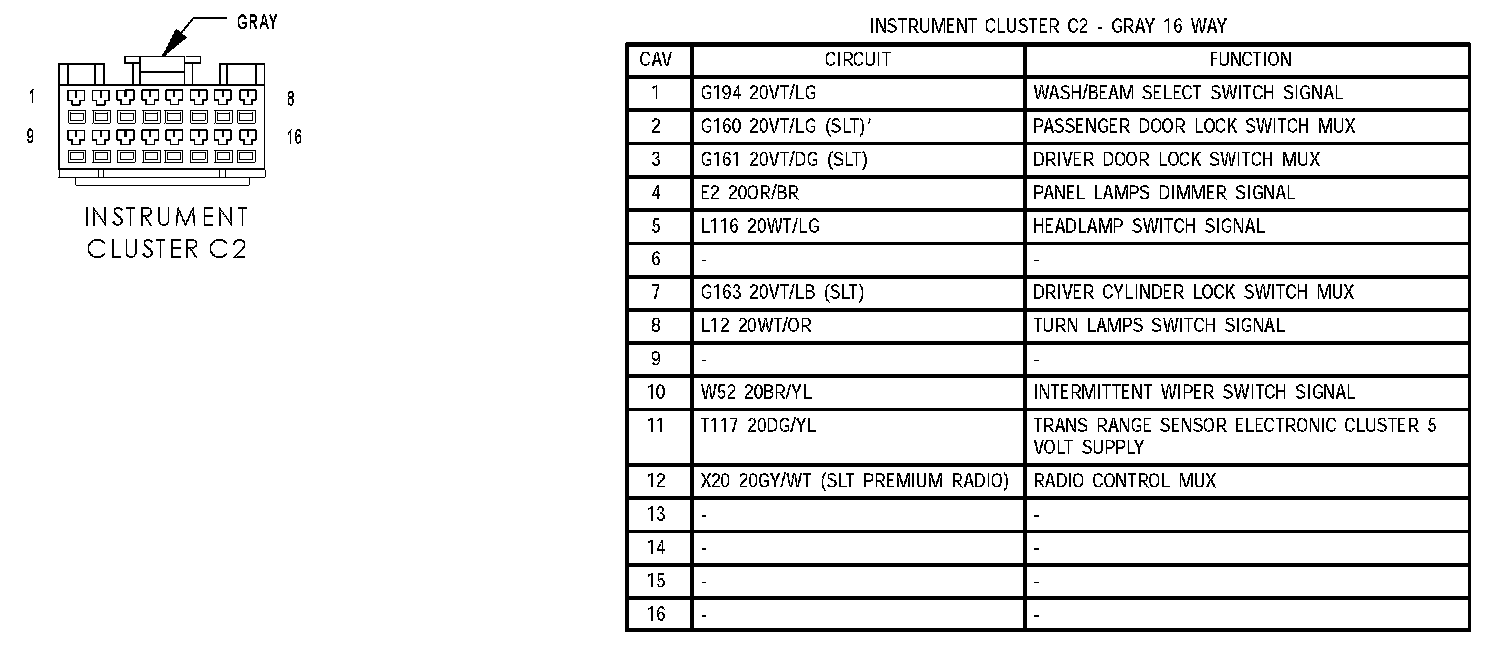

Instrument Cluster C2:
Instrument Cluster C3:
