Control Assembly: Service and Repair

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

1. Disconnect and isolate the battery negative cable.
2. Remove the center bezel from the instrument panel.

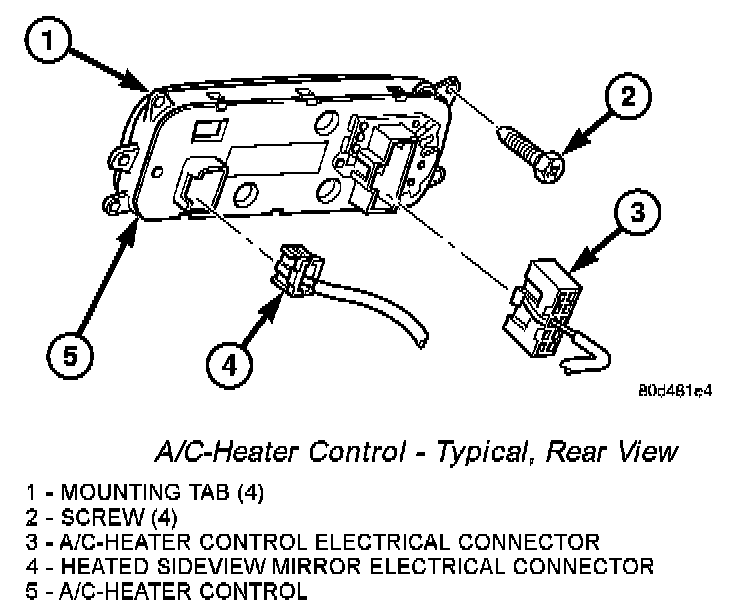

A/C-Heater Control - Typical, Rear View:

3. Remove the screws that secure the A/C-heater control to the instrument panel.

INSTALLATION
1. Position the A/C-heater control onto the instrument panel center bezel and install the retaining screws. Tighten the screws to 2.2 Nm (20 in. lbs.).
2. Install the instrument panel center bezel.
3. Reconnect the battery negative cable.
