PRNDL Not Displaying Correct Position (EATX Vehicles)

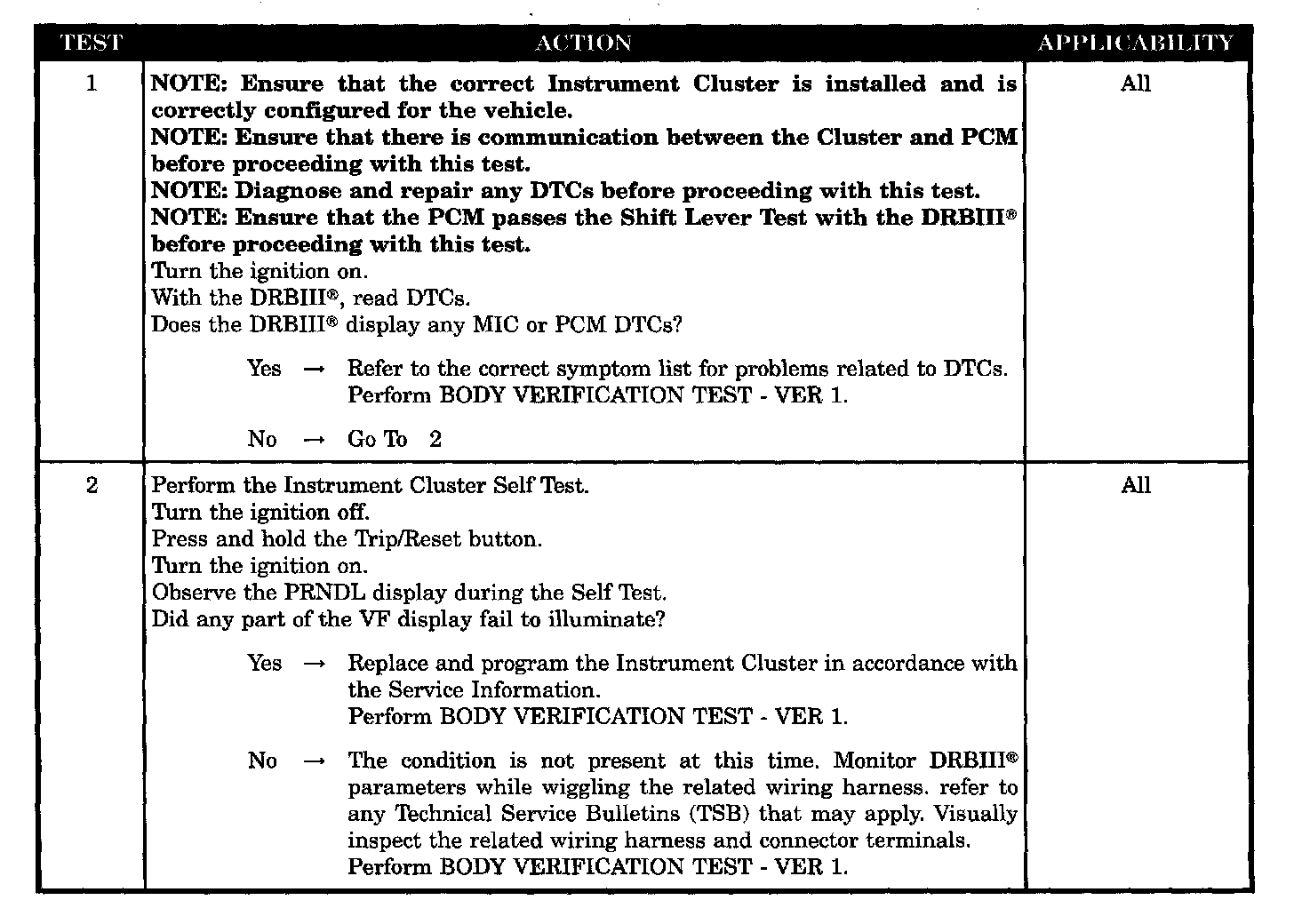

Test 1 - 2:






SYMPTOM
PRNDL NOT DISPLAYING CORRECT POSITION (EATX VEHICLES)

POSSIBLE CAUSES
- DTC present
- Instrument cluster
- Intermittent condition
