Accessory Power Output 2 Open

Test 1 - 2:

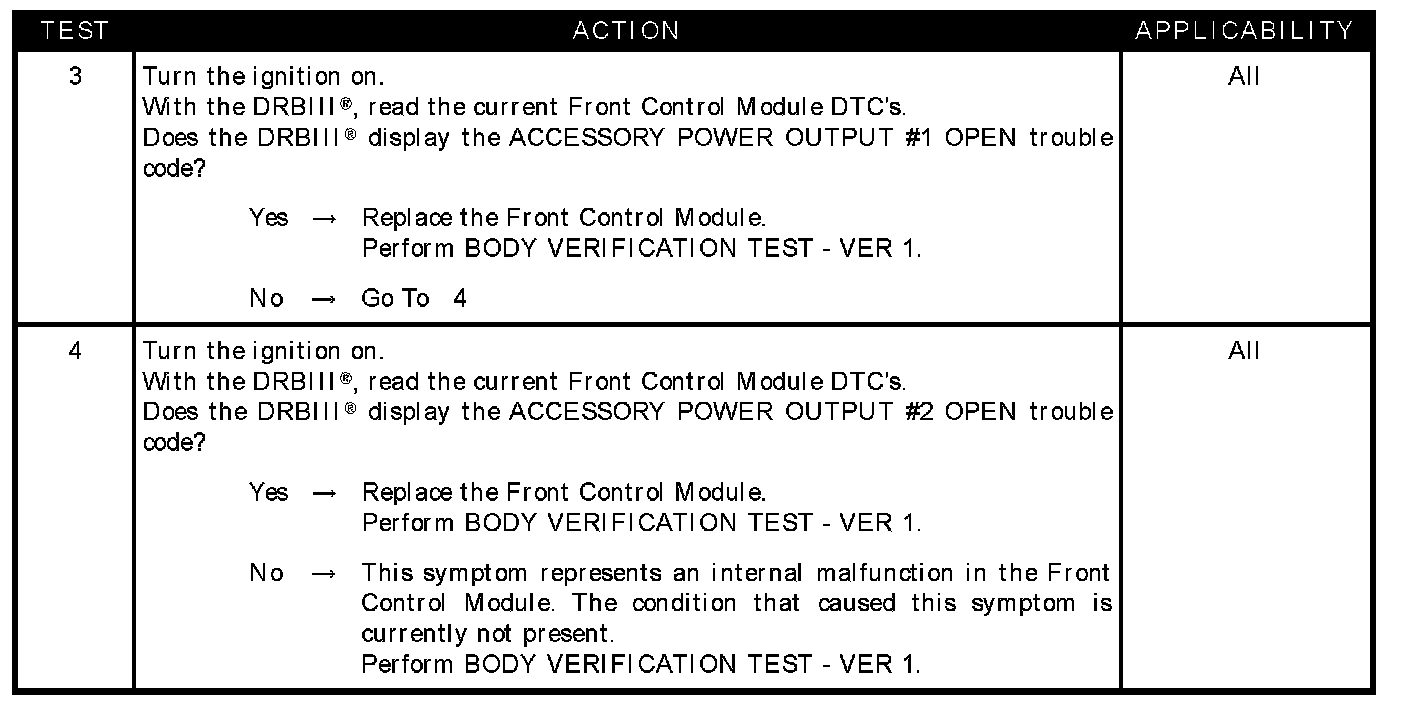

Test 3 - 4:

SYMPTOM
ACCESSORY POWER OUTPUT 2 OPEN

WHEN MONITORED
Continuously with the ignition on.

SET CONDITION
The FCM has detected an open in the Accessory Relay control circuit.

POSSIBLE CAUSES
- Front control module
- Fuse & relay center internal malfunction
- Accessory relay
- FCM
- Intermittent condition
