Cluster Diagnosis

CONDITIONS

Instrument Cluster Diagnosis:

Speedometer Diagnosis Part 1:

Speedometer Diagnosis Part 2:

Speedometer Diagnosis Part 3:

Tachometer Diagnosis Part 1:

Tachometer Diagnosis Part 2:

Fuel Gauge Diagnosis Part 1:

Fuel Gauge Diagnosis Part 2:

Temperature Gauge Diagnosis Part 1:

Temperature Gauge Diagnosis Part 2:

Odometer Diagnosis Part 1:

Odometer Diagnosis Part 2:

Electronic Gear Indicator Display Diagnosis Part 1:

Electronic Gear Indicator Display Diagnosis Part 2:

Refer to the following tables for possible problems, causes, and corrections.

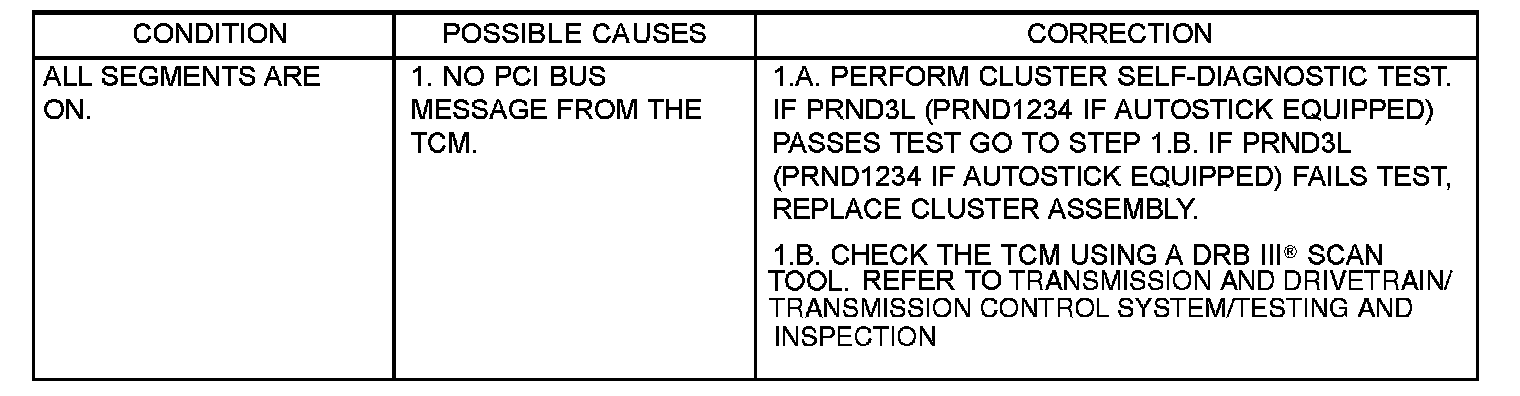

- INSTRUMENT CLUSTER DIAGNOSIS

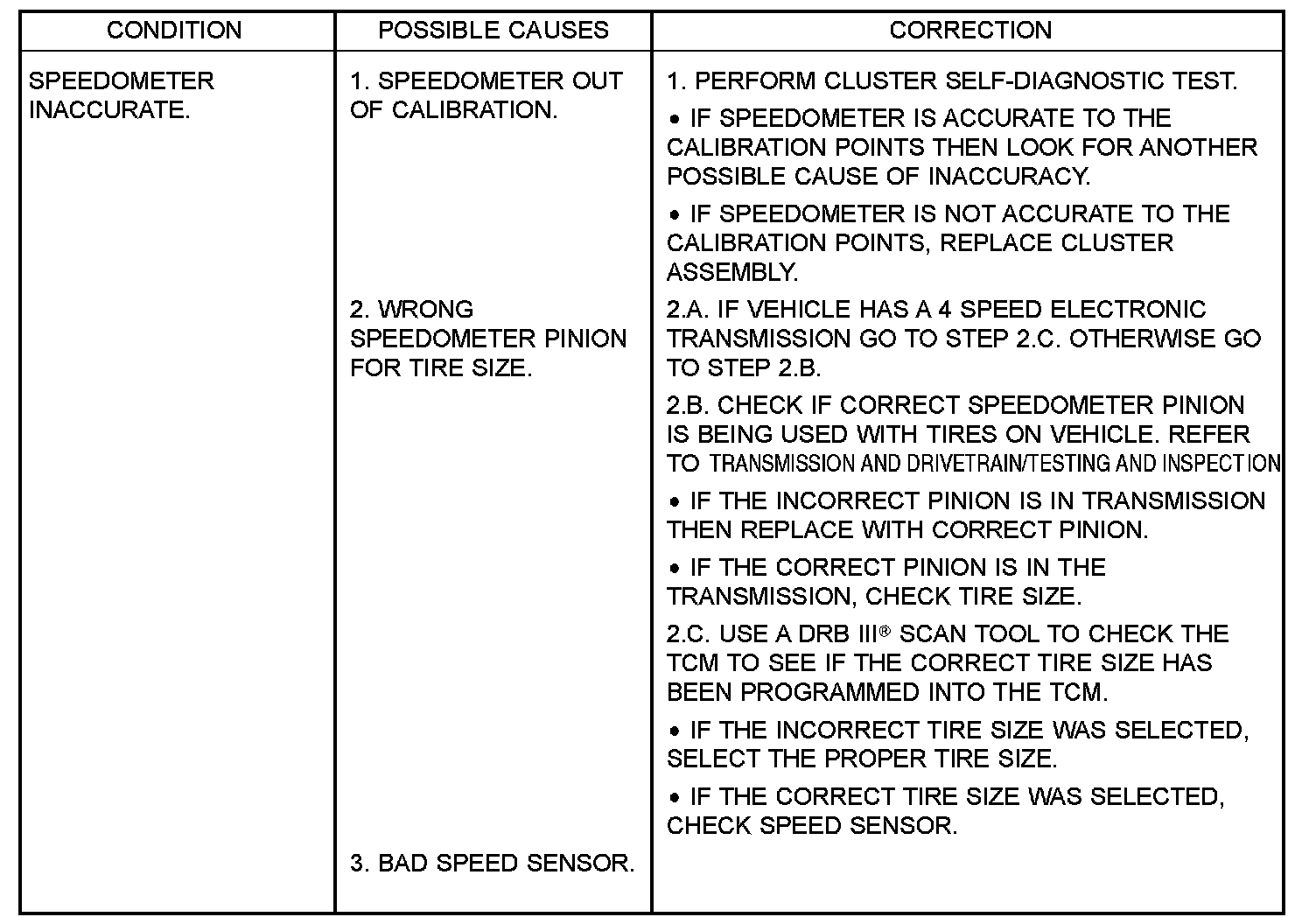

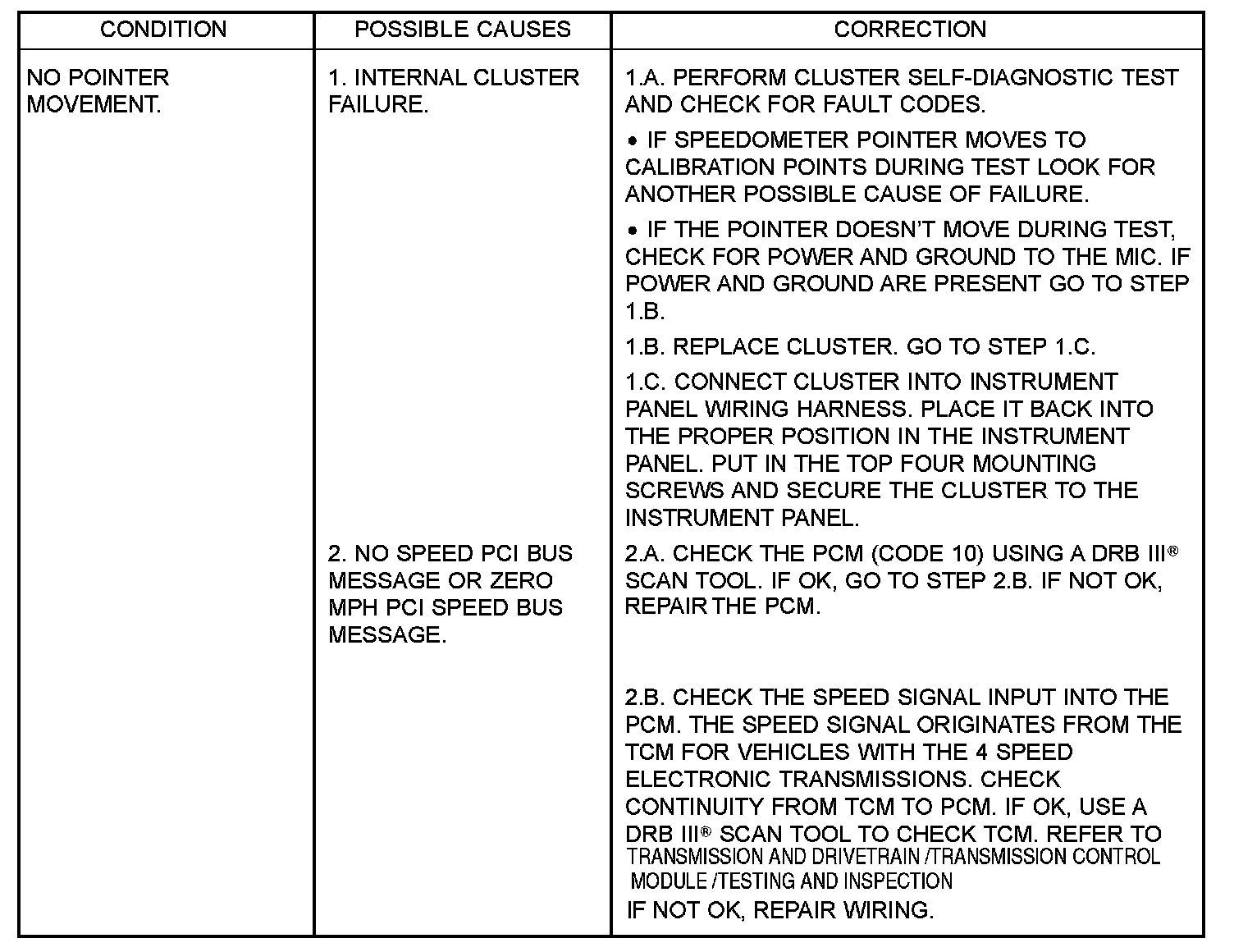

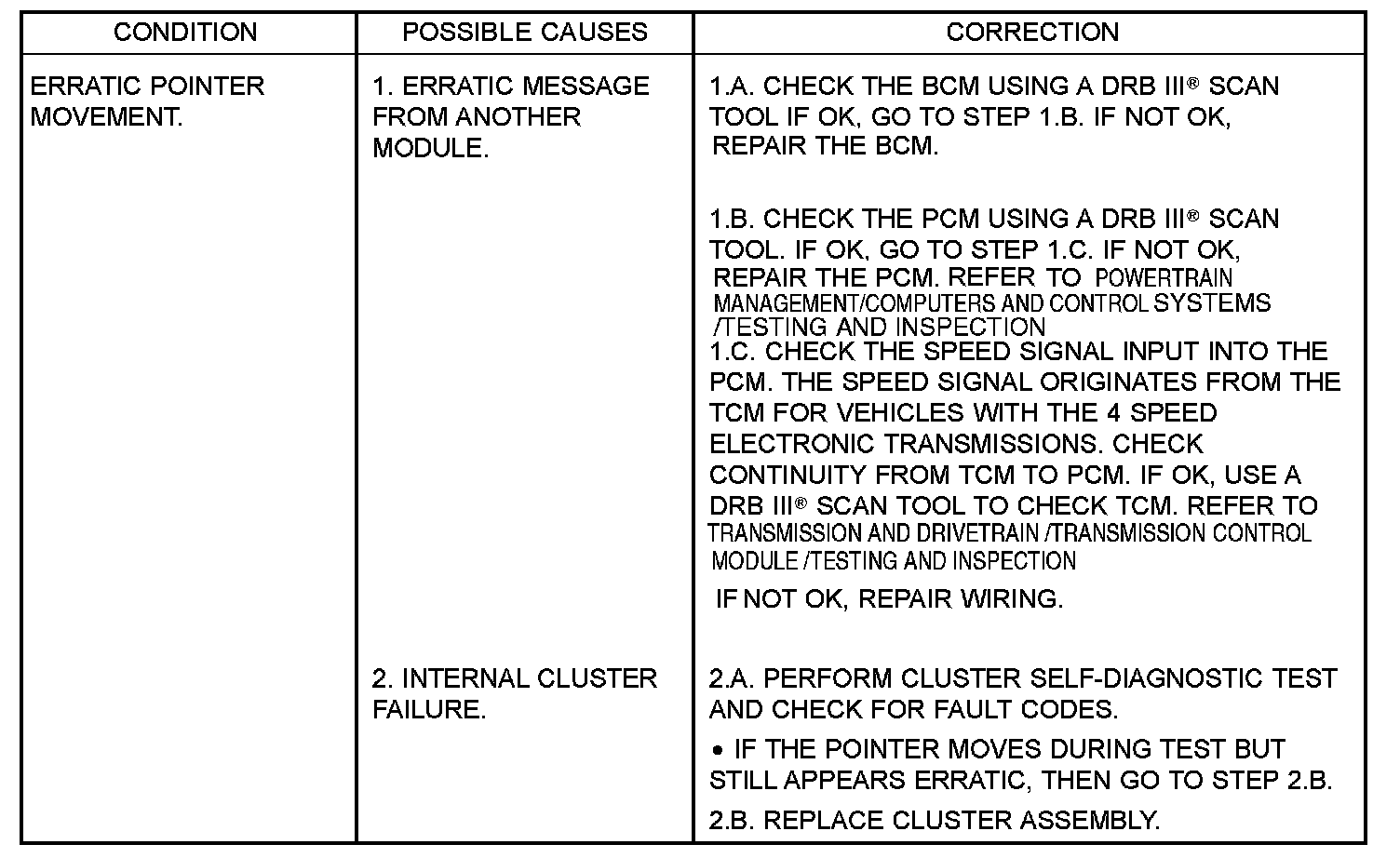

- SPEEDOMETER DIAGNOSIS

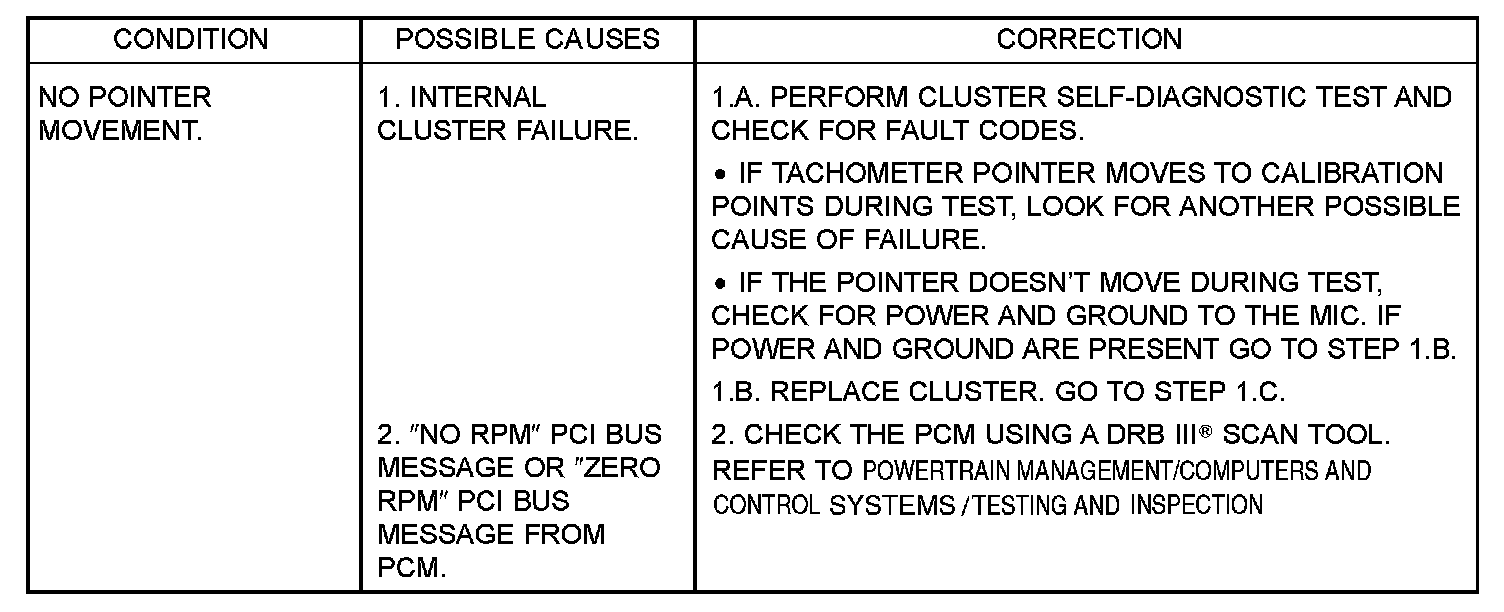

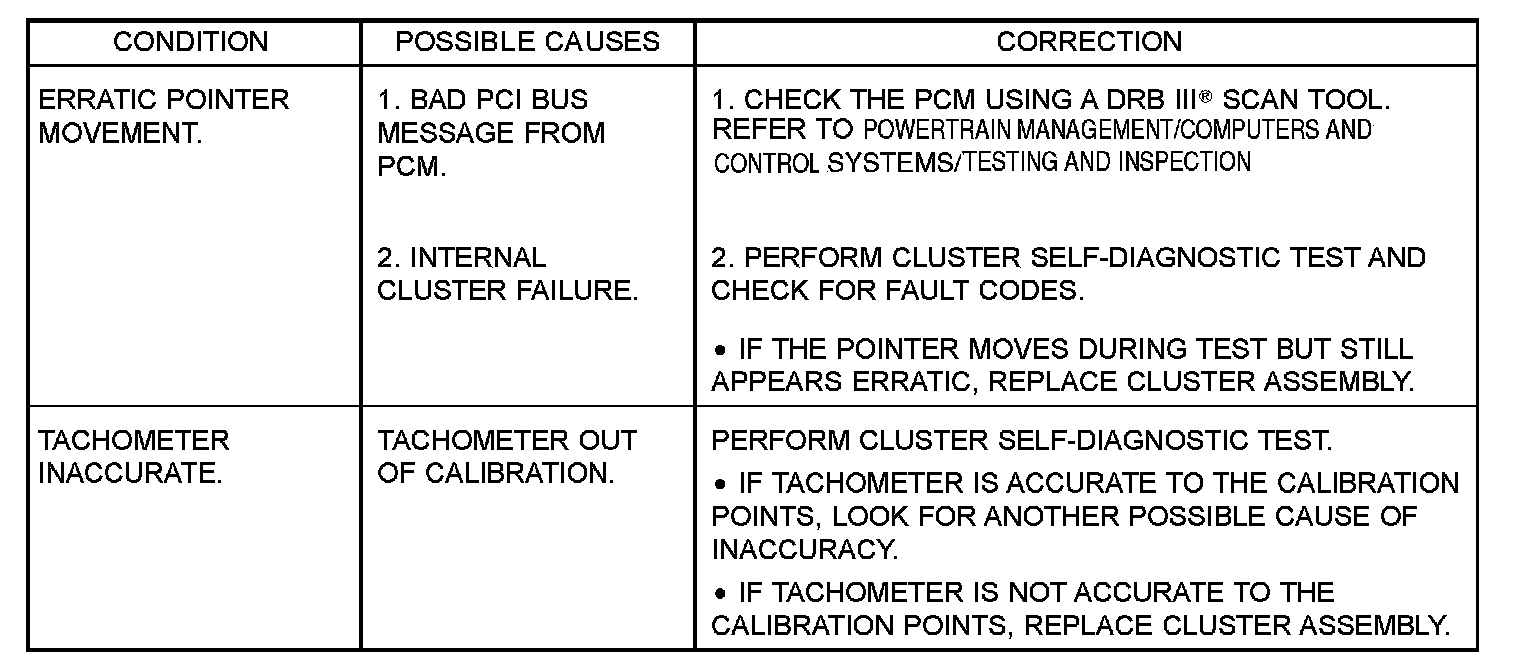

- TACHOMETER DIAGNOSIS

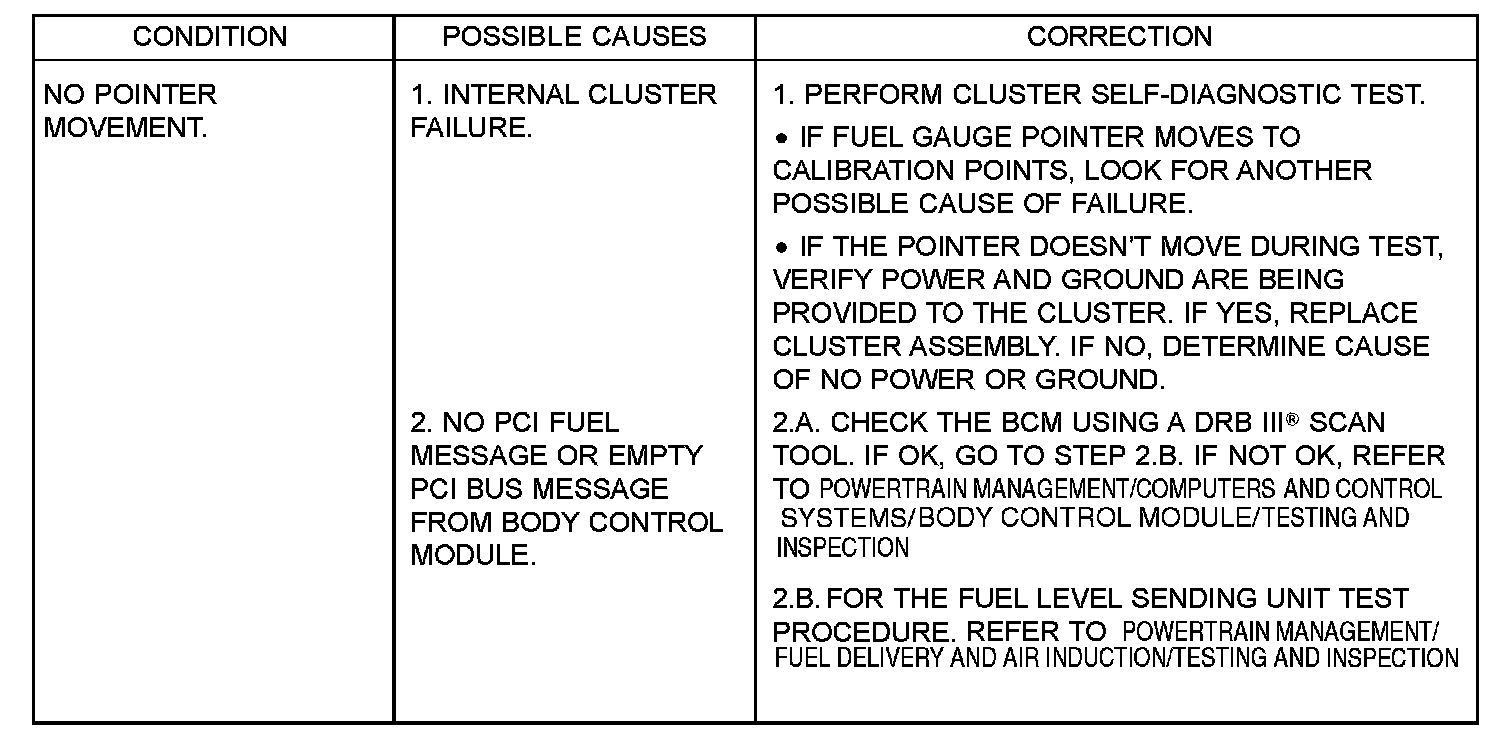

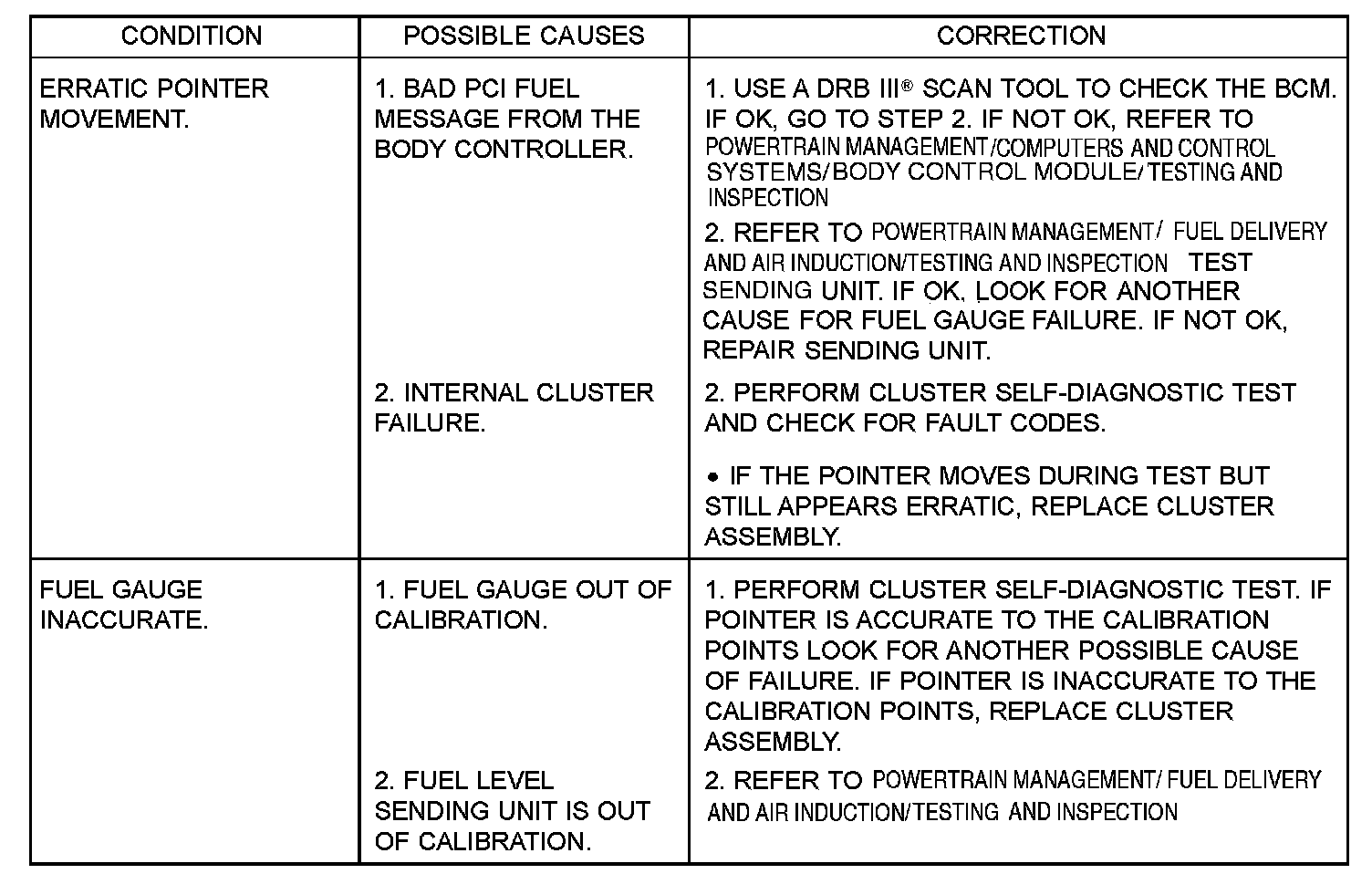

- FUEL GAUGE DIAGNOSIS

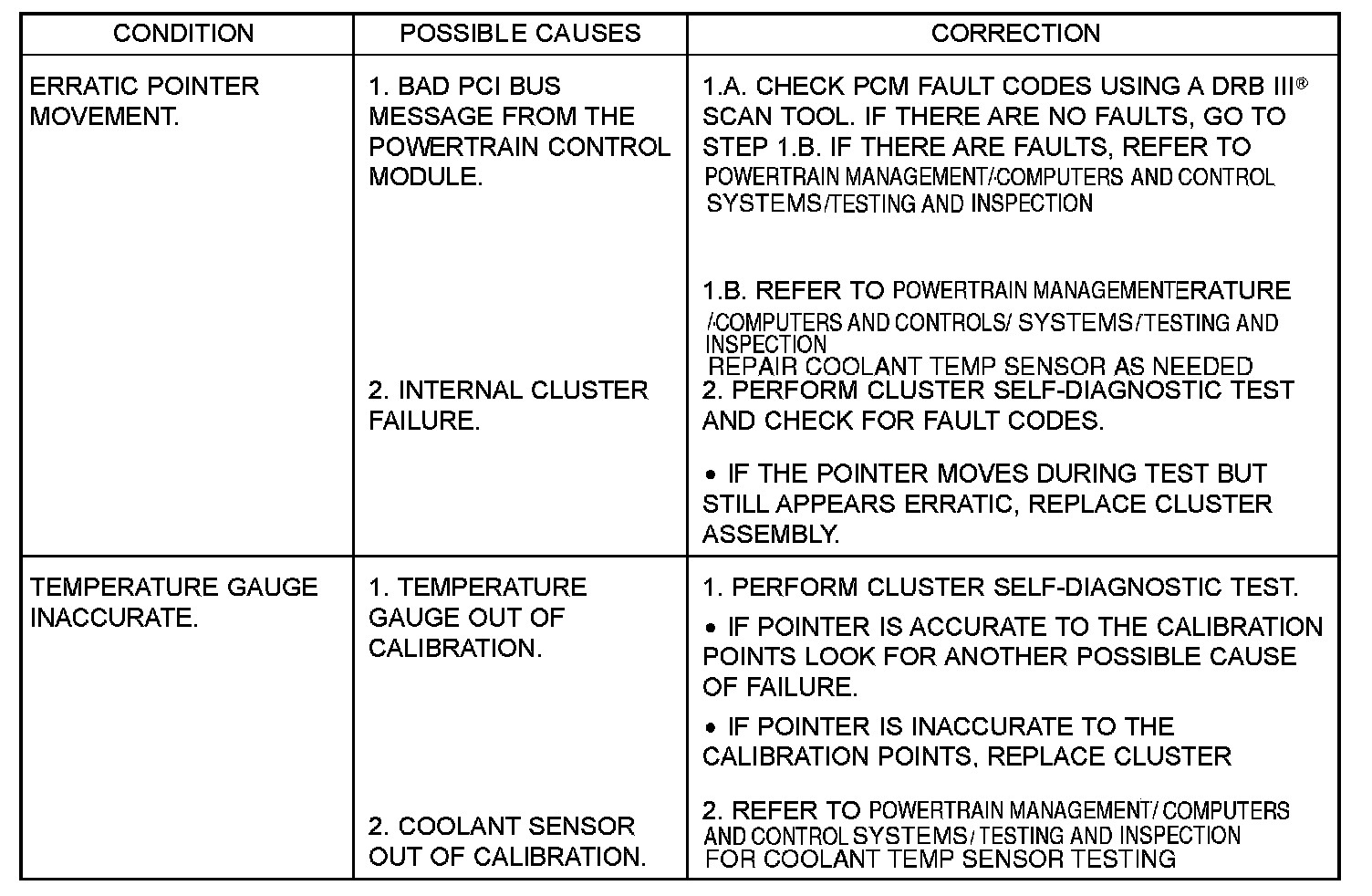

- TEMPERATURE GAUGE DIAGNOSIS

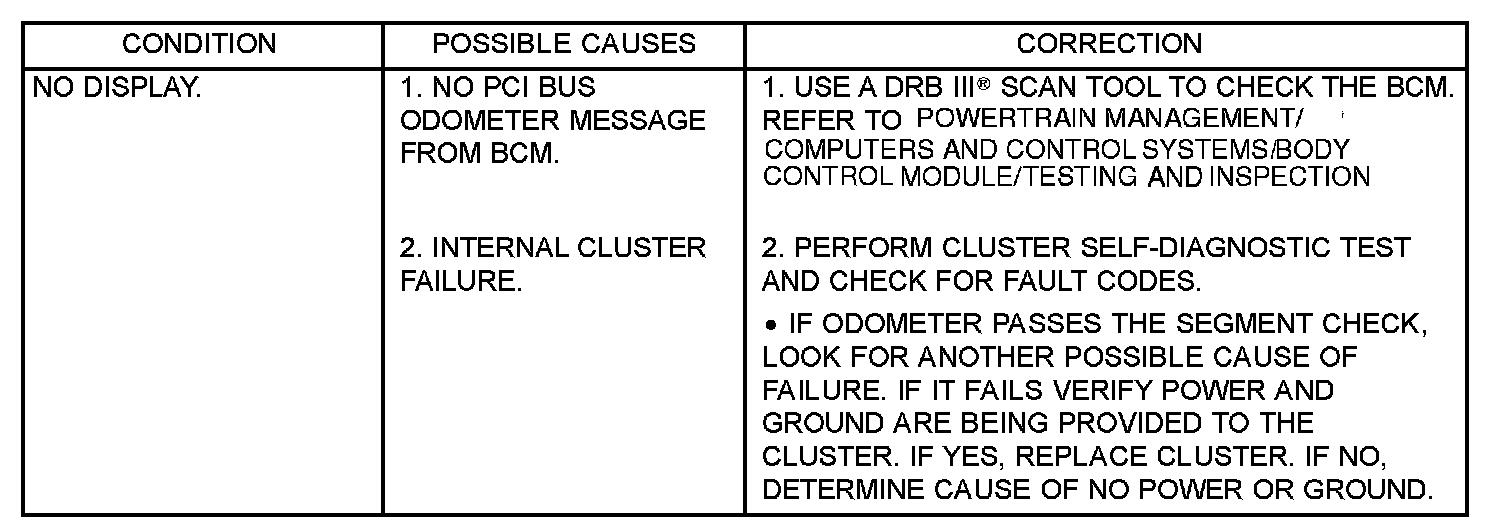

- ODOMETER DIAGNOSIS

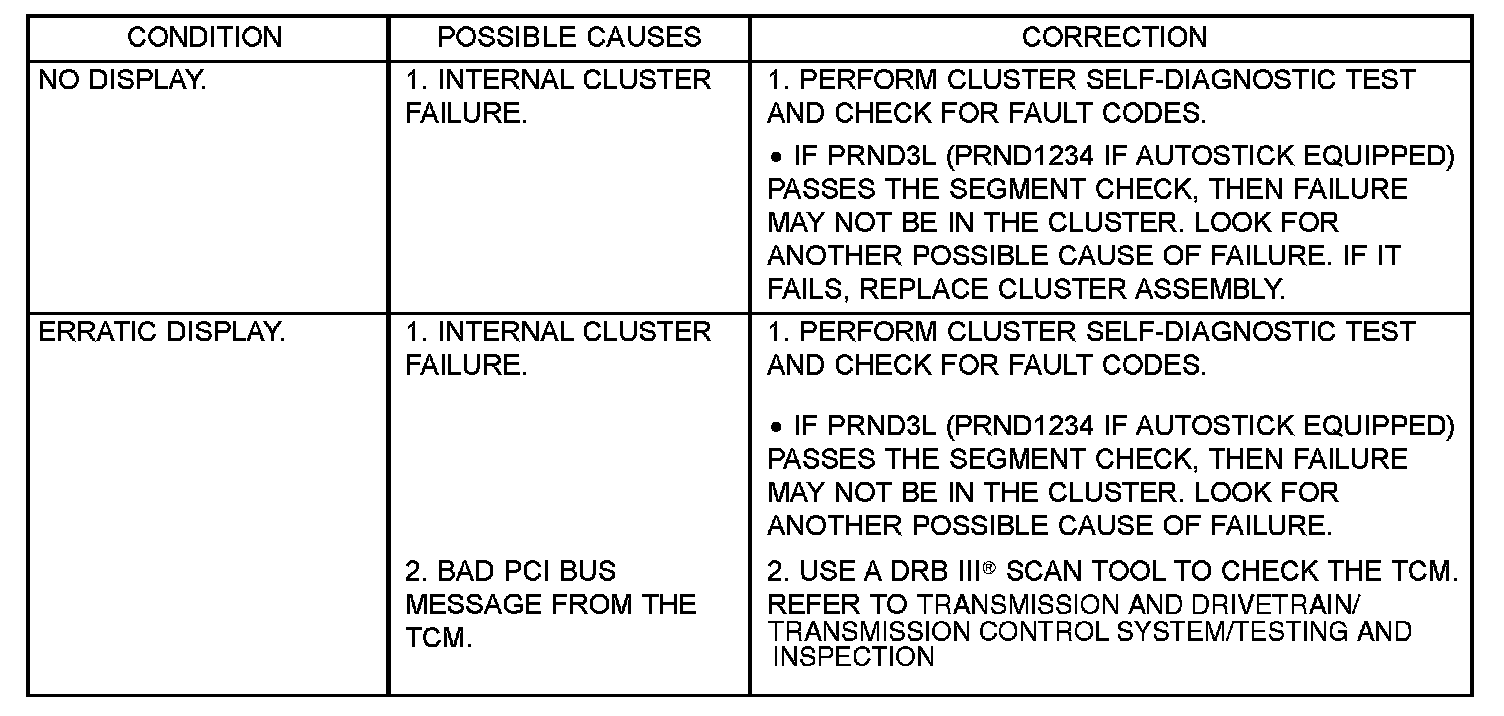

- ELECTRONIC GEAR INDICATOR DISPLAY DIAGNOSIS

NOTE: Always check the functionality of the cluster by running the self test prior to troubleshooting.
