40TE Automatic Transaxle
SEAL OIL PUMPREMOVAL
1. Remove transaxle from vehicle.
2. Using Tool C-3981 -B. remove oil pump seal (Fig. 261).
INSTALLATION

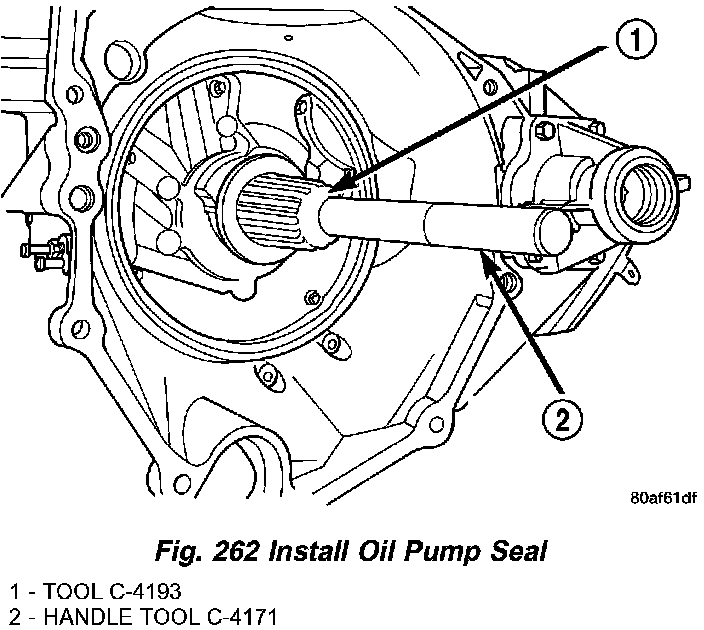

1. Using Tool C-4193, install oil pump seal (Fig. 262).
2. Install transaxle to vehicle.
REMOVAL
1. Remove transaxle from vehicle.
2. Using Tool C-3981 -B. remove oil pump seal (Fig. 261).
INSTALLATION
1. Using Tool C-4193, install oil pump seal (Fig. 262).
2. Install transaxle to vehicle.
