Rear Blend Door Control Circuit Low (ATC)

B1053-REAR BLEND DOOR CONTROL CIRCUIT LOW (ATC)

B1053-Rear Blend Door Control Circuit Low (ATC):





WHEN MONITORED
When the Actuator DTC Detection Test is executed.

SET CONDITION
If the (C53) Rear Mode Door Driver circuit, the (C54) Rear Blend Door Driver circuit, the (C801) Mode Door 2 Driver circuit, the (C154) Rear Common Door Driver circuit, or the (C808) Common Door Driver 3 circuit is shorted to ground.

POSSIBLE CAUSES
- (C53) rear mode door driver circuit shorted to ground or to other door driver circuit(s)
- (C54) rear blend door driver circuit shorted to ground or to other door driver circuit(s)
- (C801) mode door 2 driver circuit shorted to ground or to other door driver circuit(s)
- (C154) rear common door driver circuit shorted to ground or to other door driver circuit(s)
- (C808) common door driver 3 circuit shorted to ground or to other door driver circuit(s)
- Rear mode door actuator
- Rear blend door actuator
- Mode door 2 (floor to panel) actuator
- A/C heater control

Theory Of Operation
The A/C Heater Control drives the Rear Mode Door Actuator via the (C53) Rear Mode Door Driver circuit and the (C154) Rear Common Door Driver circuit. The A/C Heater Control drives the Rear Blend Door Actuator via the (C54) Rear Blend Door Driver circuit and the (C154) Rear Common Door Driver circuit. In addition, the Rear Mode Door Actuator, the Rear Blend Door Actuator, and the Mode Door 2 (Floor to Defrost) Actuator share a driver inside the A/C Heater Control. Due to the shared circuitry similar DTCs can set at the same time for multiple actuators depending upon the type of short, its location, and the direction the actuator is moving when the short is present.

Diagnostic Test

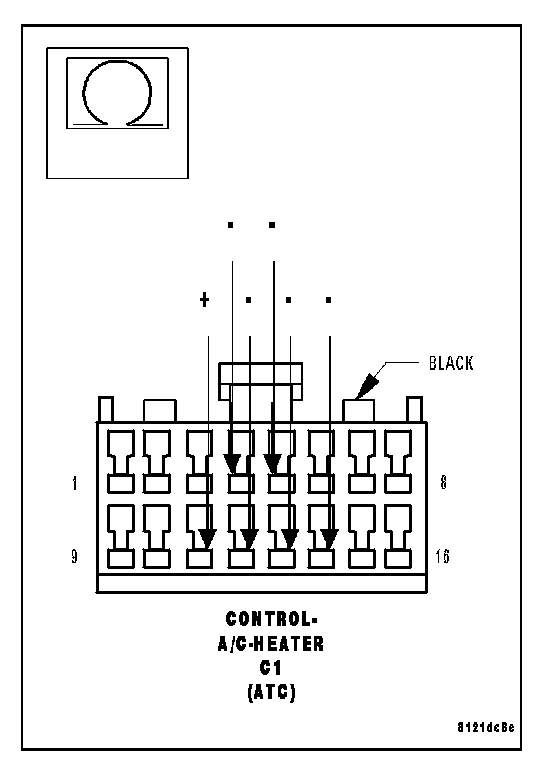

1. CHECK (C53) REAR MODE DOOR DRIVER CIRCUIT, (C54) REAR BLEND DOOR DRIVER CIRCUIT, (C808) COMMON DOOR DRIVER 3 CIRCUIT, (C154) REAR COMMON DOOR DRIVER CIRCUIT, & (C801) MODE DOOR 2 DRIVER CIRCUIT FOR A SHORT TO GROUND




Turn the ignition off.
Disconnect the A/C Heater Control C1 harness connector.
Measure the resistance of the (C53) Rear Mode Door Driver circuit between ground and the A/C Heater Control C1 harness connector.
Measure the resistance of the (C54) Rear Blend Door Driver circuit between ground and the A/C Heater Control C1 harness connector.
Measure the resistance of the (C808) Common Door Driver 3 Circuit between ground and the A/C Heater Control C1 harness connector.
Measure the resistance of the (C154) Rear Common Door Driver circuit between ground and the A/C Heater Control C1 harness connector.
Measure the resistance of the (C801) Mode Door 2 Driver circuit between ground and the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms on any of the circuits?

YES: Repair the circuit(s) with a resistance below 10k ohms for a short to ground. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 2

2. CHECK (C53) REAR MODE DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER CIRCUITS




Measure the resistance between the (C53) Rear Mode Door Driver circuit and the (C54) Rear Blend Door Driver circuit, the (C808) Common Door Driver 3 circuit, the (C32) Recirculation Door Driver circuit, the (C34) Common Door Driver 1 circuit, the (C801) Mode Door 2 Driver circuit, the (C807) Common Door Driver 2 circuit, the (C29) Mode Door 1 Driver circuit, and the (C61) Front Blend Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms between any of the circuits?

YES: Repair the circuit(s) with a resistance below 10k ohms for a short together. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 3

3. CHECK (C54) REAR BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER CIRCUIT(S)




Measure the resistance between the (C54) Rear Blend Door Driver circuit and the (C808) Common Door Driver 3 circuit, the (C32) Recirculation Door Driver circuit, the (C34) Common Door Driver 1 circuit, the (C801) Mode Door 2 Driver circuit, the (C807) Common Door Driver 2 circuit, the (C29) Mode Door 1 Driver circuit, and the (C61) Front Blend Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms between any of the circuits?

YES: Repair the circuit(s) with a resistance below 10k ohms for a short together. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 4

4. CHECK (C154) REAR COMMON DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER CIRCUIT(S)




Measure the resistance between the (C154) Rear Common Door Driver circuit and the (C808) Common Door Driver 3 circuit, the (C32) Recirculation Door Driver circuit, the (C34) Common Door Driver 1 circuit, the (C801) Mode Door 2 Driver circuit, the (C807) Common Door Driver 2 circuit, the (C29) Mode Door 1 Driver circuit, and the (C61) Front Blend Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms between any of the circuits?

YES: Repair the circuit(s) with a resistance below 10k ohms for a short together. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 5

5. CHECK (C808) COMMON DOOR DRIVER 3 CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER CIRCUIT(S)




Measure the resistance between the (C808) Common Door Driver 3 circuit and the (C32) Recirculation Door Driver circuit, the (C34) Common Door Driver 1 circuit, the (C807) Common Door Driver 2 circuit, the (C29) Mode Door 1 Driver circuit, and the (C61) Front Blend Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms between any of the circuits?

YES: Repair the circuit(s) with a resistance below 10k ohms for a short together. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 6

6. CHECK (C801) MODE DOOR 2 DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER CIRCUIT(S)




Measure the resistance between the (C801) Mode Door 2 Driver circuit and the (C32) Recirculation Door Driver circuit, the (C34) Common Door Driver 1 circuit, the (C807) Common Door Driver 2 circuit, the (C29) Mode Door 1 Driver circuit, and the (C61) Front Blend Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms between any of the circuits?

YES: Repair the circuit(s) with a resistance below 10k ohms for a short together. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 7

7. CHECK REAR MODE DOOR ACTUATOR CIRCUIT RESISTANCE




Measure the resistance between the (C53) Rear Mode Door Driver circuit and the (C154) Rear Common Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 30 ohms?

YES: Go To 8
NO: Go To 9

8. CHECK (C53) REAR MODE DOOR DRIVER CIRCUIT FOR A SHORT TO (C154) REAR COMMON DOOR DRIVER CIRCUIT




Disconnect the Rear Mode Door Actuator harness connector.
Measure the resistance between the (C53) Rear Mode Door Driver circuit and the (C154) Rear Common Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms?

YES: Repair the (C53) Rear Mode Door Driver circuit for a short to the (C154) Rear Common Door Driver circuit. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Replace the Rear Mode Door Actuator in accordance with the Service Information. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

9. CHECK REAR BLEND DOOR ACTUATOR CIRCUIT RESISTANCE




Measure the resistance between the (C54) Rear Blend Door Driver circuit and the (C154) Rear Common Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 30 ohms?

YES: Go To 10
NO: Go To 11

10. CHECK (C54) REAR BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO (C154) REAR COMMON DOOR DRIVER CIRCUIT




Disconnect the Rear Blend Door Actuator harness connector.
Measure the resistance between the (C54) Rear Blend Door Driver circuit and the (C154) Rear Common Door Driver circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms?

YES: Repair the (C54) Rear Blend Door Driver circuit for a short to the (C154) Rear Common Door Driver circuit. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Replace the Rear Blend Door Actuator in accordance with the Service Information. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

11. CHECK MODE DOOR 2 (FLOOR TO DEFROST) ACTUATOR CIRCUIT RESISTANCE




Measure the resistance between the (C801) Mode Door 2 Driver circuit and the (C808) Common Door Driver 3 circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 30 ohms?

YES: Go To 12
NO: Go To 13

12. CHECK (C801) MODE DOOR 2 DRIVER CIRCUIT FOR A SHORT TO (C808) COMMON DOOR DRIVER 3 CIRCUIT




Disconnect the Mode Door 2 (Floor to Defrost) Actuator harness connector.
Measure the resistance between the (C801) Mode Door 2 Driver circuit and the (C808) Common Door Driver 3 circuit in the A/C Heater Control C1 harness connector.

Q: Is the resistance below 10k ohms?

YES: Repair the (C801) Mode Door 2 Driver circuit for a short to the (C808) Common Door Driver 3 circuit. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Replace the Mode Door 2 (Floor to Defrost) Actuator in accordance with the Service Information. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

13. RUN THE ACTUATOR DTC DETECTION TEST
Reconnect the A/C Heater Control C1 harness connector.
Turn the ignition on.
With the scan tool, erase HVAC DTCs.
Turn the ignition off, wait 10 seconds, and then turn the ignition on.
With the scan tool, select System Tests and then select Actuator DTC Detection. When the test is complete, select View DTCs.

Q: Does the scan tool only display: B1053-REAR BLEND DOOR CONTROL CIRCUIT LOW?

YES: Replace the A/C Heater Control in accordance with the Service Information. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO, Other DTC(s) Displayed
Diagnose and repair the other DTC(s). If multiple DTCs are present, beginning with the common circuits, diagnose and repair all short high DTCs and then all short low DTCs.
NO, And No Other DTCs Displayed
Using the wiring diagram as a guide, inspect the wiring and connectors for conditions causing an intermittent short. Repair as necessary. Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
