Transmission Control System Relay: Diagrams

Integrated Power Module (Front View):

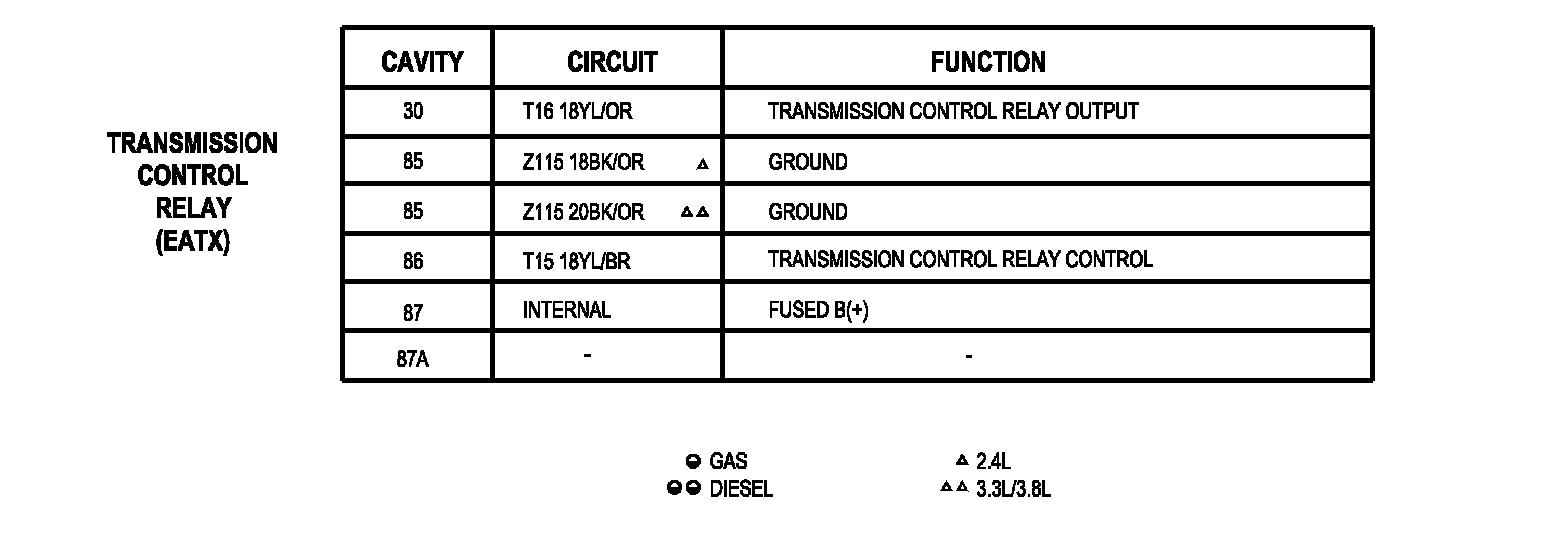

Transmission Control Relay (EATX):
