Front Seat

SEAT-FRONT

REMOVAL




1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats / Service Precautions.
2. Remove the cover (1) and lower seat belt anchor bolt (2).

FRONT SEAT - LEFT SIDE

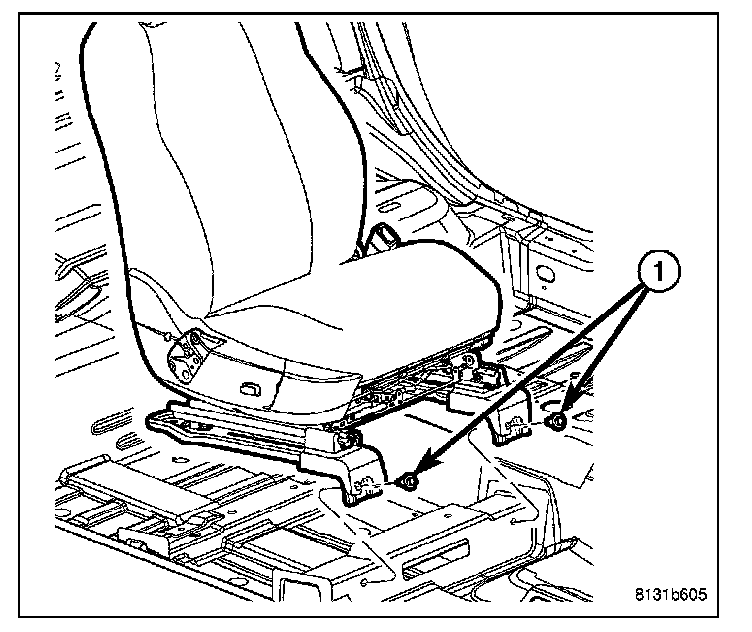

1. Remove the left side front seat two front attaching bolts (1).




2. Move the seat forward to gain access to the rear bolts.

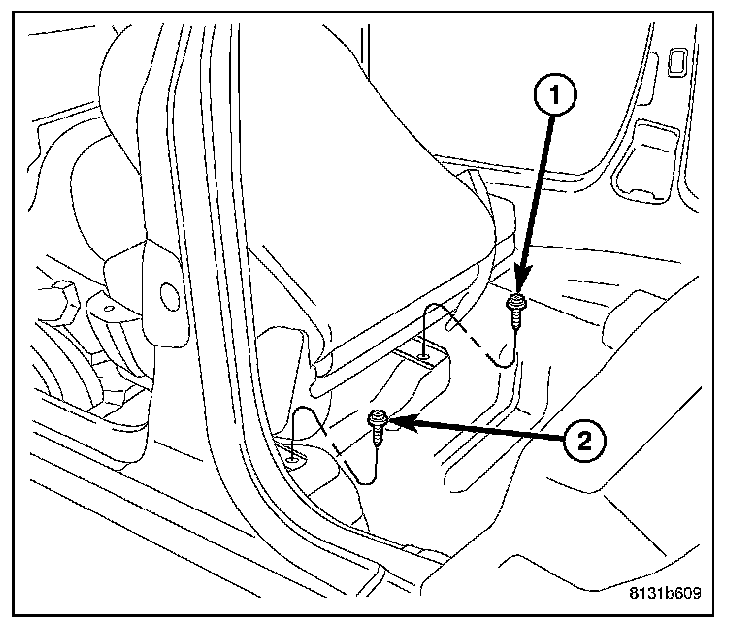

3. Remove the left side front seat two rear attaching bolts (1) and (2).
4. Disconnect and isolate battery negative cable.
5. Disconnect the electrical connectors.
6. Remove the seat.

FRONT SEAT - RIGHT SIDE

1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats / Service Precautions.

WARNING:
- The front passenger seat must be handled carefully as well. When removing the seat, be careful when setting on floor not to drop. If dropped, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.
- When the seat is on the floor, no one should sit in the front passenger seat. This uneven force may damage the sensing ability of the seat weight sensors. If sat on and damaged, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.




2. Remove the right side front seat with OCS sensor two front attaching bolts (1).




3. Move the seat forward to gain access to the rear bolts.
4. Remove the right side front seat with OCS sensor two rear attaching bolts (2) and (3).
5. Ensure that the ignition key is in the off position.
6. Disconnect and isolate battery negative cable.
7. Disconnect the electrical connectors.
8. Remove the seat.

INSTALLATION

FRONT SEAT - RIGHT SIDE

1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats / Service Precautions.

WARNING:
- The front passenger seat must be handled carefully as well. When removing the seat, be careful when setting on floor not to drop. If dropped, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.
- When the seat is on the floor, no one should sit in the front passenger seat. This uneven force may damage the sensing ability of the seat weight sensors. If sat on and damaged, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.




2. With battery negative cable disconnected.
3. Place seat into position in vehicle.

WARNING: The front passenger seat must be handled carefully as well. When removing the seat, be careful when setting on floor not to drop. If dropped, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.

4. Connect the electrical connectors.
5. Place the ignition key in the run position.
6. Connect battery negative cable.
7. Place ignition key in the off position.
8. Move the seat forward to gain access to the rear bolts, as necessary.
9. Install the front seat attaching rear bolts (1) and (2).




10. Install the front seat front attaching bolts (1).
11. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component. Refer to Air Bag Systems / Testing and Inspection.
12. Following successful completion of the supplemental restraint system verification test procedure, perform the Occupant Classification System Verification Test using a scan tool.

FRONT SEAT - LEFT SIDE




1. Place seat into position in vehicle.
2. Connect the electrical connectors.
3. Connect battery negative cable.
4. Move the seat forward to gain access to the rear bolts.
5. Install the front seat attaching rear bolts (1) and (2).




6. Install the front seat front attaching bolts (1).




7. Install the cover (1) and lower seat belt anchor bolt (2).
