Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

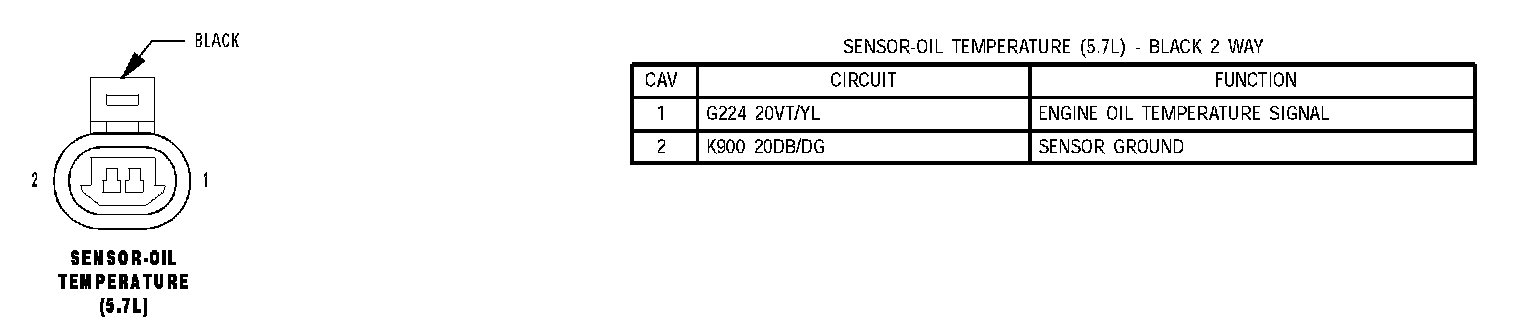

Sensor - Oil Temperature (5.7L):
