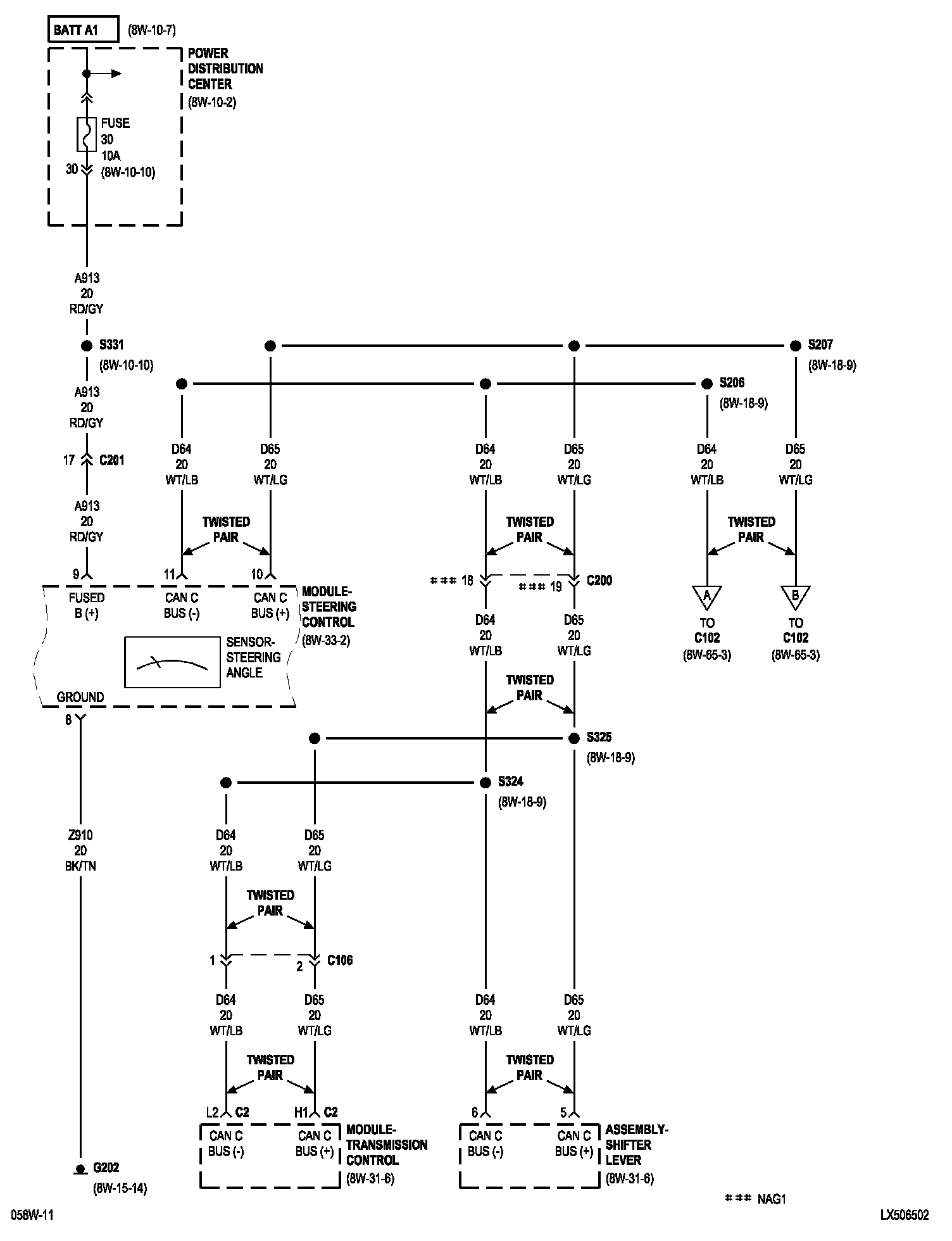

Group 8W-65 (Speed Proportional Steering)
Group 8W-65 (Speed Proportional Steering)
8w-65-2:
8w-65-3:
8w-65-4:
