Service Specifications

SERVICE SPECIFICATIONS

GENERAL DESCRIPTION

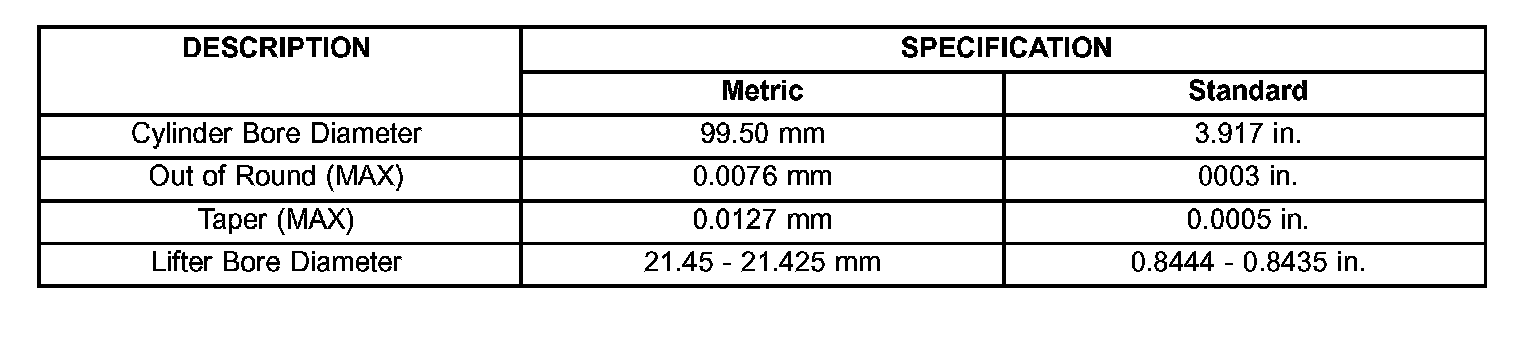

CYLINDER BLOCK

PISTONS

PISTON PINS

PISTON RINGS

CONNECTING RODS

CRANKSHAFT

CAMSHAFT

VALVE TIMING

CYLINDER HEAD

HYDRAULIC TAPPETS

VALVES

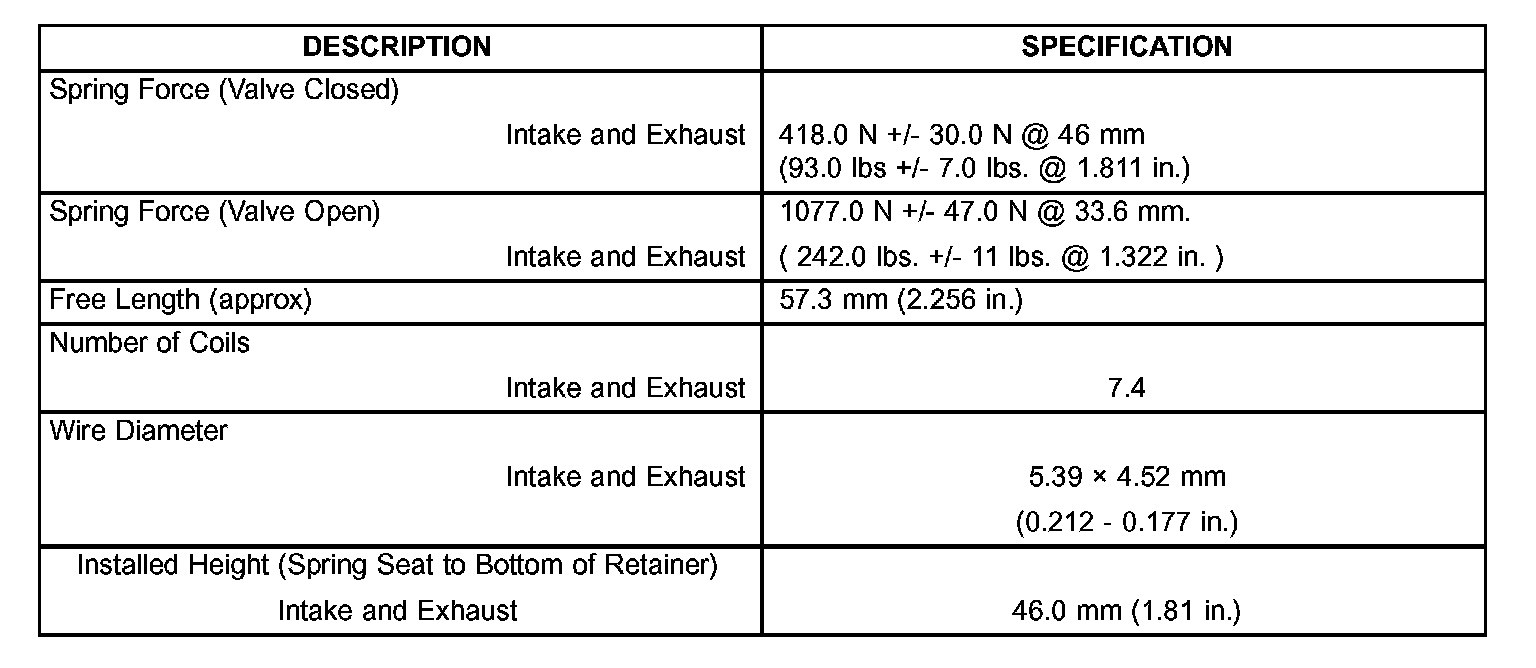

VALVE SPRING

OIL PUMP
