Electrical Specifications

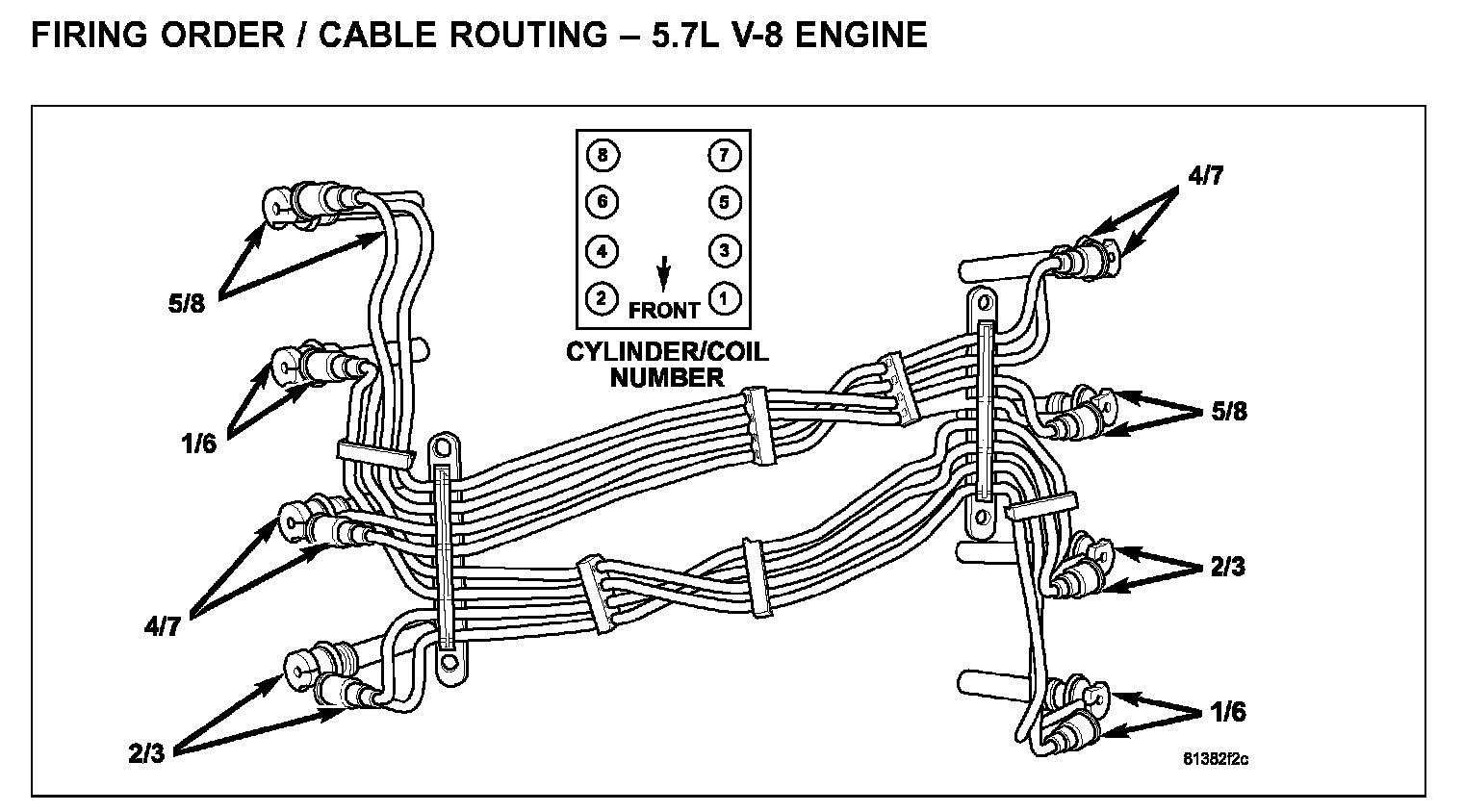

Firing Order / Cable Routing - 5.7L V-8 Engine:

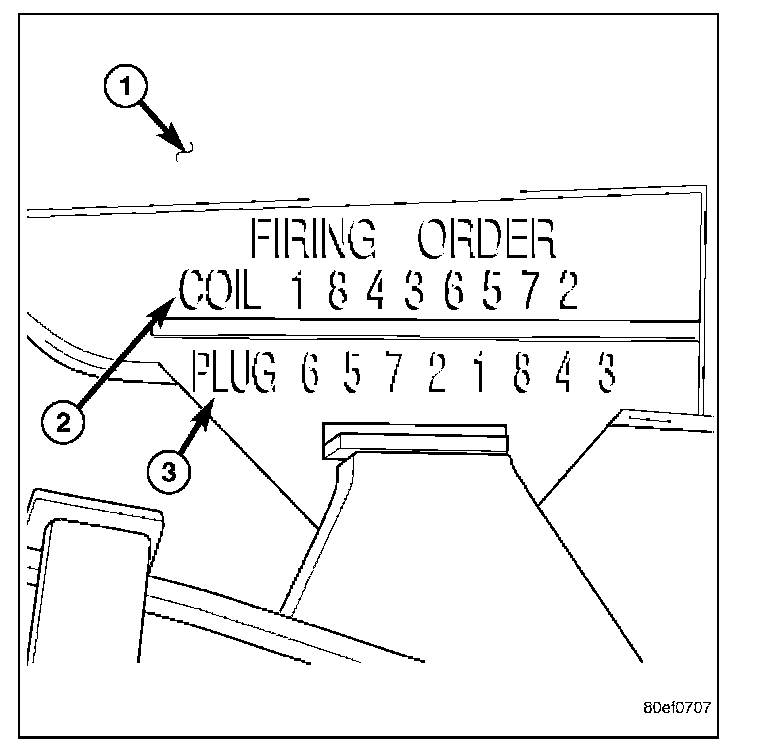

Eight conventional spark plug cables are used with the 5.7L. These cables connect a coil on one cylinder bank, directly to a spark plug on the opposite cylinder bank. The cables are placed and routed in special plastic looms to keep them separated. These plastic looms are clipped to the intake manifold. To prevent a mismatch of cables, a corresponding spark plug / coil number is displayed on each plug cable: 1/6, 2/3, 4/7 and 5/8. These numbers (2) and (3) can also be found on the top of the intake manifold.
