System Specifications

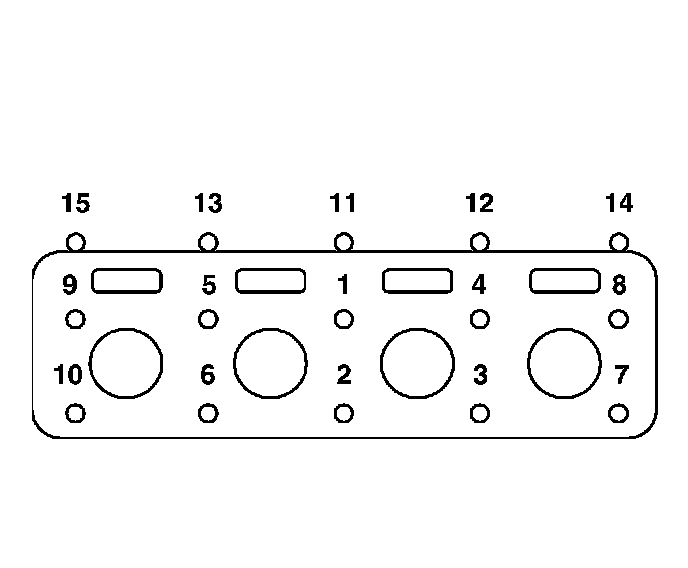

Cylinder Head-Bolts
M-12 Bolts
Step 1
34 Nm (25 ft. lbs.)
Step 2
54 Nm (40 ft. lbs.)
Step 3
Turn 90°
M-8 Bolts
Step 1
20 Nm (15 ft. lbs.)
Step 2
34 Nm (25 ft. lbs.)
Out-of-flatness max
0.0508 mm (0.002 inch)
Intake manifold bolts
12 Nm (105 inch lbs.)
Middle bolts towards the outside in a crisscross pattern
Camshaft bolt
122 Nm (90 ft. lbs.)

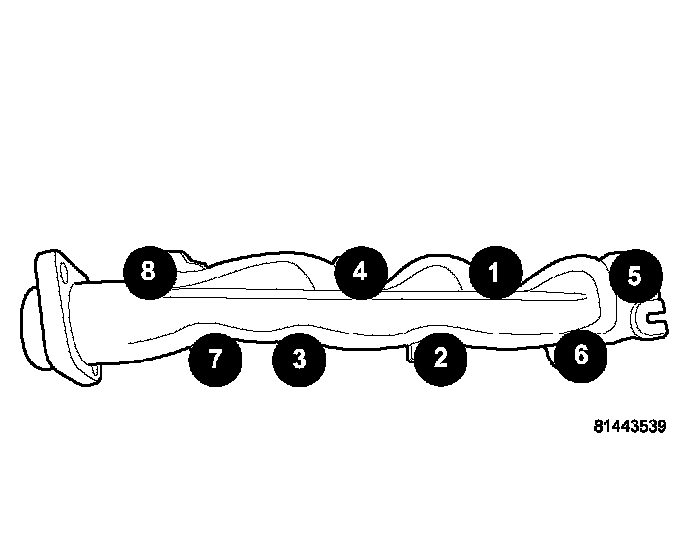

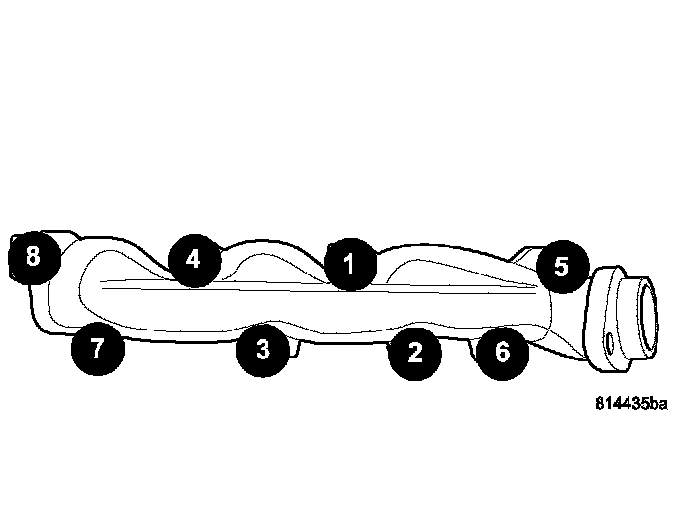

Exhaust Manifold to Cylinder Head
25 Nm (220 inch lbs.)
