Antenna: Service and Repair

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the radio.
3. Remove the glove box.
4. Remove the right side cowl trim.

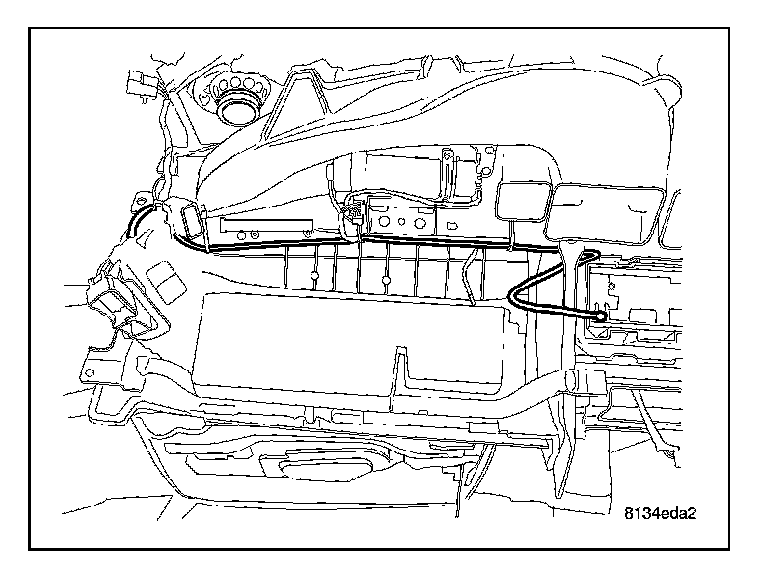

5. Disconnect antenna cable at right side cowl area.
6. Remove cable from instrument panel.

INSTALLATION




1. Install cable to instrument panel.

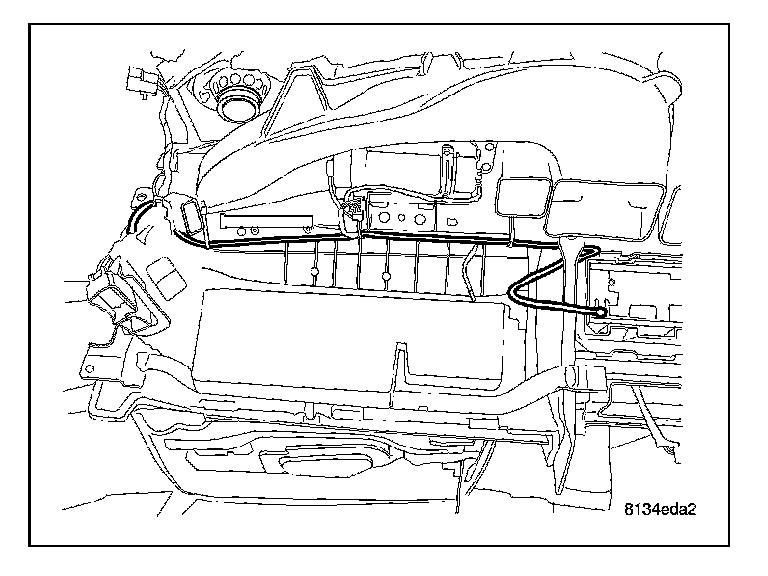

2. Connect antenna cable at right side cowl area.
3. Install the right side cowl trim.
4. Install the glove box.
5. Install the radio.
6. Connect the battery negative cable.
