Glove Box Latch Striker Replacement

REMOVAL

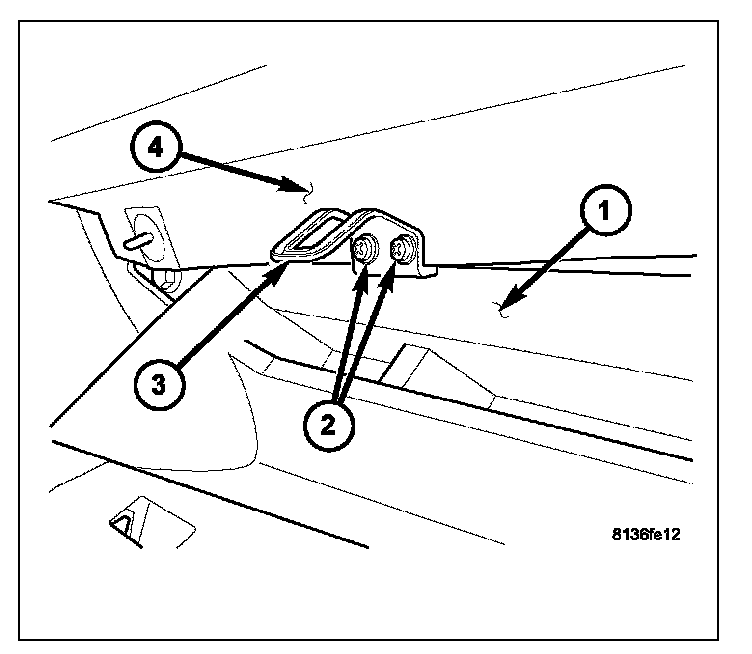

1. Open the glove box door (1).
2. Remove the two screws (2) that secure the glove box latch striker (3) to the instrument panel (4).
3. Remove the glove box latch striker from the instrument panel.

INSTALLATION

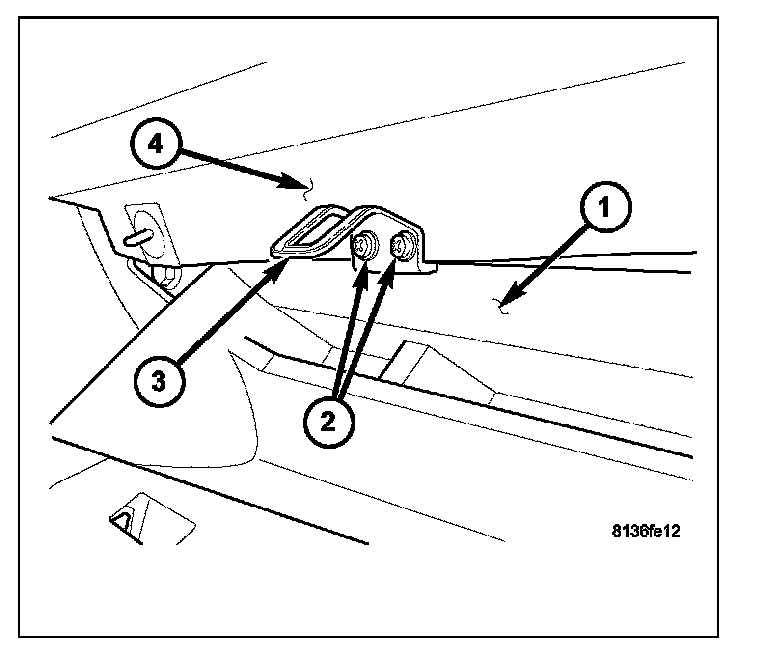

1. Position the glove box latch striker (3) onto the instrument panel (4).
2. Install the two screws (2) that secure the glove box latch striker onto the instrument panel. Tighten the screws securely.
3. Close glove box door (1).
