Cushion - Second Row

CUSHION/COVER-CUSHION - SECOND ROW

REMOVAL

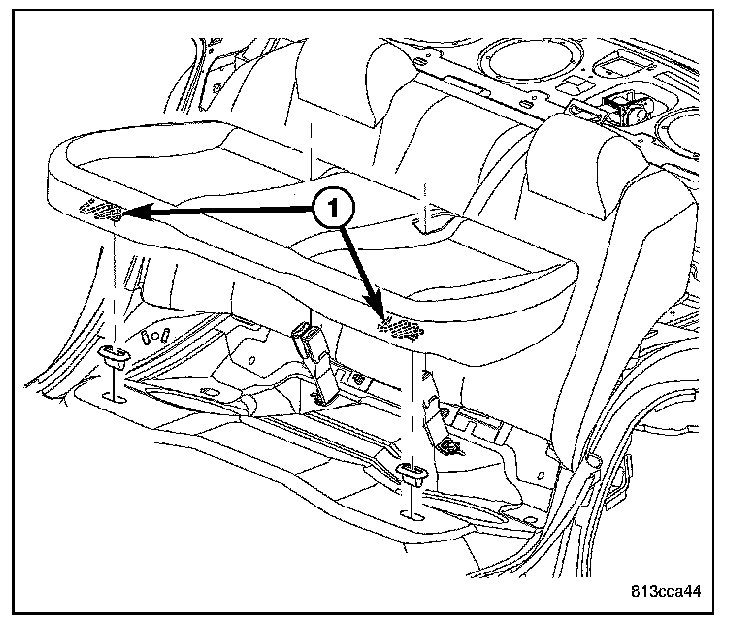

1. Pull upward at forward edge of cushion each retainer loop of the rear seat cushion to disengage retainer loops from cups in floor.
2. Remove rear seat cushion (4) from vehicle.




3. Disengage the J-straps attaching seat cover to the cushion.




4. Fold rear of the seat cover forward to uncover hog rings.

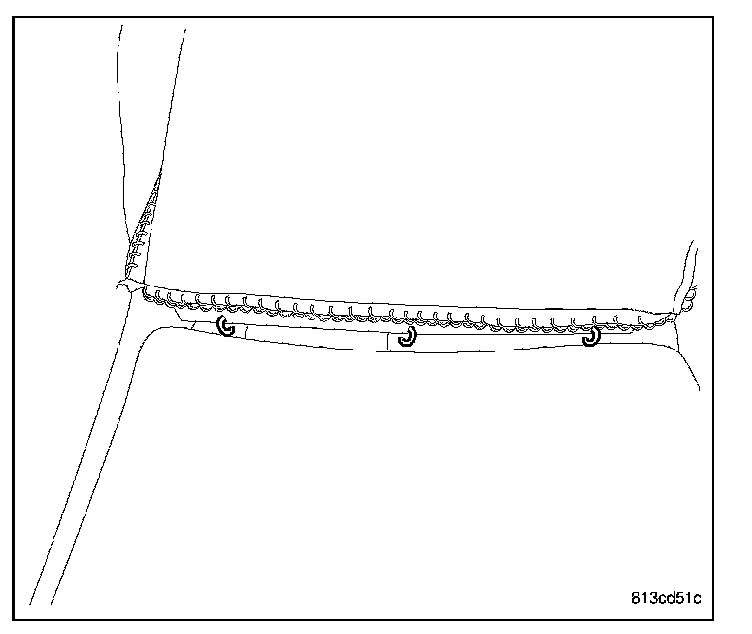

5. Start on the rear side of the cushion and cut hog rings.




6. Cut the hog rings on the outer side of the cushion.




7. Work around the outer edges and cut the hog rings.

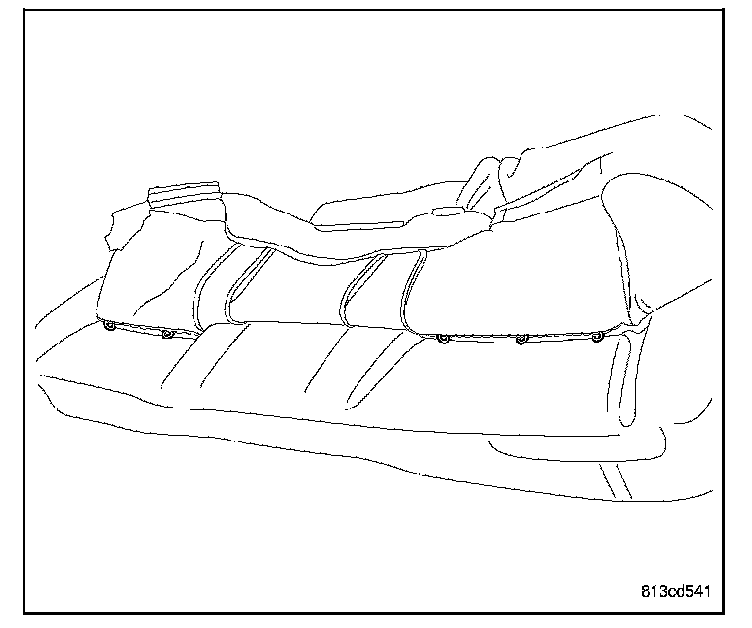

8. Fold cover up to access the inner hog rings and cut them.
9. Repeat operation on the other side of cushion.
10. Remove seat cushion cover from seat cushion.




11. If replacing cushion, remove the cushion support by cutting the hog rings attaching it to the foam and remove.

INSTALLATION




1. Install hog rings attaching cushion support, if remove.




2. Place seat cover into position on the foam.

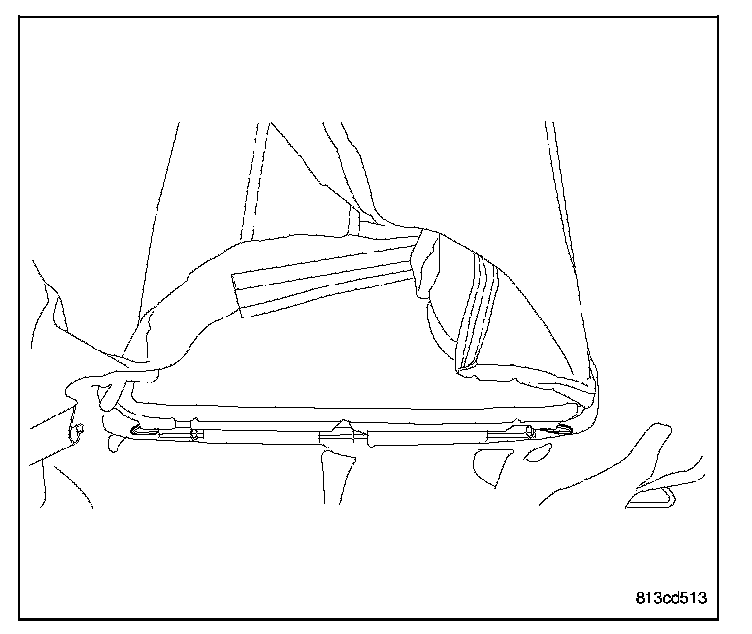

3. Install the attaching hog rings on the inner side of the seat cover and cushion.

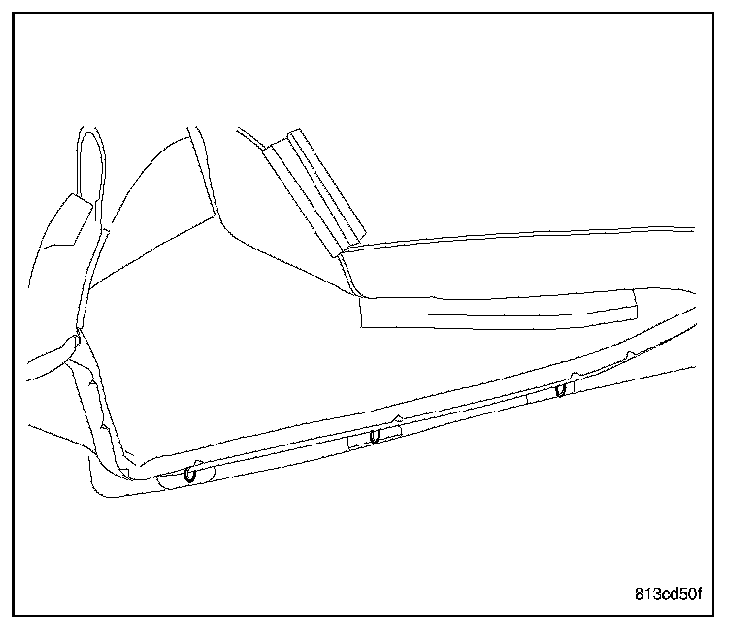

4. Install hog rings on the on the front side the seat cover.

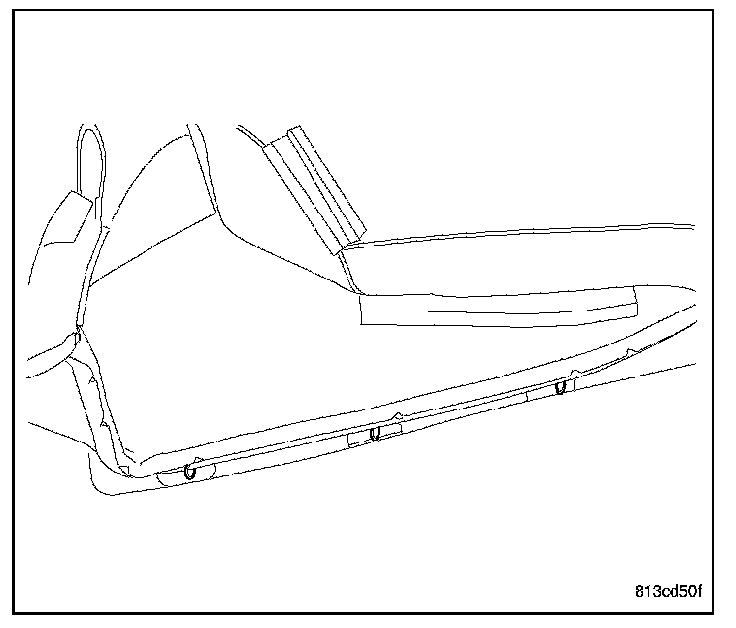

5. Install hog rings on the outer side of the seat cover. Check for seat cover wrinkles.

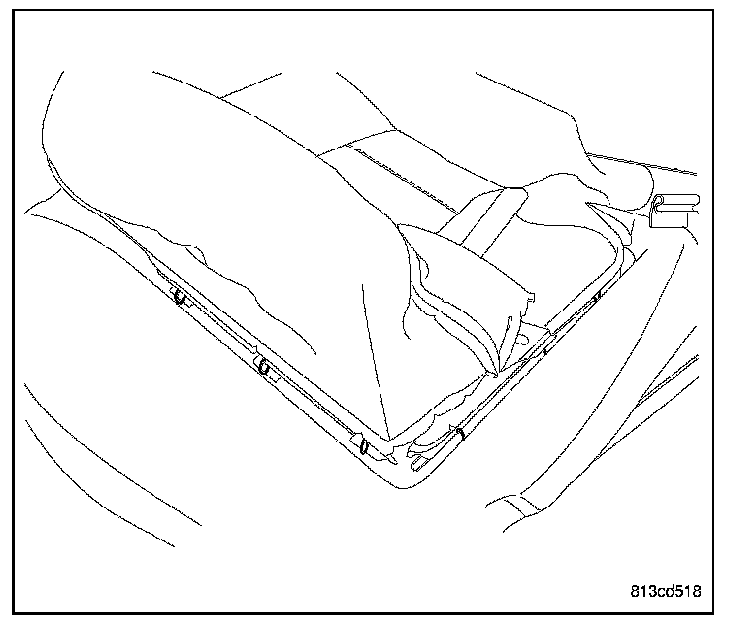

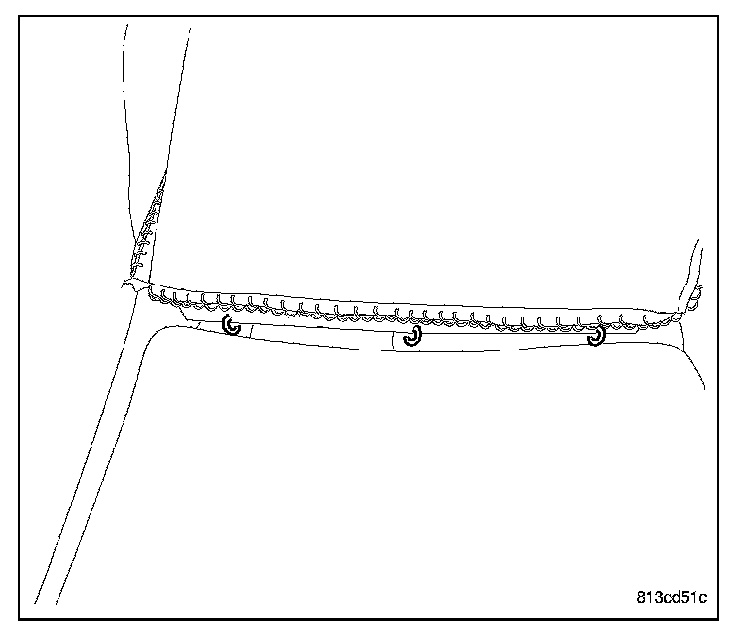

6. Install the hog rings on the rear side of seat cover.
7. Repeat the operation for the other side of cushion.




8. Position seat cover in to position on the foam and check for seat cover wrinkles.




9. Connect the J-straps, and smooth out seat cover.
10. Steam wrinkles from seat cushion, if necessary.

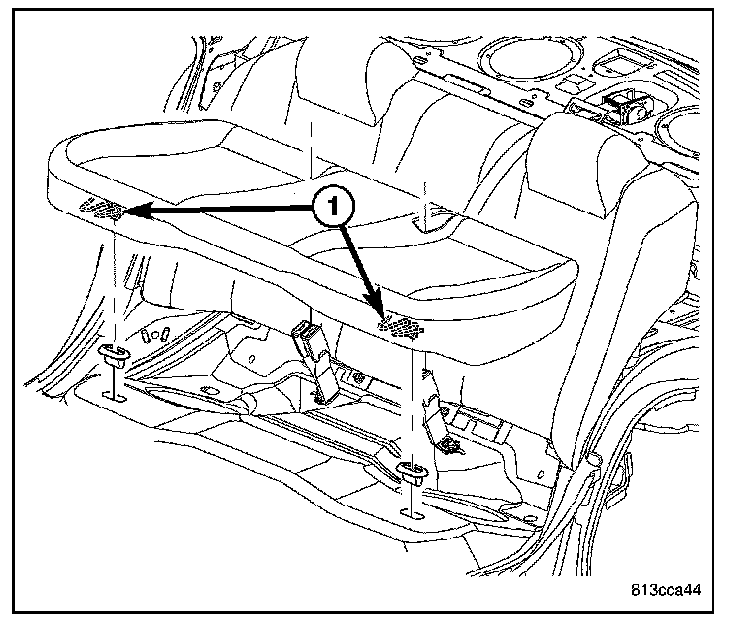

11. Place seat cushion (4) into position.
12. Engage retainer loops into cup on floor kick up.
13. Push downward at forward edge at each retainer loop of the rear seat cushion to engage retainers.
