Support-Lumber

SUPPORT-LUMBAR

REMOVAL




1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats / Service Precautions.
2. Remove the seat back cushion/cover.

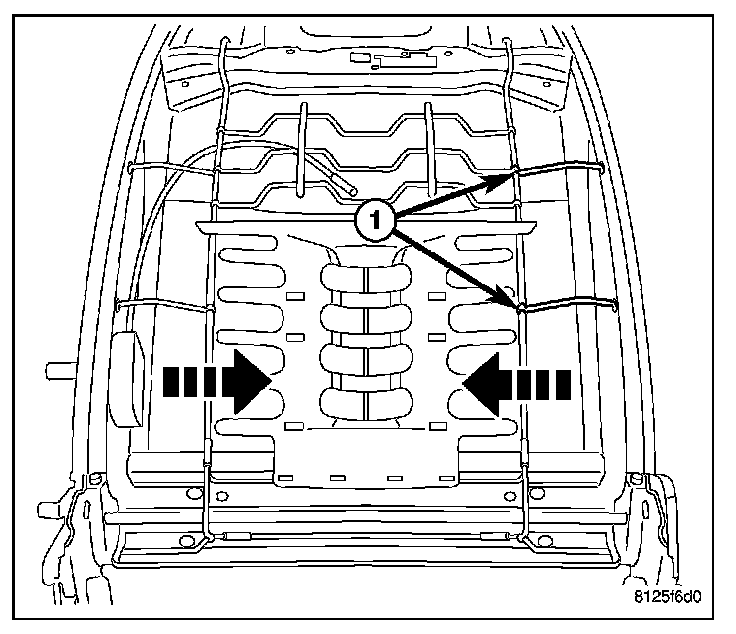

3. Release the lumbar mat side wires (1) by pulling out on the wire supports and then pulling them in.

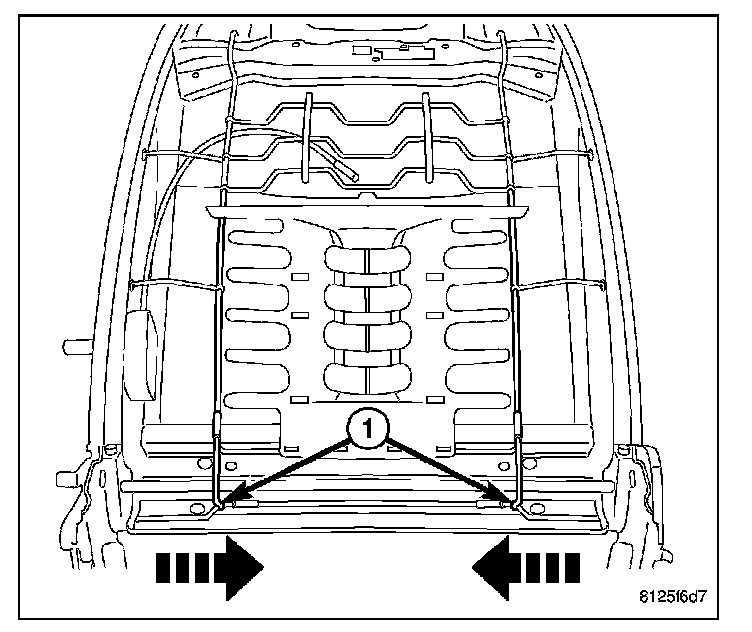

4. Squeeze the lower support wires (1) in and release the lower wires.

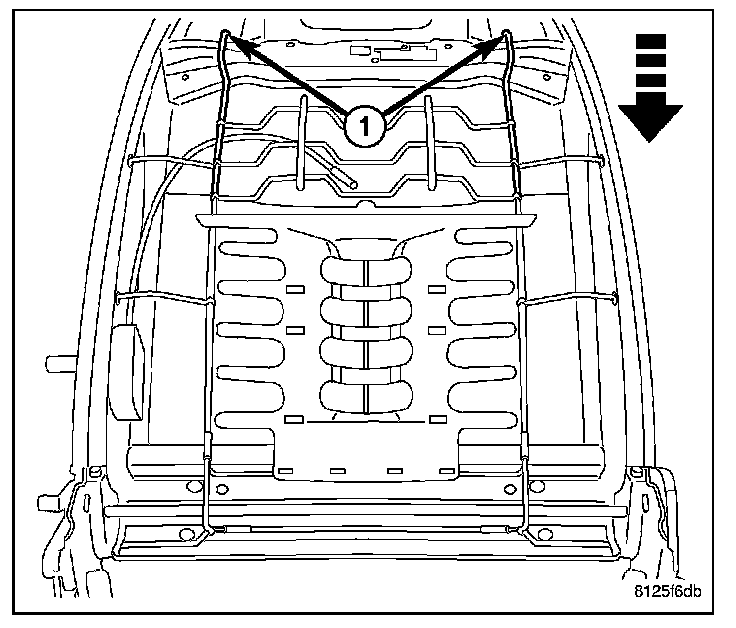

5. Pull the upper support wires (1) down and release the lumbar mat from the seat back frame.

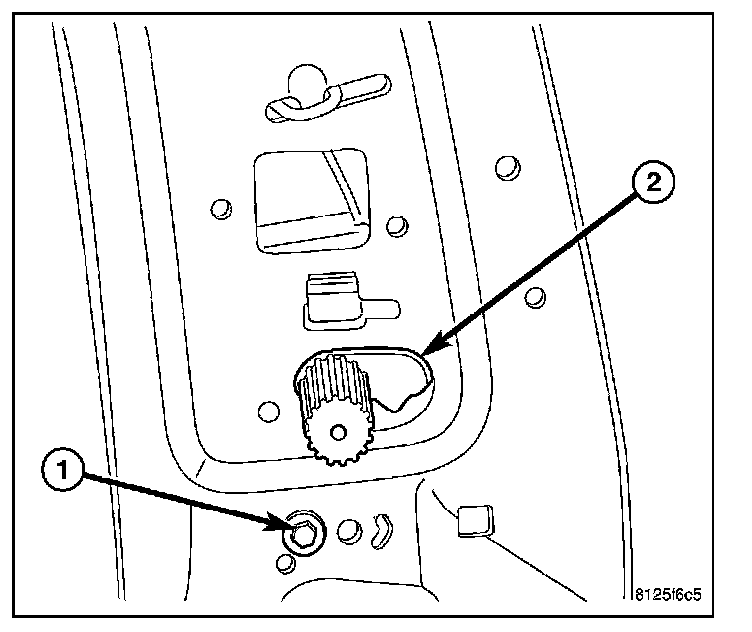

6. Remove the rivet (1) and remove the lumbar mechanism (2).

INSTALLATION




1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats / Service Precautions.

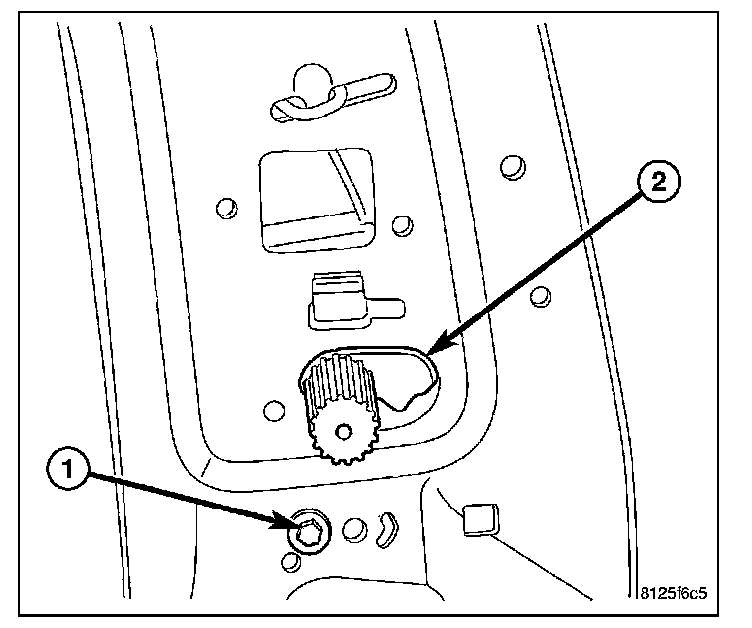

2. Install the lumbar mechanism (2) and install a new rivet (1).




3. Place lumbar mat onto seat back frame and insert the upper support wires (1) into the frame.

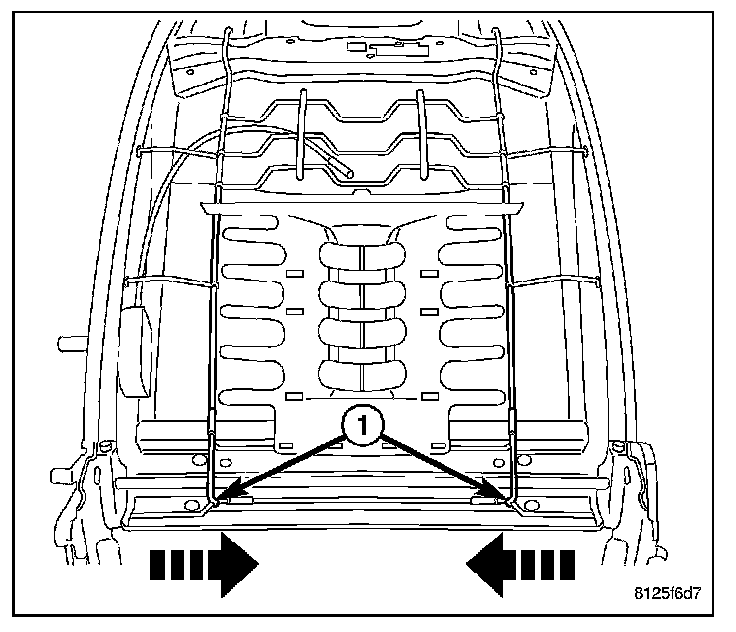

4. Squeeze the lower support wires (1) together and insert into the lower frame.

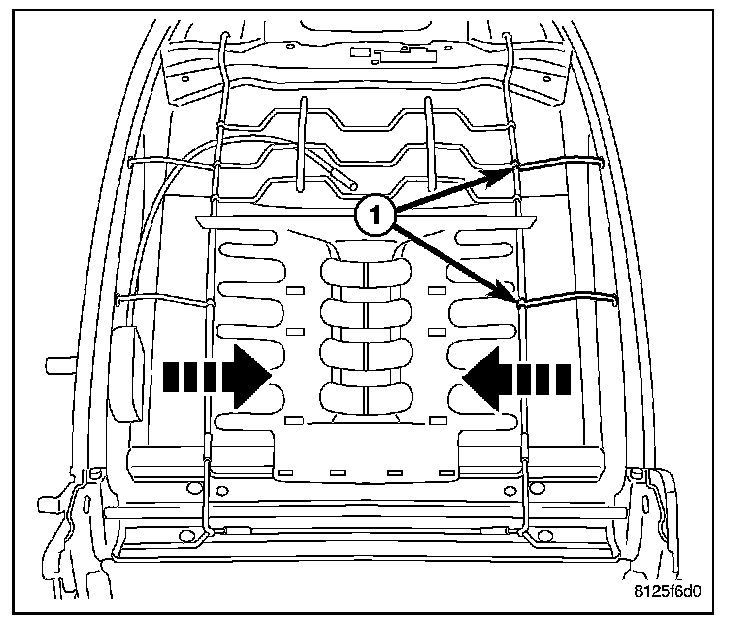

5. Squeeze the side support wires together and insert them into the sides of the seat back frame.
6. Install the seat back cushion/cover.
