Charger SRT-8 V8-6.1L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 6
Figure 6

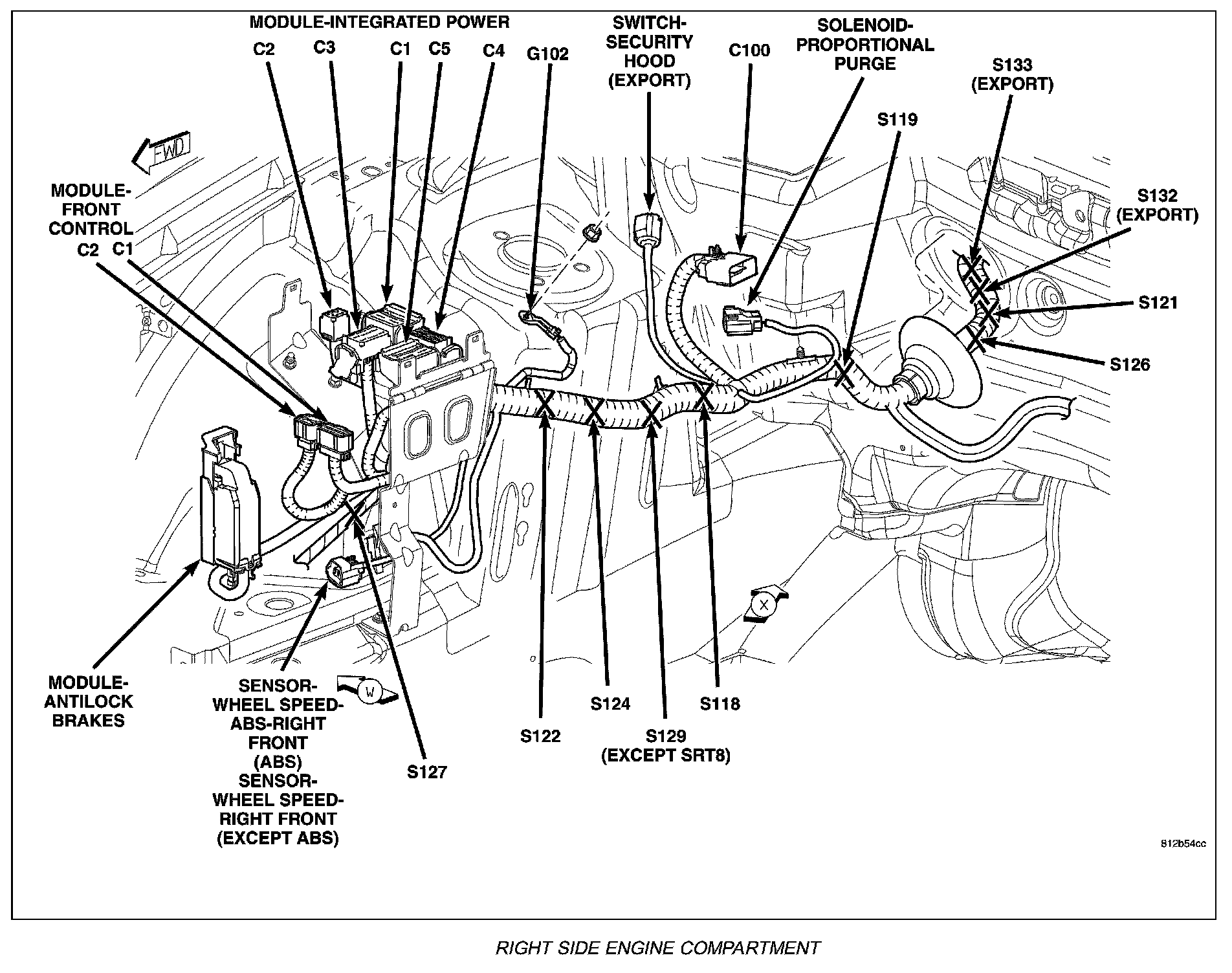

Right Side Engine Compartment:
Integrated Power Module:
