Air Cleaner Housing: Service and Repair

AIR INTAKE SYSTEM

REMOVAL
Housing Assembly

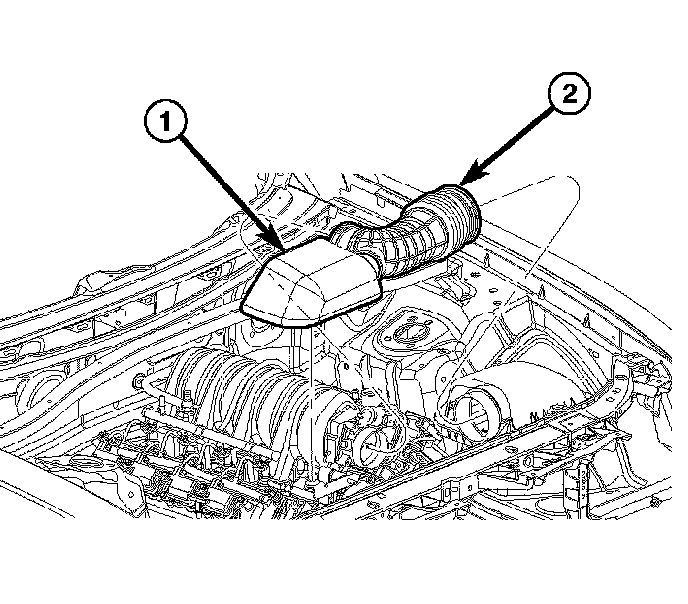

1. Loosen clamp and disconnect air duct at air cleaner cover (2).

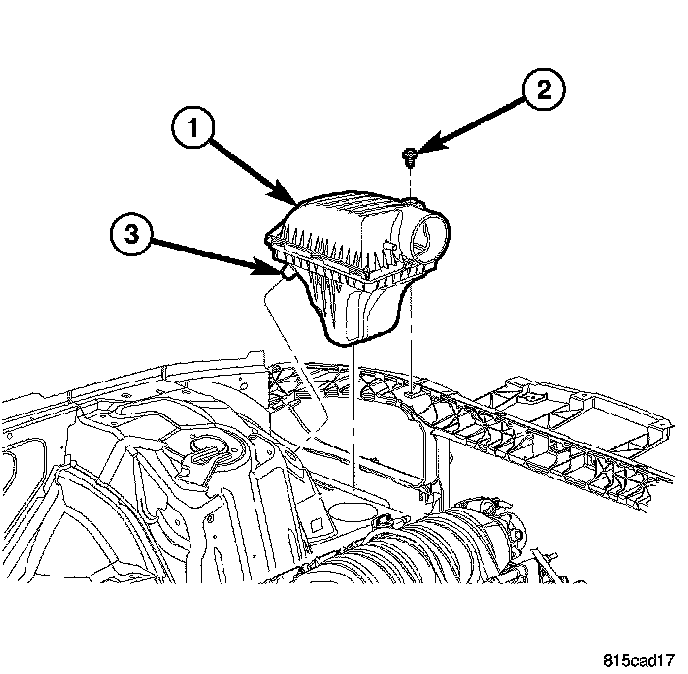

2. Lift entire housing (1) assembly from the locating pin (3).

INSTALLATION





1. Install filter element into housing.

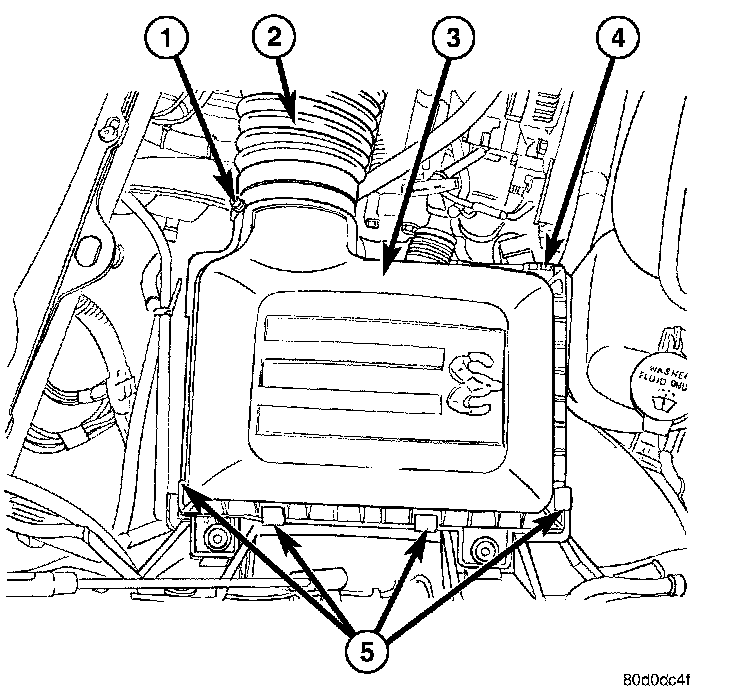

2. Position housing cover into housing locating tabs (4).
3. Pry up 4 spring clips(5) and lock cover to housing.

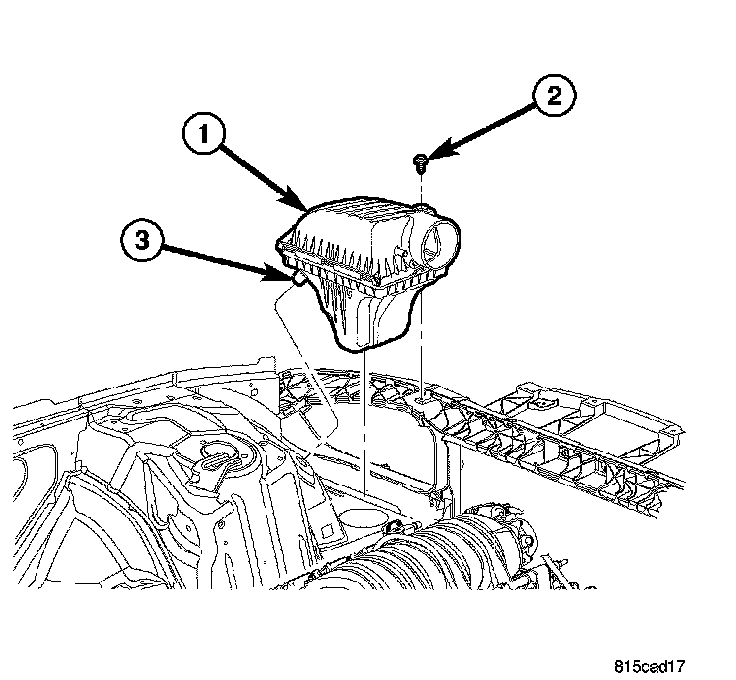

4. Install the air filter housing (1) into locating pin (3).
5. Install the hold down bolt (2) into the air filter housing (1).

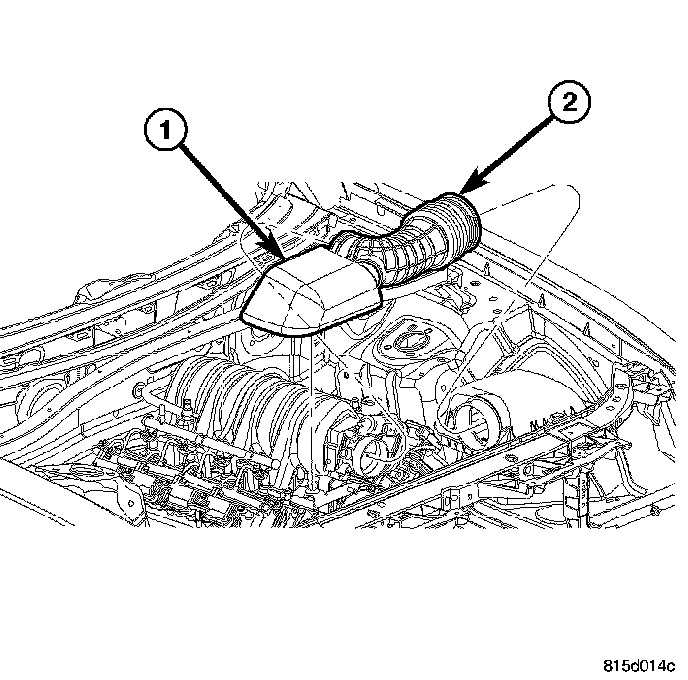

6. Install air duct (2) to air cleaner cover and tighten hose clamp to 3 Nm (30 inch lbs.) torque.
7. If any other hose clamps were removed from air intake system, tighten them to 3.4 Nm (30 inch lbs.) torque.
