Integrated Power Module (IPM)

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

REMOVAL

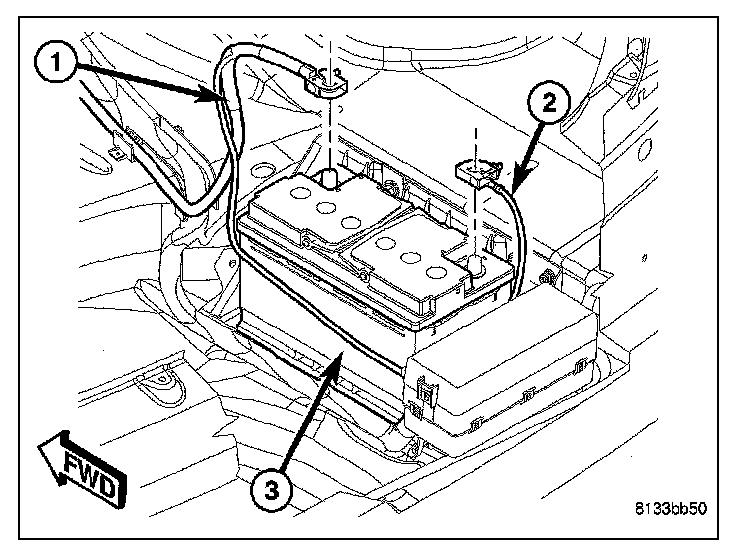

1. Disconnect and isolate the battery negative cable (2).




2. Open the battery cable nut cover to expose nut.

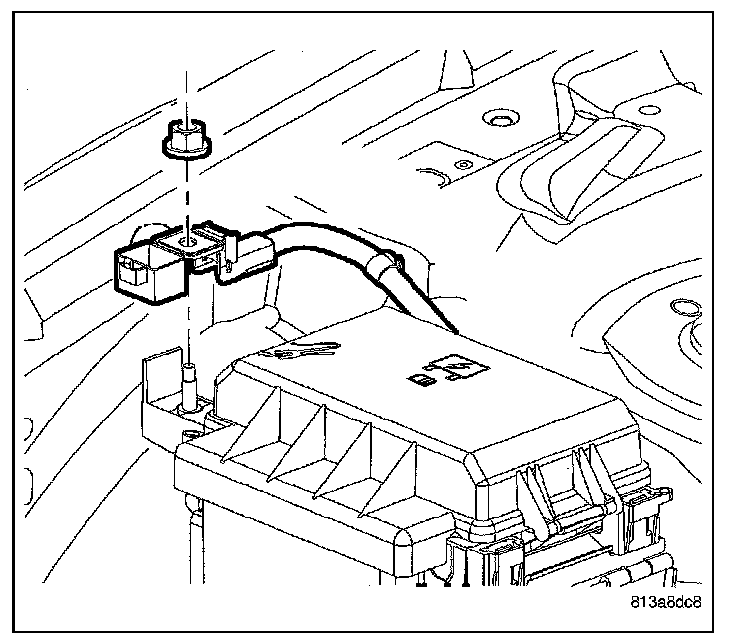

3. Remove battery cable nut and battery cable from the Integrated Power Module (IPM).




4. Disengage the outboard retaining clip, and rotate the IPM to access wire harness connectors.

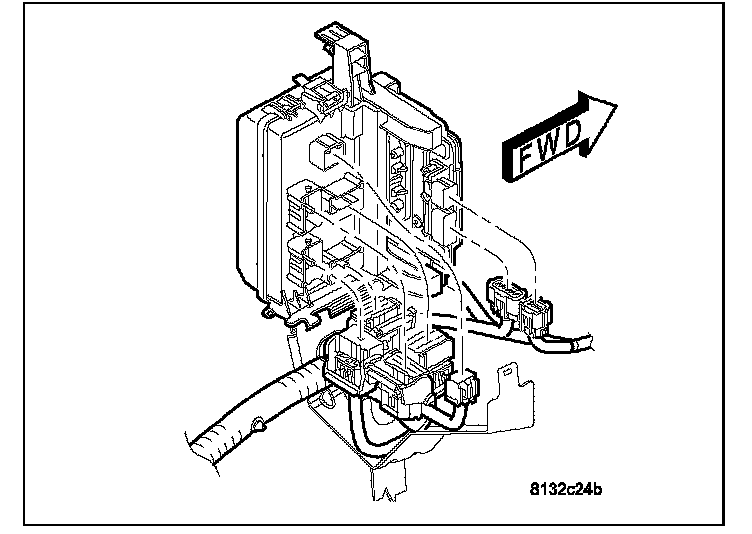

5. Disconnect wire harness connectors from IPM.
6. Disengage the two inboard retaining clips.




7. Remove IPM from vehicle.

INSTALLATION

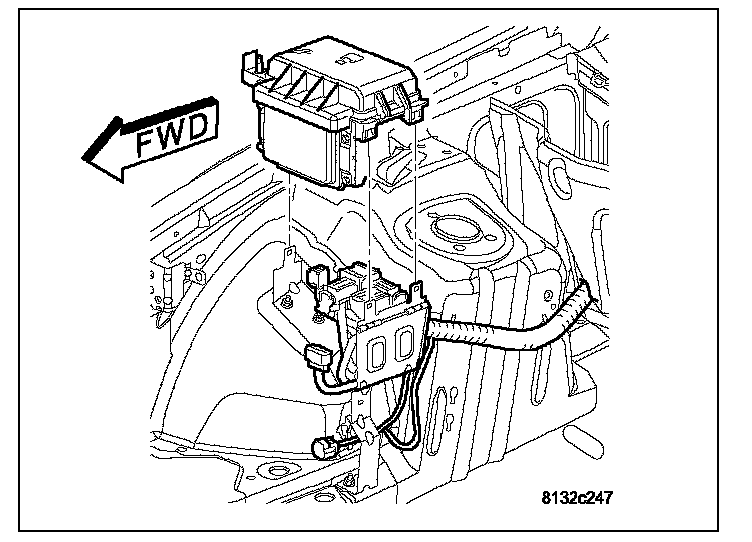

1. Position Integrated Power Module (IPM) to vehicle. Engage the three retaining clips.




2. Disengage the outboard retaining clip and rotate the IPM to access wire harness connectors.

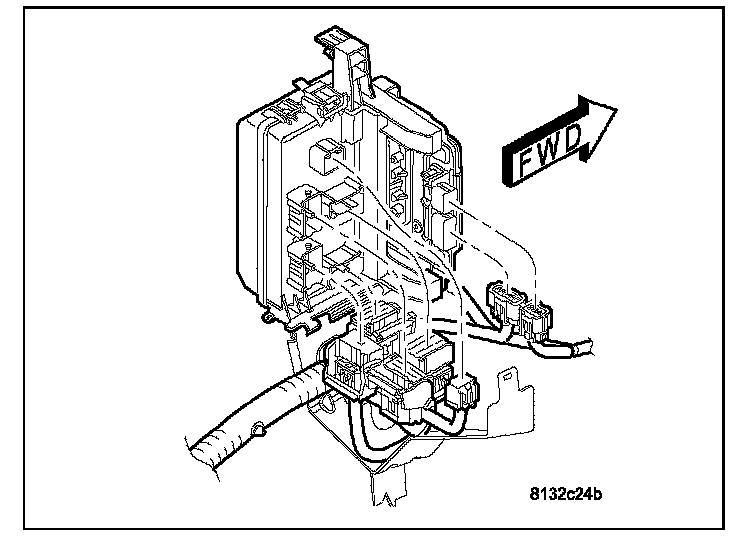

3. Connect electrical harness connectors to IPM.




4. Connect battery cable to IPM.
5. Install and tighten retaining nut.
6. Close the battery cable nut cover.

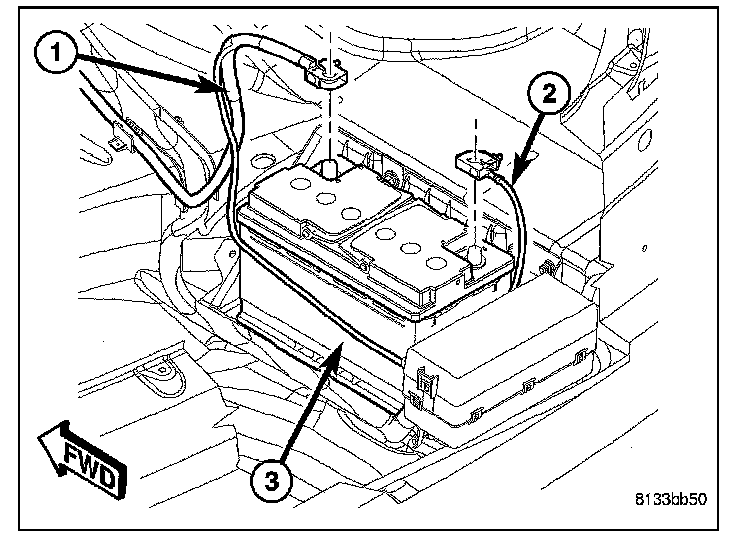

7. Connect battery negative cable (2).
