Rear
SEAT BELT AND RETRACTORREAR - SEDAN
REMOVAL
1. Remove the lower seat belt anchor (2) bolt (3).
2. Remove the upper C-pillar trim panel.
3. Remove the one upper turning loop retaining bolt (2).
4. Remove the one seat belt retractor (4) mounting bolt (3).
5. Pull retractor inboard and drop down to release tabs from slots.
INSTALLATION
1. Position the retractor (4) on the C-pillar to the indexing tab slips up into the pillar.
2. Install the retractor mounting bolt (3). Torque bolt to 32 N.m (24 ft. lbs.).
3. Install the one upper turning loop retaining bolt (2). Torque bolt to 40 N.m (30 ft. lbs.).
4. Install the upper C-pillar trim panel.
5. Install the lower seat belt anchor (2) bolt (3). Torque bolt to 32 N.m (24 ft. lbs.).

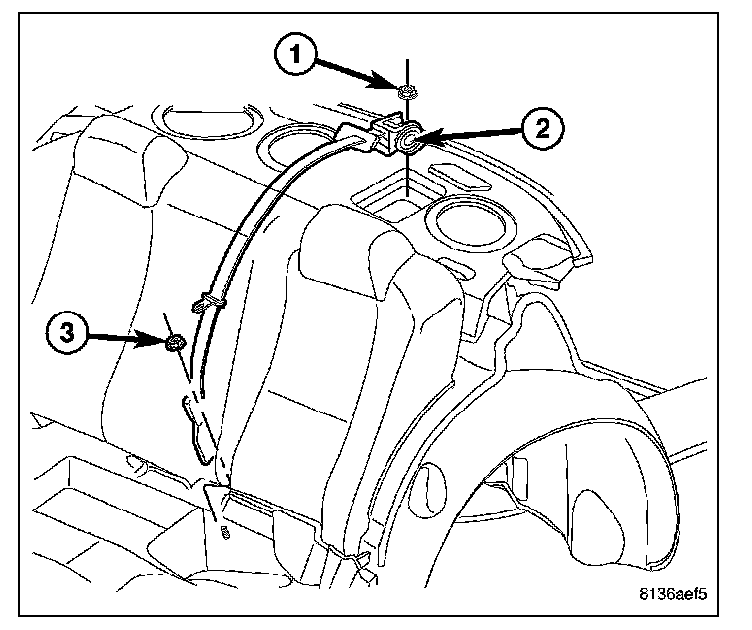

REAR CENTER - SEDAN
REMOVAL
1. Remove the rear seat cushion.
2. Remove the one nut (3) to the seat belt lower anchor.
3. Remove the rear shelf trim panel.
4. Remove the one retaining nut (1) to the center seat belt retractor (2).
INSTALLATION
1. Place the rear center retractor (2) into position and install the one retaining nut (1). Torque nut to 34 N.m (25 ft. lbs.).
2. Install the rear shelf trim panel.
3. Install the one nut (3) to the seat belt lower anchor. Torque nut to 34 N.m (25 ft. lbs.).
4. Install the rear seat cushion.
