All Wheel Drive
PAN-ENGINE OIL-AWDREMOVAL
1. Disconnect the negative battery cable.
2. Remove the engine cover (1).
3. Remove the intake manifold.
4. Install engine lift fixture (2) special tool # 8984 and adapter # 8984-UPD. Never use air tools when installing fasteners to engine.
5. Raise vehicle.

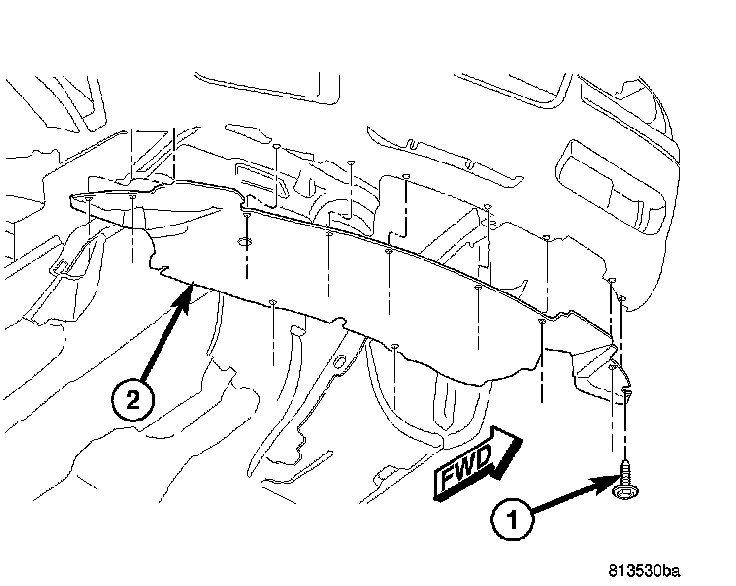

6. Remove the belly pan (2).
7. Remove both left and right side engine mount to frame fasteners.
8. Drain engine oil and remove the oil filter.
9. Unbolt (2,3,4) and lower the steering rack (1) from the mounts. Do not remove P/S hoses, tie rod ends or disconnect steering column.
10. Remove the engine oil dipstick and tube from the oil pan.
11. Remove the left and right side exhaust at the manifolds.
12. Mark the front driveshaft to the flange at both ends to ensure correct installation.
13. Remove front drive shaft fasteners from the differential and transfer case. Remove the driveshaft from the vehicle.
14. Remove the left (2) and right front drive axles.
15. Remove the differential support bracket (1) from the differential to the engine block.
16. Unbolt the differential (4) from the oil pan (3).
17. Rotate the differential (4) so the drive flange is facing forward and the oil pan side is facing up. Remove the differential out through the opening at the rear of the cradle.
18. Remove the intermediate shaft (2) from the oil pan (3).
19. Lower the vehicle.
20. Install engine support fixture special tool # 8534. Do not attempt to fasten fixture to vehicle body, or attach the third support leg to the radiator support.
21. Raise engine using special tool # 8534 and #8984 to provide clearance to remove oil pan.
22. Raise vehicle.
NOTE: Do not pry on oil pan or oil pan gasket. Gasket is integral to engine windage tray and does not come out with oil pan.
NOTE: The horizontal M10 fasteners are 5 mm longer in length, and must be reinstalled in original locations.
23. Remove the M10 fasteners (vertical and horizontal) from the rear of the oil pan to the transmission and engine.
24. Remove the oil pan mounting bolts and oil pan.
NOTE: When the oil pan is removed, a new oil pan gasket/windage tray assembly must be installed. The old gasket cannot be reused.
25. Discard the integral windage tray and gasket and replace.
INSTALLATION
1. Clean the oil pan gasket mating surface of the block and oil pan.
NOTE: Mopar Engine RTV must be applied to the 4 T-joints, (area where front cover, rear retainer, block, and oil pan gasket meet). The bead of RTV should cover the bottom of the gasket. This area is approximately 4.5 mm x 25 mm in each of the 4 T-joint locations.
2. Apply Mopar Engine RTV at the 4 T- joints (1,2).
NOTE: When the oil pan is removed, a new oil pan gasket/windage tray assembly must be installed. The old gasket cannot be reused.
3. Install a new oil pan gasket/windage tray assembly.
4. If removed, reinstall the oil pump pickup tube with new O-ring. Tighten tube to pump fasteners to 28 Nm (250 inch lbs.).
NOTE: The horizontal M10 fasteners are 5 mm longer in length, and must be reinstalled in original locations.
NOTE: New M6 fasteners must be used when reinstalling the oil pan. Do not reuse the old M6 fasteners.
5. Align the rear of the oil pan with the rear face of the engine block, and install the M10 and M6 oil pan fasteners finger tight. Using the following torque sequence, torque the M6 mounting bolts to 5 Nm (44 inch lbs.).
6. Using the following torque sequence, torque the M10 oil pan fasteners to 54 Nm (39 ft. lbs.).
7. Using the following torque sequence, torque the M6 oil pan fasteners to 12 Nm (106 inch lbs.).
8. Install the intermediate shaft (2) to the oil pan (3). Torque fasteners to 28 Nm (21 ft. lbs).
9. Install the front differential through the opening at the rear of the cradle, and attach to the oil pan..
10. Fasten the differential (4) to the oil pan (3) Torque to 65 Nm (48 ft. lbs).
11. Install the differential support bracket (1) to the differential and the engine block.
12. Install the left (2) and right front drive axles.
13. Install front drive shaft into the differential and transfer case.
14. Install the engine oil dipstick and tube.
15. Install the steering gear (1).
16. Lower the engine into mounts using special tool # 8534.
17. Install both the left and right side engine mount studs and nuts.
18. Remove special tool # 8534.
19. Remove special tool # 8984 (2,4).
20. Install the intake manifold.
21. Install the left and right side exhaust at the manifolds.
22. Fill engine oil.
23. Install oil filter, if removed.
24. Reconnect the negative battery cable.
25. Start engine and check for leaks.
26. Install the engine cover (1).
27. Install the belly pan (2).
