Front Control Module (FCM)

MODULE-FRONT CONTROL

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the Integrated Power Module (IPM) from the engine compartment.

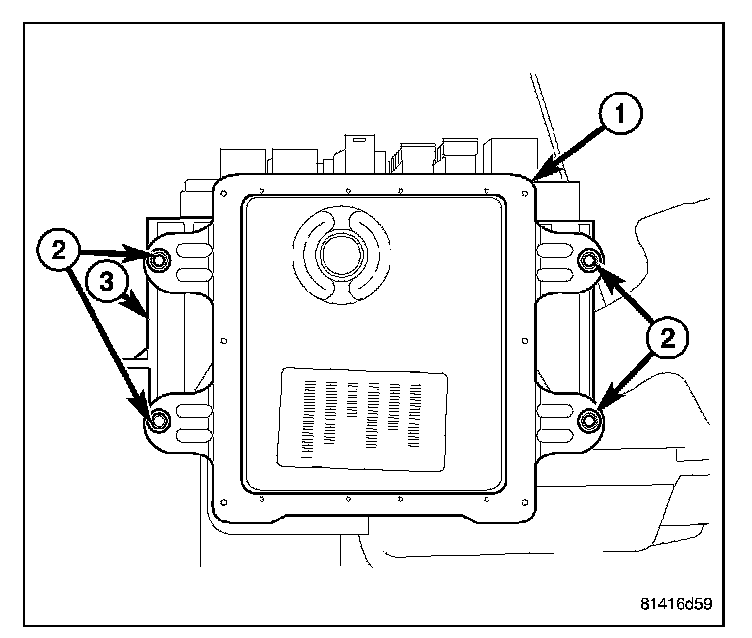

3. Remove the four fasteners (2) securing the Front Control Module (FCM) (1) to the Power Distribution Center (PDC) (3).
4. Separate the FCM from the PDC by pulling the two straight away from each other to disengage the electrical connector.

INSTALLATION

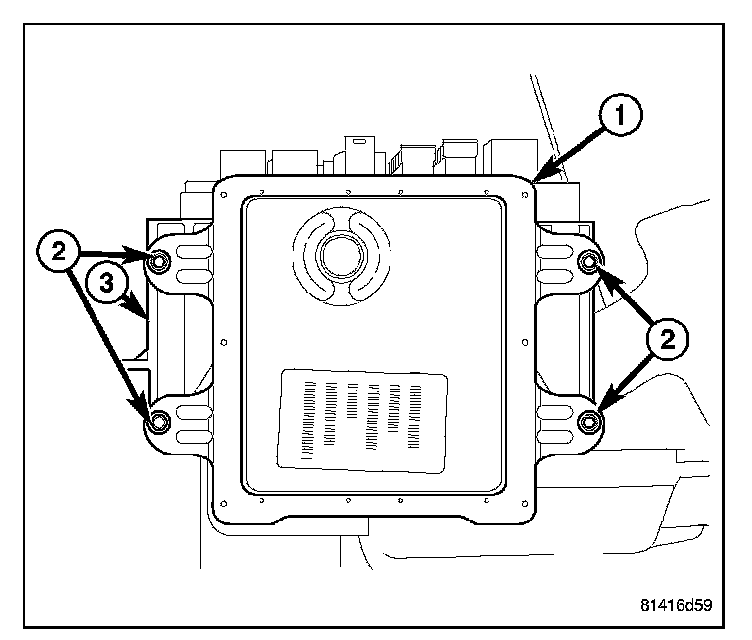

1. Connect the Power Distribution Center (PDC) (3) to the Front Control Module (FCM) by lining up the electrical connector and pushing the two together.
2. Install the four fasteners (2) securing the FCM (1) to the PDC (3).
3. Install the Integrated Power Module (IPM).
4. Connect the battery negative cable.
