Radio/Stereo: Service and Repair

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center bezel.

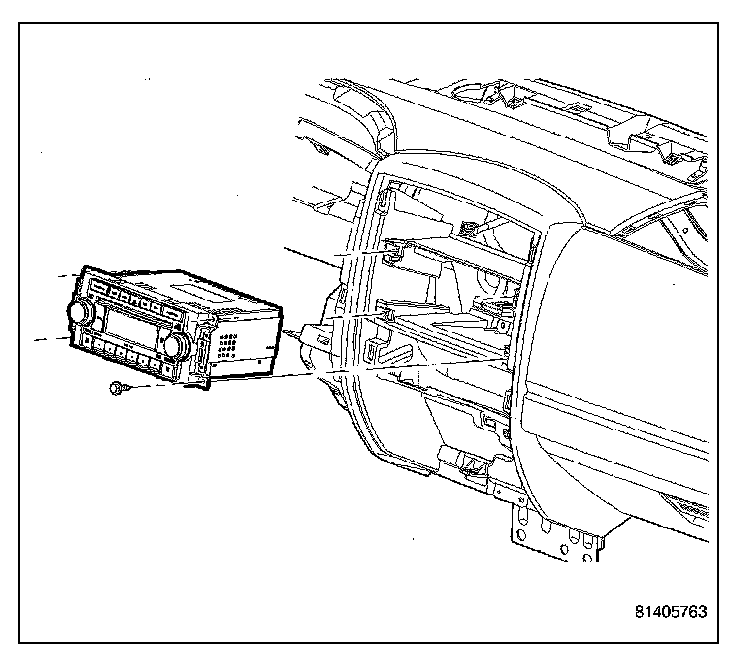

3. Remove the radio mounting fasteners.

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

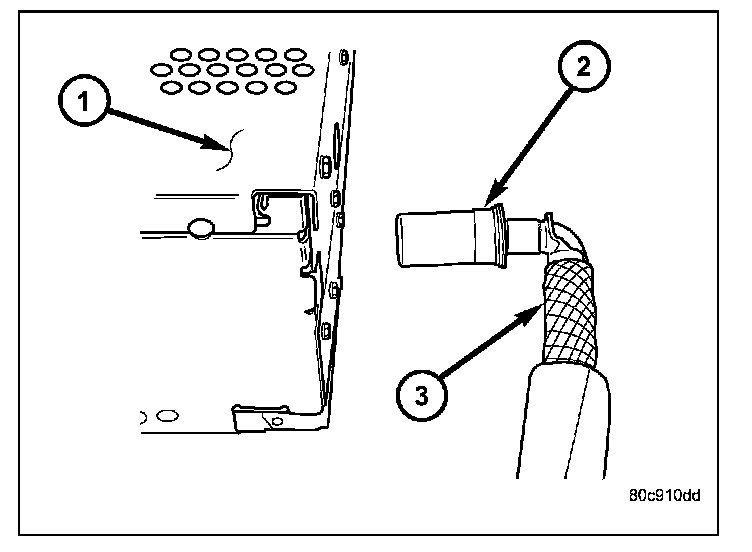

4. Disconnect the antenna cable (3) by pulling the locking antenna connector (2) away from the radio (1).

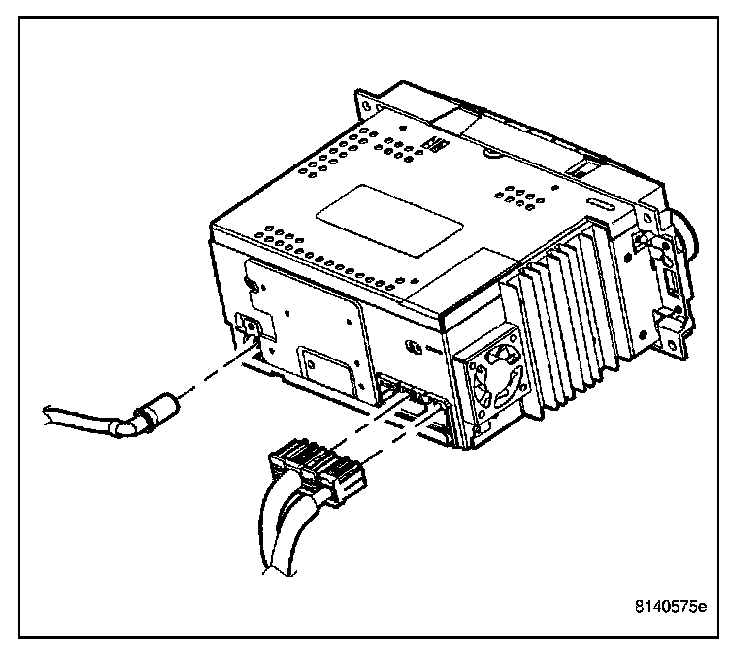

5. Disconnect the electrical harness connector and remove radio.

INSTALLATION




1. Connect the antenna cable (3) to radio.




2. Connect the electrical harness connector to the radio.




3. Position radio to instrument panel. Install and tighten mounting fasteners.
4. Install instrument panel center bezel.
