Seal-Adapter Housing

SEAL-ADAPTER HOUSING

REMOVAL
1. Remove the transfer case from the transmission.
2. Using a screw mounted on a slide hammer, remove the adapter housing seal.

INSTALLATION





1. Clean the adapter seal bore in the adapter housing of any residue or particles remaining from the original seal.

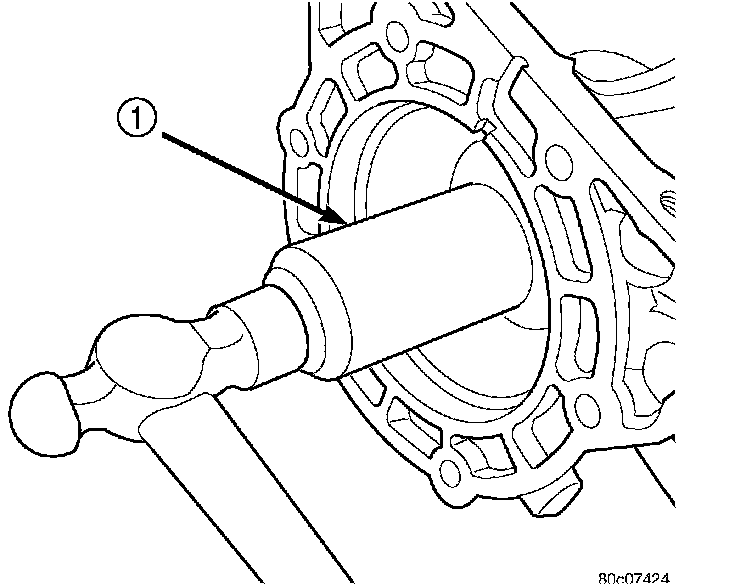

2. Install new oil seal in the adapter housing using Seal Installer C-3860-A (1) . A properly installed seal is flush to the face of the seal bore.
3. Install the transfer case onto the transmission.
