Fluid Pressure Sensor/Switch, A/T

Assembly Line Pressure Sensor/Variable Force:

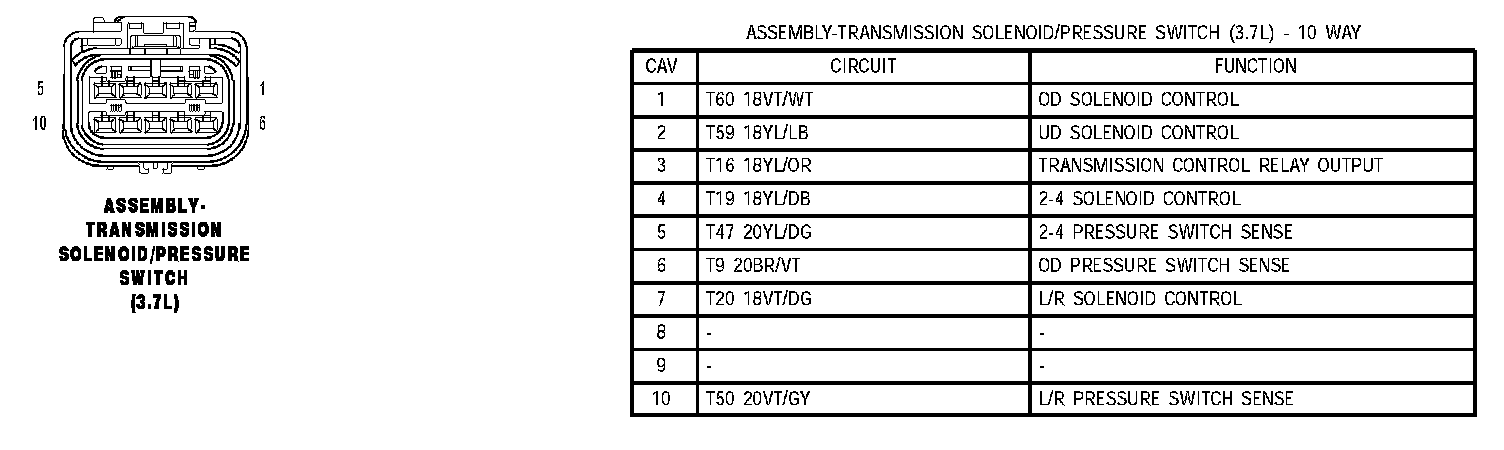

Assembly Transmission Solenoid/Pressure Switch (3.7L):
