System Specifications

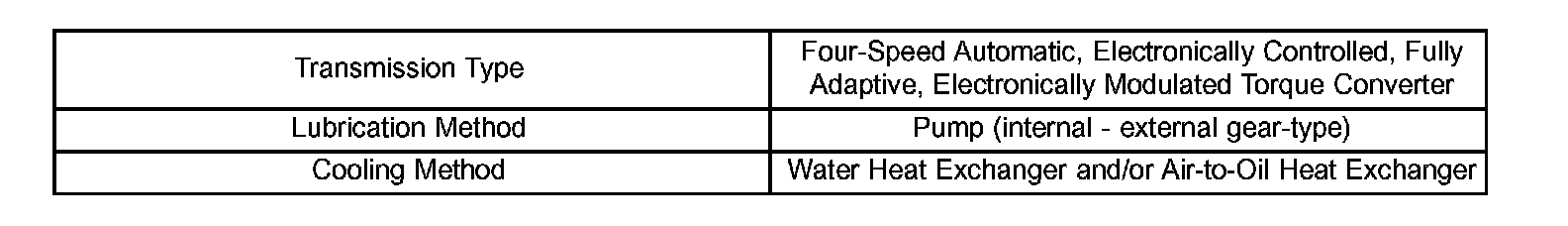

GENERAL SPECIFICATIONS:

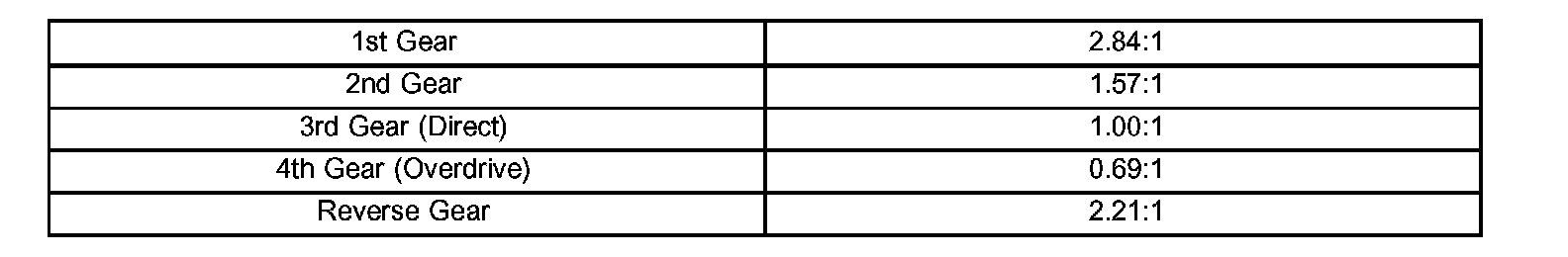

GEAR RATIOS:

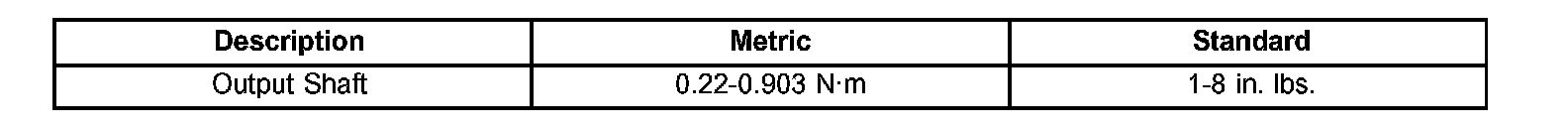

BEARING PRELOAD (Drag Torque):

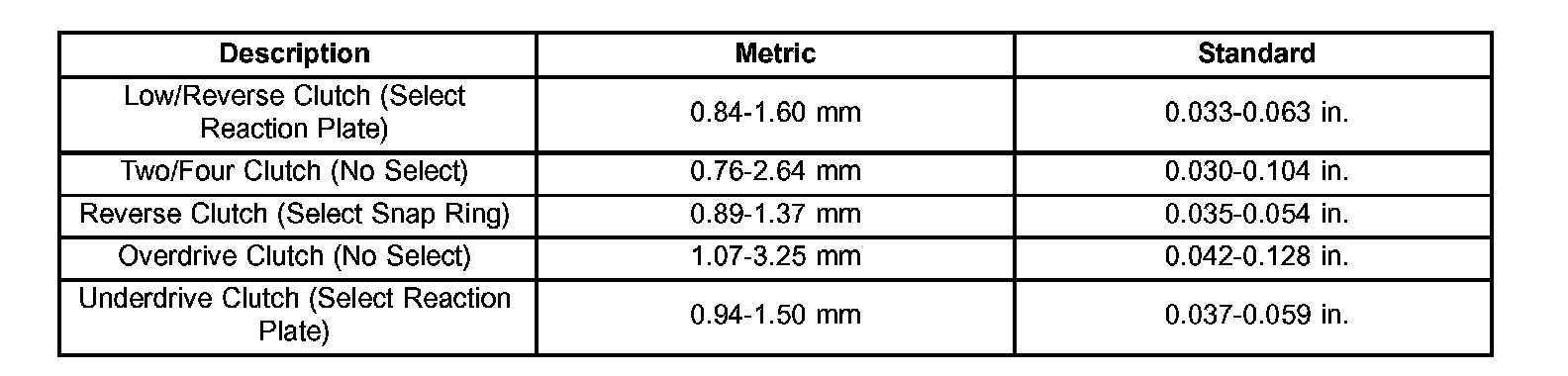

CLUTCH PACK:

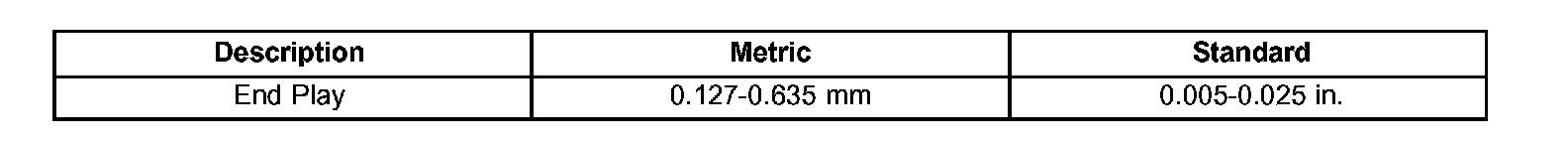

INPUT SHAFT:

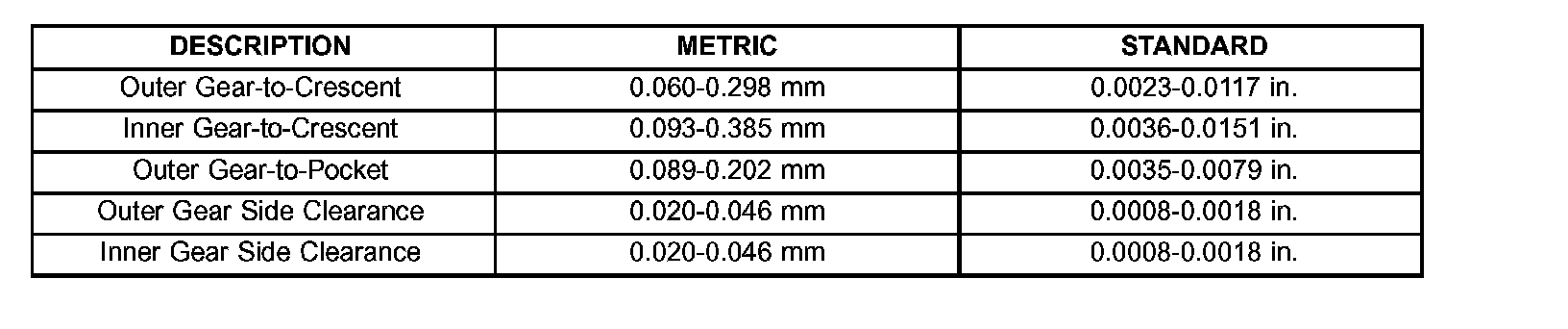

OIL PUMP CLEARANCES:

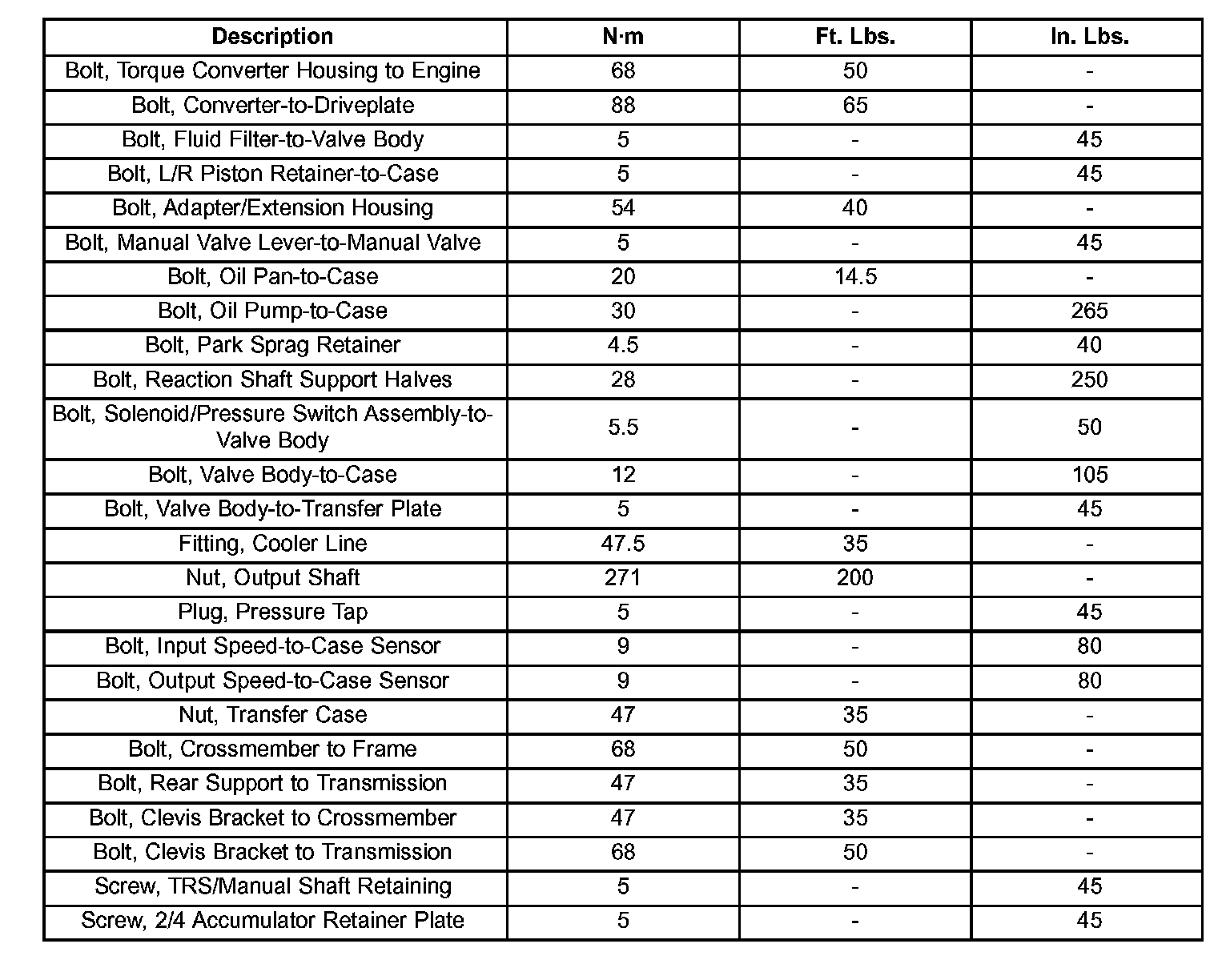

TORQUE SPECIFICATIONS:
