Cylinder Head Assembly

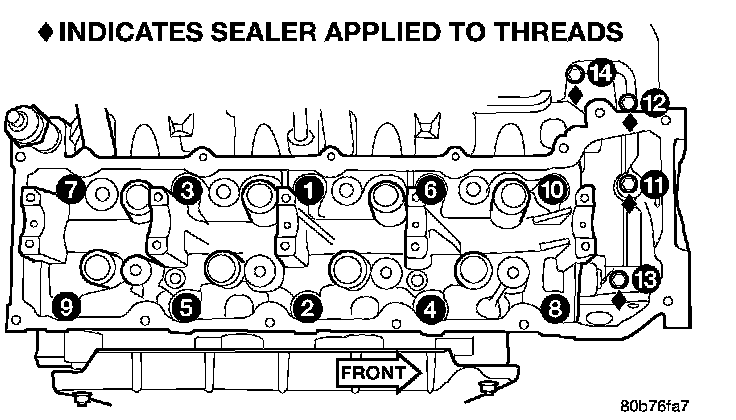

Step 1: Tighten bolts 1-10 20 Nm (15 ft. lbs.)
Step 2: Tighten bolts 1-10 47 Nm (35 ft. lbs.)
Tighten bolts 11-14 25 Nm (18 ft. lbs.)
Step 3: Tighten bolts 1-10 90 degrees
Tighten bolts 11-14 30 Nm (22 ft. lbs.)

The bolts must be examined BEFORE reuse. If the threads are necked down the bolts should be replaced.





Intake Manifold-Bolts 12 Nm (105 inch lbs.)

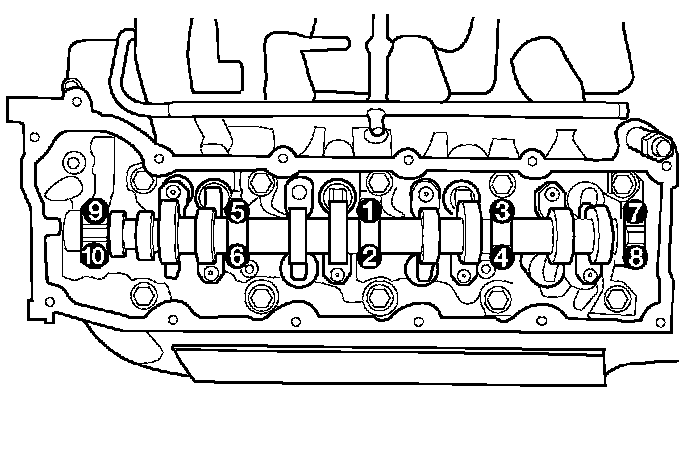

Cam Bearing Cap Bolts 11 Nm (100 inch lbs.)
Non - Oiled Sprocket Bolt 122 Nm (90 ft. lbs.)

Exhaust Manifold-Bolts 25 Nm (18 ft. lbs.)
Starting at center and working outward
