C-Pillar Trim
PANEL-C PILLAR TRIMREMOVAL
1. Remove the quarter glass trim panel. Refer to Quarter Window Glass.
2. Unsnap the upper edge of the trim cover (3) from the second row outboard seat belt turning loop (1) and disengage the tab (2) on the lower edge of the cover to access the turning loop screw.

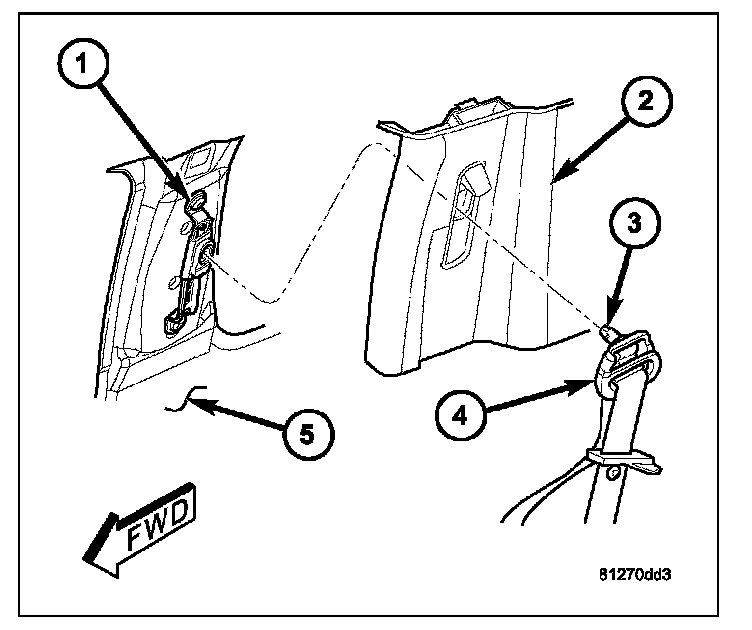

3. Remove the screw (3) that secures the seat belt turning loop (4) to the height adjuster (1) on the upper C-pillar (5).
4. Remove the screw (3).
5. Using a trim stick C-4755 or equivalent, separate the bottom edge of the trim (2) from the pillar and remove off of the upper locating tab (1).
INSTALLATION
1. Position the upper trim panel tab (1) into the C-pillar and seat the lower side of the trim fully.
2. Install the screw (3).
3. Position the seat belt turning loop (4) to the height adjuster (1).
4. Install the screw (3) and tighten the to 39 N.m (29 ft.lbs.).
5. Engage the tab (2) on the lower edge of the trim cover (3) in the slot below the screw in the turning loop (1). Then press the upper edge of the trim cover over the top of the turning loop until it snaps into place.
