Passenger Side

REMOVAL

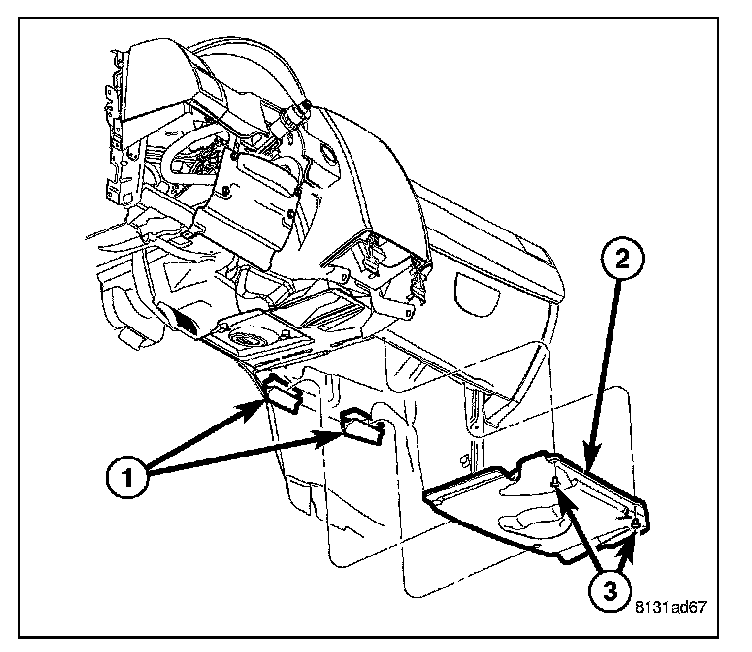

1. Remove the two push-pins (3) that secure the instrument panel silencer (2) to the instrument panel.
2. Pull the instrument panel silencer rearward to disengage it from the brackets (1) located near the dash panel.
3. Remove the instrument panel silencer from the vehicle.

INSTALLATION




1. Position the instrument panel silencer (2) into the vehicle.
2. Install the instrument panel silencer above the brackets (1) located near the dash panel.
3. Install the two push-pins (3) that secure the instrument panel silencer to the instrument panel.
