45RFE / 545RFE Transmission

P0760 OD SOLENOID CIRCUIT





When Monitored
Initially at power-up, then every 10 seconds thereafter. The solenoid circuits will also be tested immediately after a gear ratio or pressure switch error is detected.

Set Condition
After three consecutive solenoid continuity test failures, or one failure if test is run in response to a gear ratio or pressure switch error. Note: This DTC is strictly an electrical fault and does not apply to any internal transmission failures.

Possible Causes
- RELATED TIPM TCM DTCS PRESENT
- (T60) OD SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS
- (T60) OD SOLENOID CONTROL CIRCUIT OPEN
- (T60) OD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- TRANSMISSION SOLENOID/TRS ASSEMBLY
- POWERTRAIN CONTROL MODULE

Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting Procedure before proceeding.

Theory of Operation
The Transmission Control System uses six electronically controlled solenoids that allow hydraulic fluid to be applied to various friction elements (clutches), which enables the gear requested. The continuity of each solenoid circuit is periodically tested. Each inactive solenoid is turned on for a few milliseconds, then off. Each active solenoid is turned off for a few milliseconds, then on. This pulsing of voltage to the solenoid causes an inductive spike which can be sensed by the Transmission Control System. If an inductive spike is not sensed by the Transmission Control System during the continuity check, it is tested again. If the test fails three consecutive times, the appropriate Diagnostic Trouble Code (DTC) is set. If the solenoid test is run in response to a gear ratio or pressure switch error, one failure will result in setting the appropriate DTC. Note: This DTC is strictly an electrical fault and does not apply to any internal transmission failures.

Diagnostic Test
1. RELATED TIPM TCM DTCS PRESENT
With the scan tool, check for TIPM DTCs.
Are there any TIPM TCM DTCs present?
Yes >> Perform the appropriate symptom.
No >> Go To 2.
2. CHECK TO SEE IF P0760 IS PRESENT
Turn the ignition off to the lock position.
Remove the Ignition Switch Feed fuse from the TIPM.

CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in personal injury or death.

Install Transmission Simulator, Miller tool #8333.
Ignition on, engine not running.
With the scan tool, actuate the OD Solenoid.
Monitor the OD Solenoid LED on the Transmission Simulator.
Did the OD Solenoid LED on the Transmission Simulator blink on and off?
Yes >> Go To 3.
No >> Go To 4.
3. CHECK THE TRANSMISSION SOLENOID/TRS ASSEMBLY
With the scan tool, continue to actuate the OD Solenoid for the period of 2 minutes with the Transmission Simulator still connected.
After 2 minutes of actuation, with the scan tool, stop the actuation and check for transmission DTCs.
Did the DTC P0760 reset during the actuation test?
Yes >> Go To 4
No >> Replace the Transmission Solenoid/TRS Assembly.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST-VER 1. 45RFE/545RFE Transmission Verification Test
4. CHECK THE (T60) OD SOLENOID CONTROL CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT





Turn the ignition off to the lock position.
Disconnect the Transmission Simulator, Miller tool #8333.
Disconnect the PCM harness connectors.

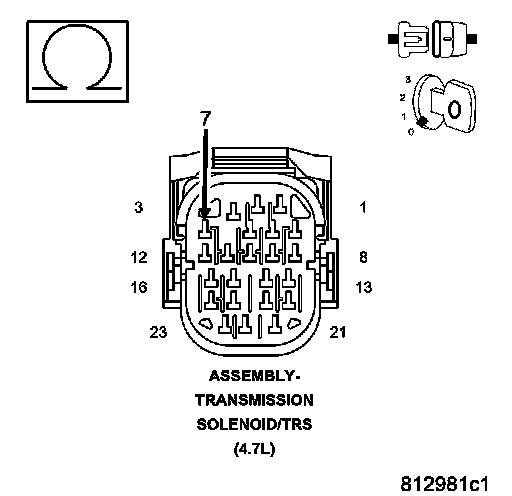

Measure the resistance between the (T60) OD Solenoid Control circuit and all other circuits in the Transmission Solenoid/TRS Assembly harness connector.
Is the resistance below 5.0 ohms between the (T60) OD Solenoid Control circuit and any other circuit(s) in the Transmission Solenoid/TRS Assembly harness connector?
Yes >> Repair the (T60) OD Solenoid Control circuit for a short to another circuit(s).
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST-VER 1. 45RFE/545RFE Transmission Verification Test
No >> Go To 5.
5. CHECK THE (T60) OD SOLENOID CONTROL CIRCUIT FOR AN OPEN





Connect Miller tool #8815 to the PCM C4 harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller special tool #8815 to perform diagnosis.

Measure the resistance of the (T60) OD Solenoid Control circuit between the Transmission Solenoid/TRS Assembly harness connector to the appropriate terminal of Miller tool #8815.
Is the resistance above 5.0 ohms?
Yes >> Repair the (T60) OD Solenoid Control circuit for an open.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST-VER 1. 45RFE/545RFE Transmission Verification Test
No >> Go To 6.
6. CHECK THE (T60) OD SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND





Measure the resistance between ground and the (T60) OD Solenoid Control circuit.
Is the resistance below 5.0 ohms?
Yes >> Repair the (T60) OD Solenoid Control circuit for a short to ground.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST-VER 1. 45RFE/545RFE Transmission Verification Test

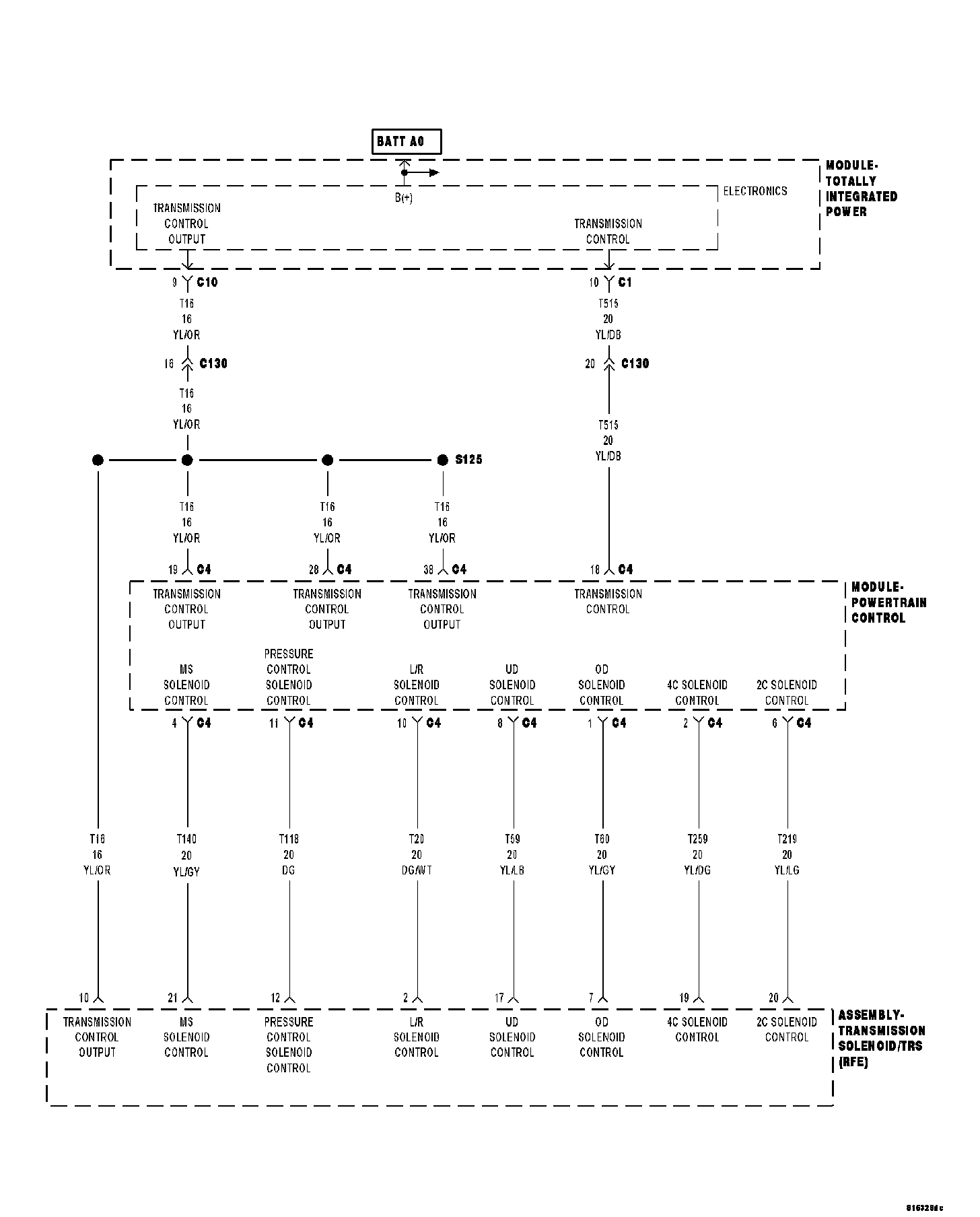

No >> Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM. With the scan tool, perform QUICK LEARN.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST-VER 1. 45RFE/545RFE Transmission Verification Test
