RAM SRT-10 Pickup V10-8.3L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

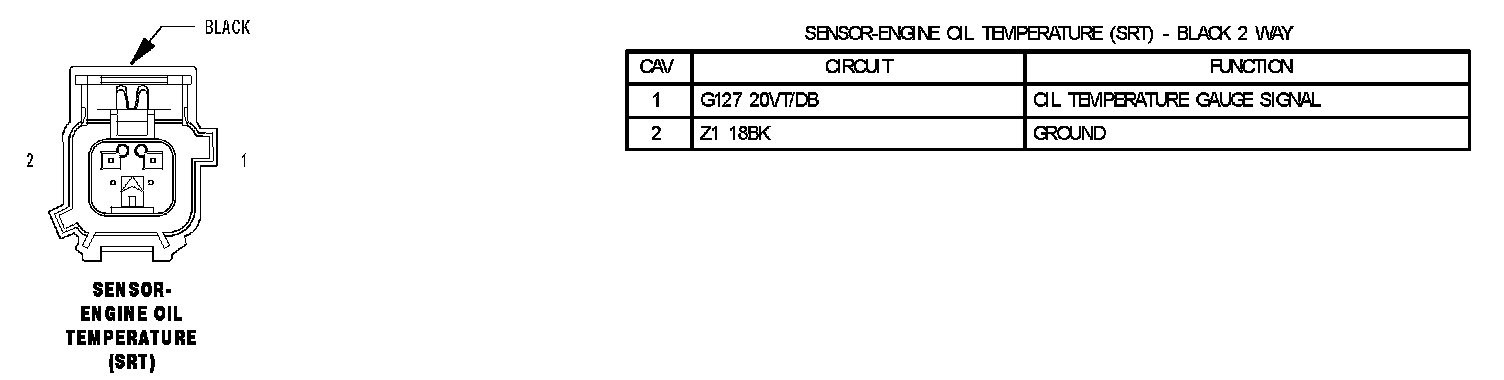

Sensor - Engine Oil Temperature (SRT):
