Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge and Ram
>>
2006
>>
RAM SRT-10 Pickup V10-8.3L VIN H
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
Control Assembly: Locations

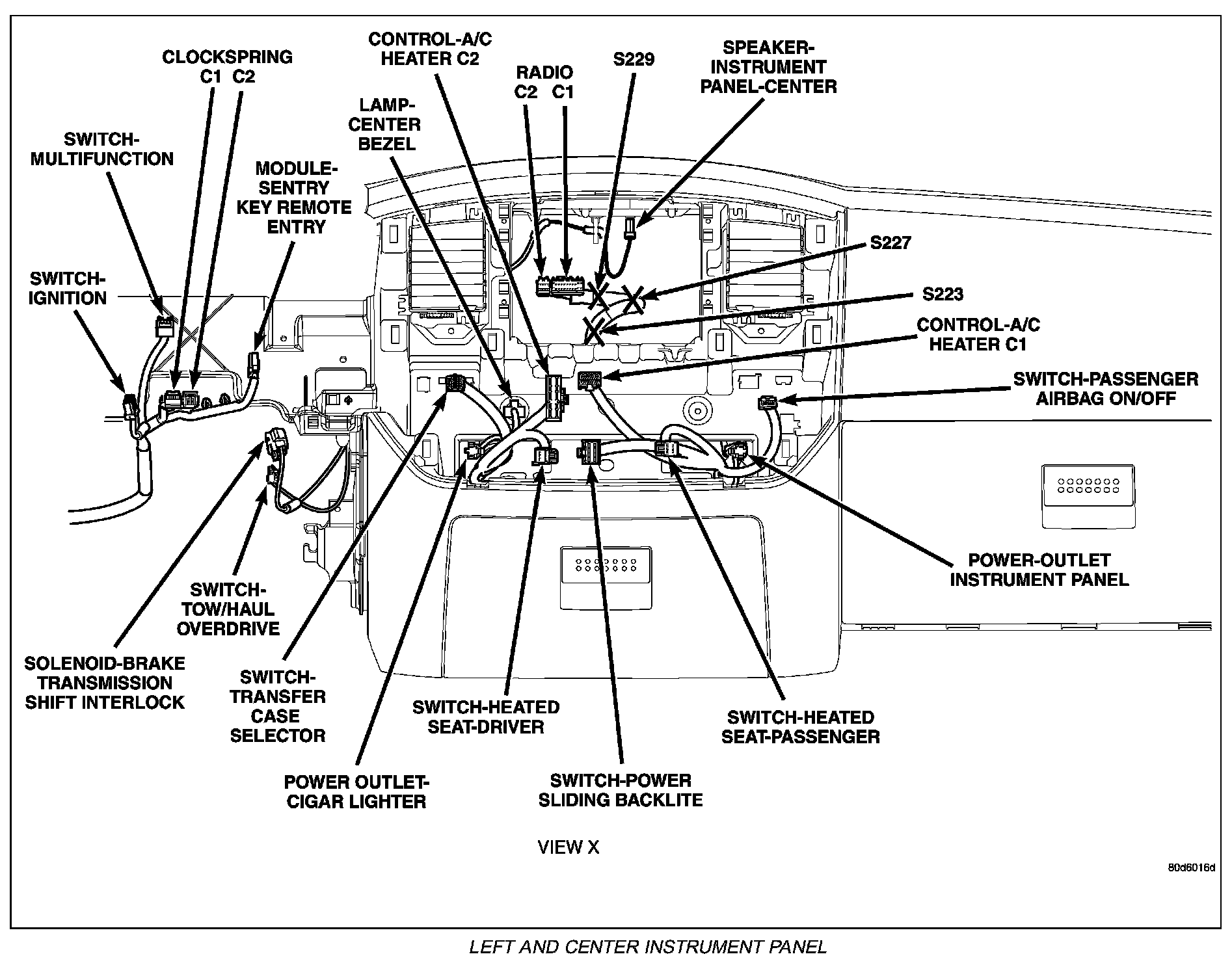

Left And Center Instrument Panel:
