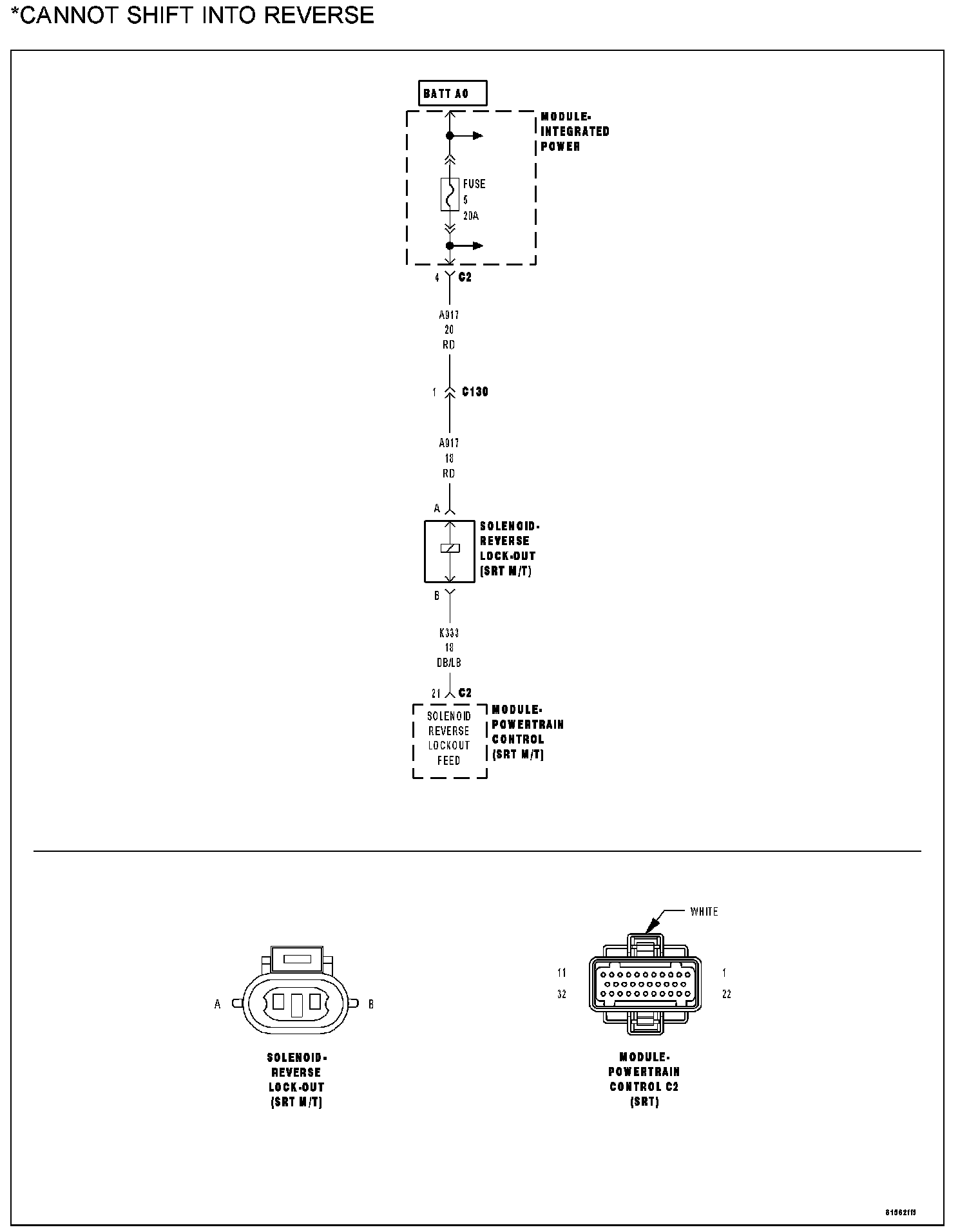

Cannot Shift Into Reverse

CANNOT SHIFT INTO REVERSE

Cannot Shift Into Reverse:

POSSIBLE CAUSES
- Reverse lockout solenoid stuck

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

DIAGNOSTIC TEST

1. REVERSE LOCKOUT SOLENOID STUCK
Check for a mechanically stuck Reverse Lockout Solenoid. This will not set a DTC in the PCM, but will prevent reverse gear engagement.

Q: Is the solenoid stuck?

YES: Replace the Reverse Lockout Solenoid.
NO: Test Complete
