Dodge and Ram
>>
2006
>>
RAM SRT-10 Pickup V10-8.3L VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Locations
>>
Connector Locations
Connector Locations

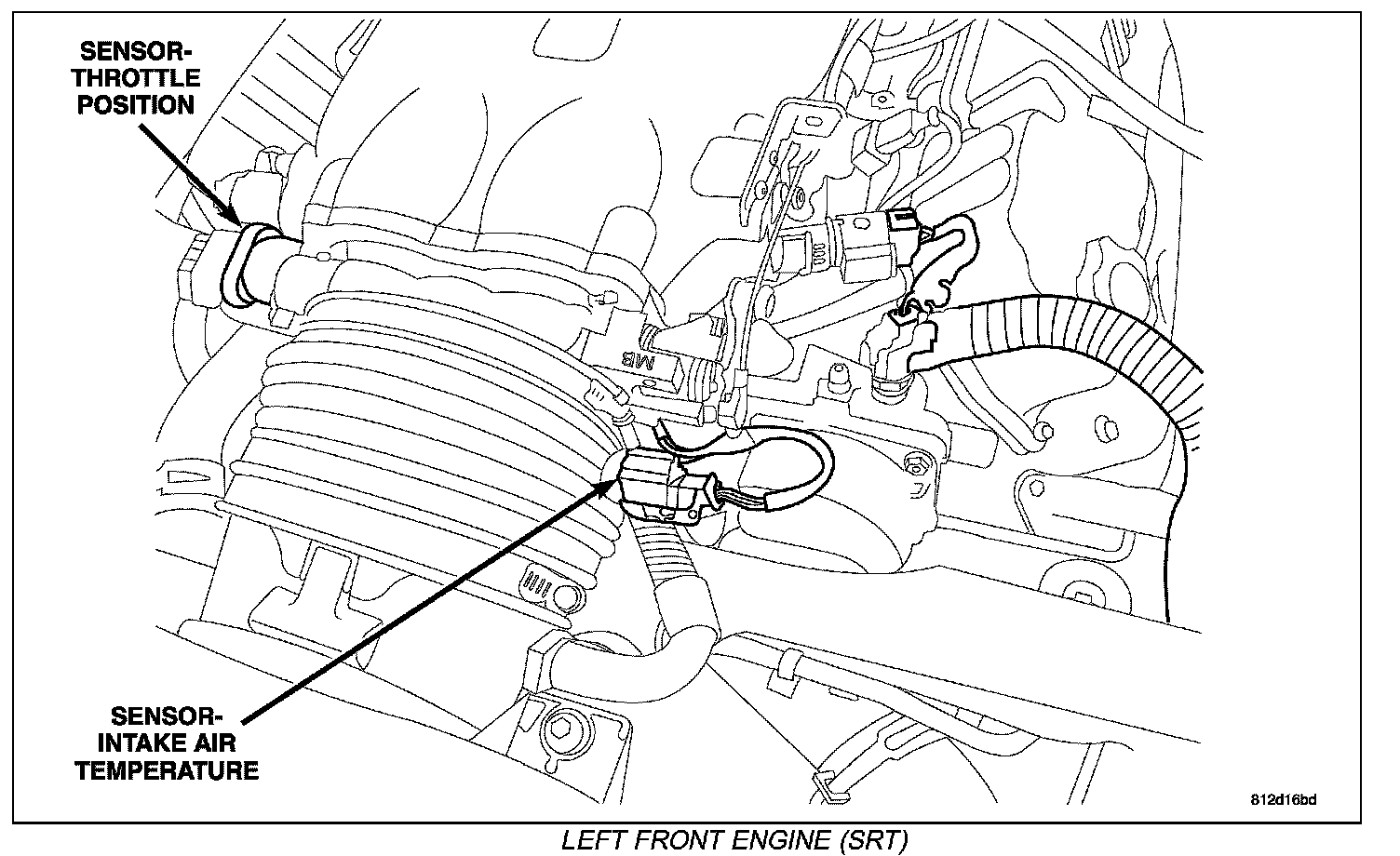

Left Frone Engine (SRT):
