SPECIFICATIONS
AUTOMATIC TRANSMISSION-48RE
GENERAL:
GEAR RATIOS:

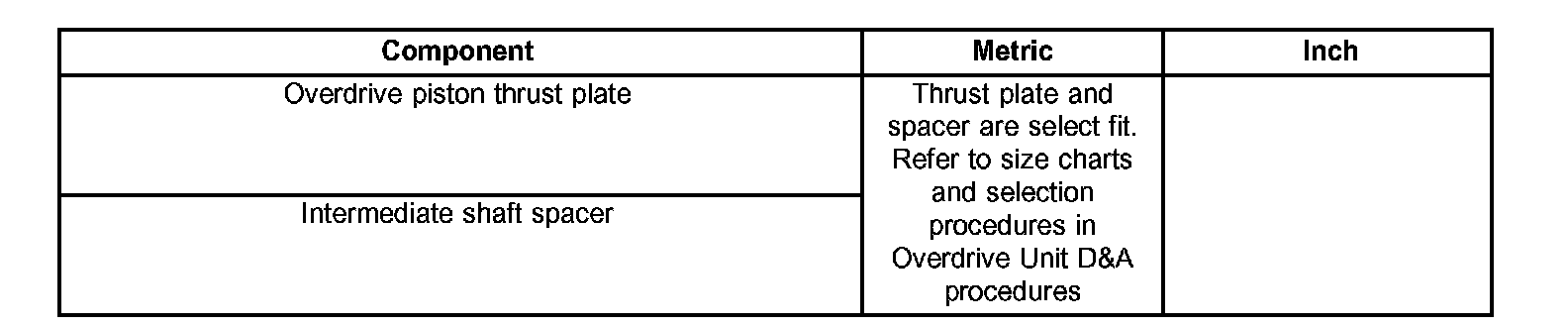

THRUST WASHER/SPACE R/SNAPRING DIMENSIONS:

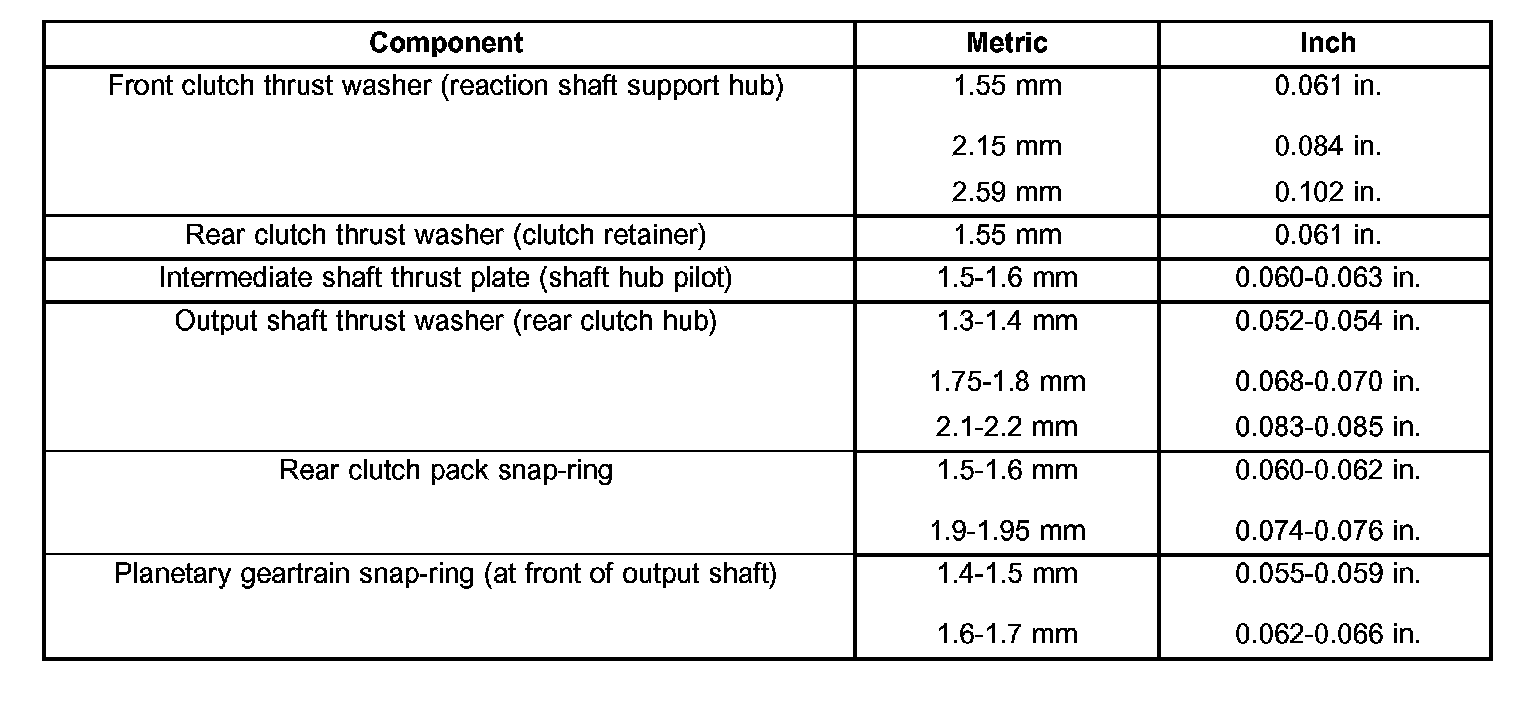

THRUST WASHER/SPACE R/SNAPRING DIMENSIONS:

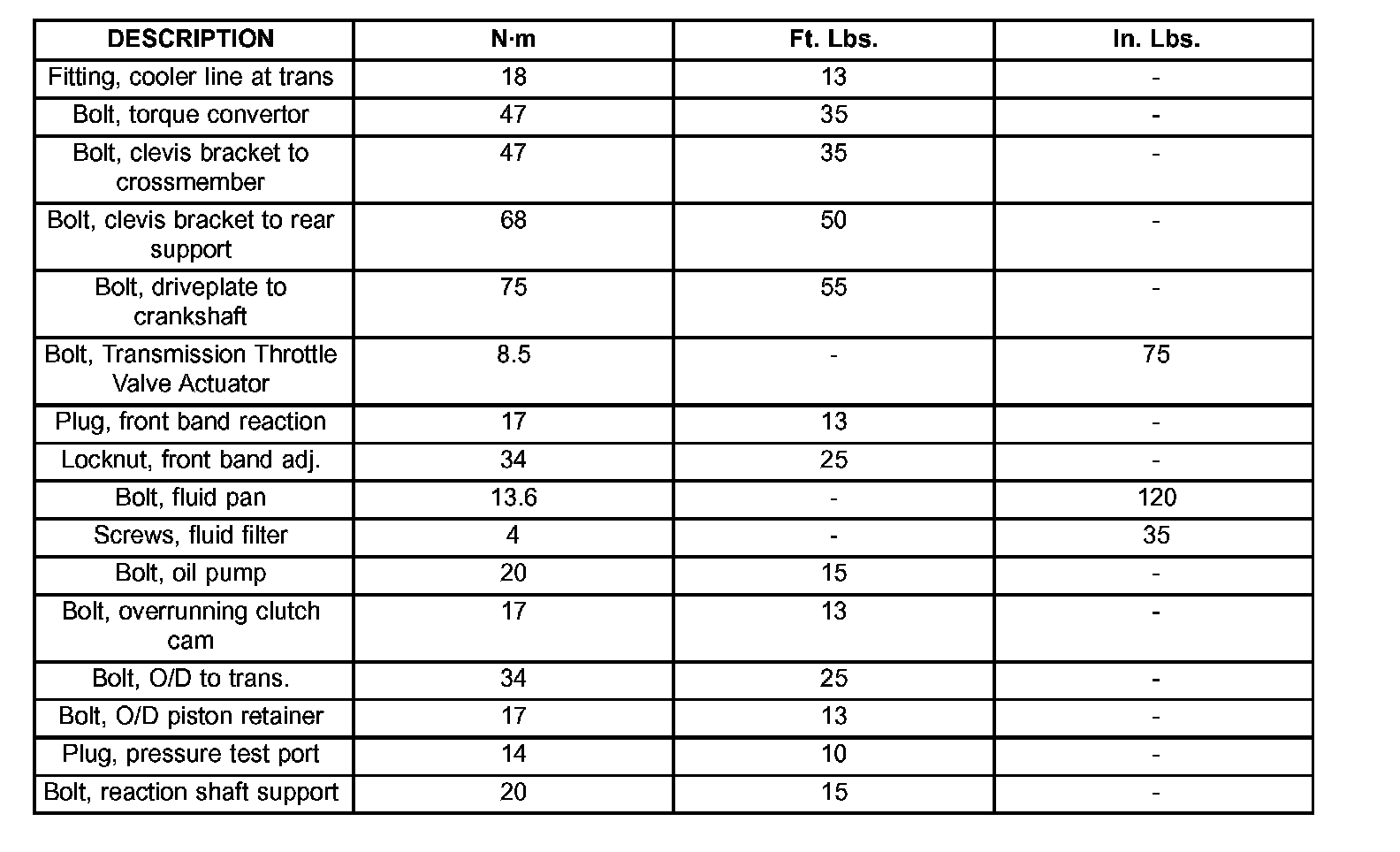

TORQUE SPECIFICATIONS:

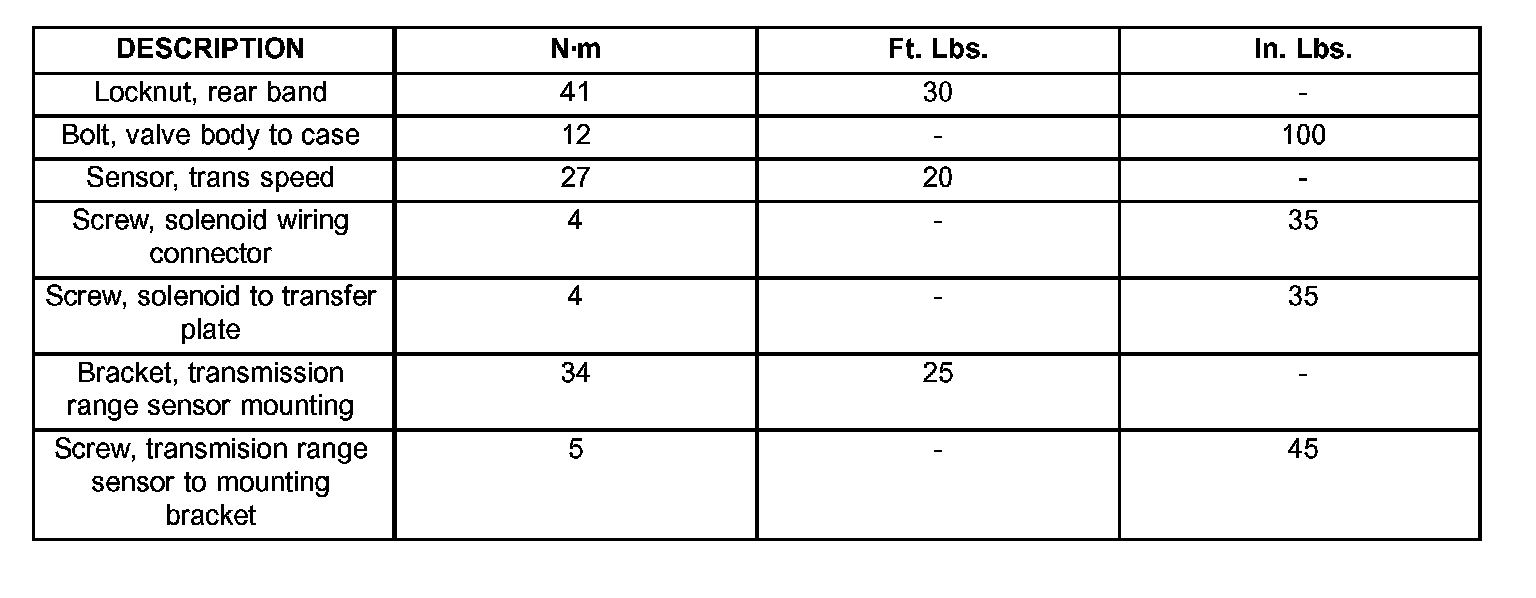

TORQUE SPECIFICATIONS:
