A/C Condenser Cover

REMOVAL

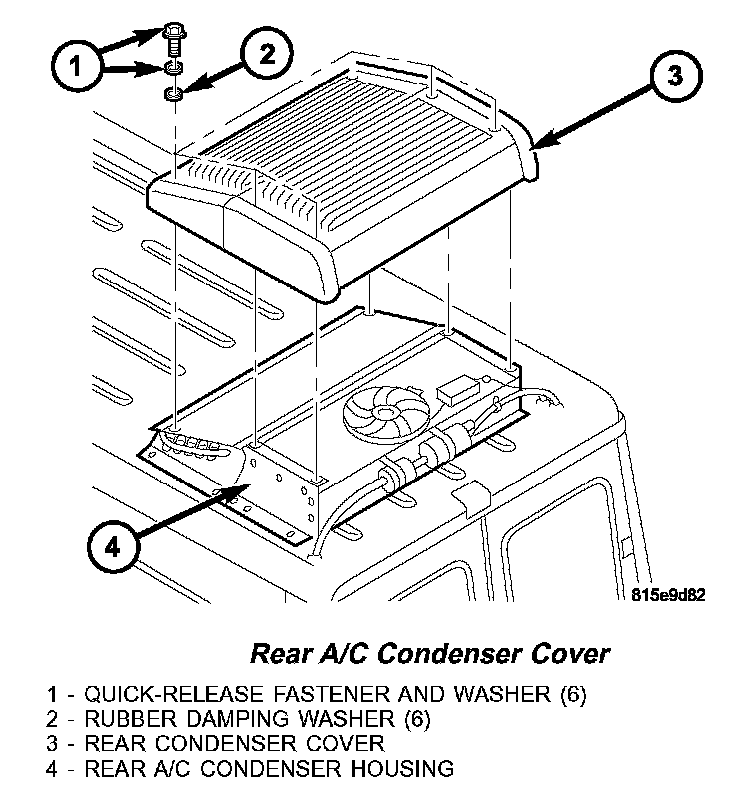

Rear A/C Condenser Cover:

1. Unlock the six quick-release fasteners by turning them 90 degrees in either direction.
2. Remove the rear A/C condenser cover from the rear A/C condenser housing.

INSTALLATION
1. Inspect the six rubber damping washers for correct sealing. Replace the washers as required.
2. Position the rear A/C condenser cover over the rear A/C condenser housing.
3. Lock the six quick-release fasteners by turning them 90 degrees in either direction.
