Description

DESCRIPTION

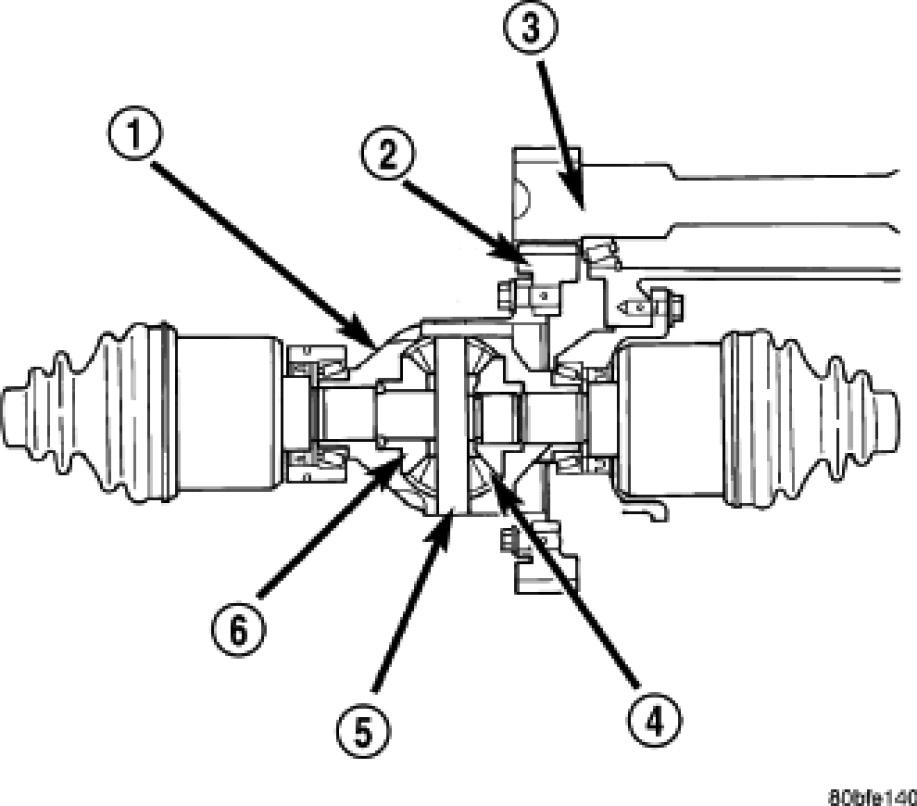

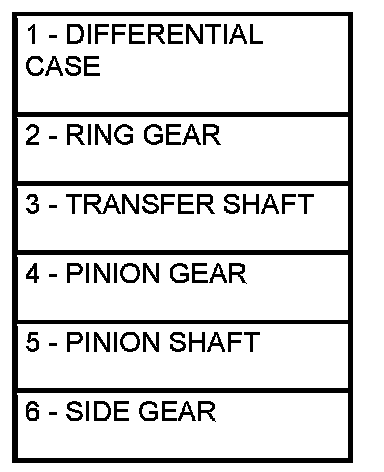

Figure 1 Differential Assembly







The 41TE differential is a conventional open design. It consists of a ring gear and a differential case. The differential case consists of pinion and side gears, and a pinion shaft. The differential case is supported in the transaxle by tapered roller bearings (Figure 1).
