Power Steering Fluid: Testing and Inspection

POWER STEERING FLUID LEVEL CHECKING

WARNING: FLUID LEVEL SHOULD BE CHECKED WITH THE ENGINE OFF TO PREVENT INJURY FROM MOVING PARTS AND TO ENSURE ACCURATE FLUID LEVEL READING.

CAUTION: Mopar(R) Power Steering Fluid + 4 or Mopar(R) ATF+4 Automatic Transmission Fluid is to be used in the power steering system. Both Fluids have the same material standard specifications (MS-9602). No other power steering or automatic transmission fluid is to be used in the system. Damage may result to the power steering pump and system if another fluid is used. Do not overfill the system.

The fluid level can be read on the exterior of the power steering fluid reservoir. The fluid level should be within the "FILL RANGE" when the fluid is at normal ambient temperature, approximately 21� C to 27�C (70� F to 80� F) (Figure 1).


Before removing the power steering filler cap, wipe the reservoir filler cap free of dirt and debris. Do not overfill the power steering system. Use only Mopar(R) Power Steering Fluid + 4 or Mopar(R) ATF+4 Automatic Transmission Fluid in the power steering system.

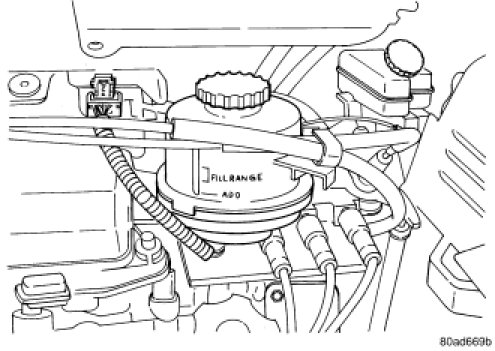

Figure 1 POWER STEERING FLUID RESERVOIR
