Front Door: Description and Operation

DESCRIPTION - FASTENER

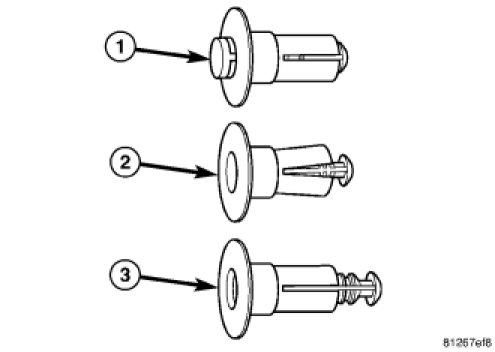

1. The push pin fastener is in the open position (1) when the center pin is pull outward approximately 2 mm. Then the push pin fastener is ready to be used.

2. To install push pin place it into position, and push the center pin in flush with the head of the push pin to lock it into position (2).

3. To remove the push pin fastener, push the center pin inward approximately 2 mm to release push pin fastener (3).
