Installation

INSTALLATION

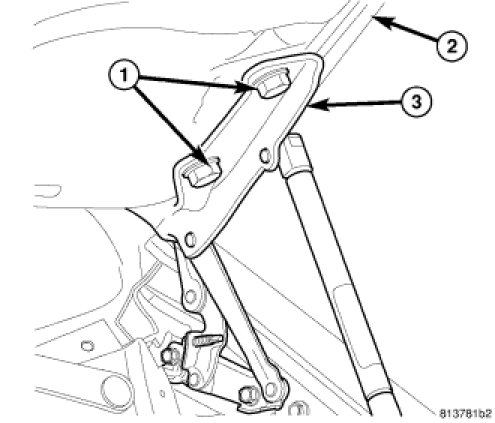

1. With the aid of an assistant, support and position the hood panel (2) to the two upper hinge brackets (3) on the vehicle.

2. Install and tighten the two screws (1) that secure each upper hinge bracket to the hood. Tighten the screws to 28 Nm (21 ft. lbs.).

3. Reconnect the washer supply hose between the body and the two washer nozzles on the underside of the hood.

4. Close the hood.

5. Adjust the hood hinge positions and the hood adjuster bumpers as necessary to achieve proper spacing and operation.
