Installation

INSTALLATION





NOTE: Be sure to install each tumble into their correct location within the lock cylinder.

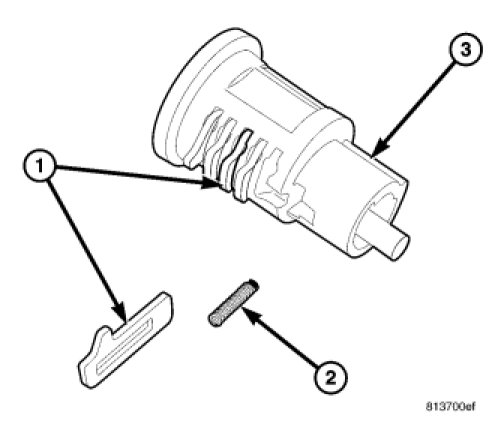

1. If removed, install the springs (2) and the tumblers (1) into the glove box lock cylinder (3) in the order in which they were removed.

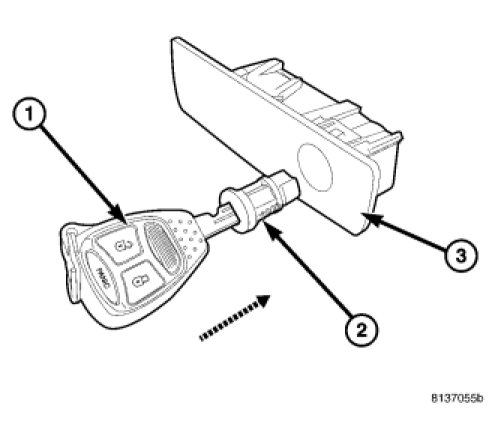

2. Install the ignition key (1) and the glove box lock cylinder (2) into the glove box latch (3) as an assembly.

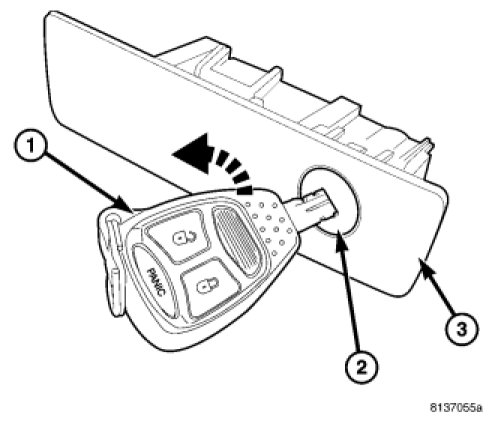

3. Rotate the ignition key (1) counterclockwise until the lock cylinder (2) is fully retained in the glove box latch (3).

4. Install the glove box latch onto the glove box door
