Cylinder Block Assembly: Specifications

General Specifications:

General Specifications

Cylinder Block:

Cylinder Block

Pistons:

Pistons

Piston Pins:

Piston Pins

Piston Rings:

Piston Rings

Connecting Rods:

Connecting Rods

Crankshaft:

Crankshaft

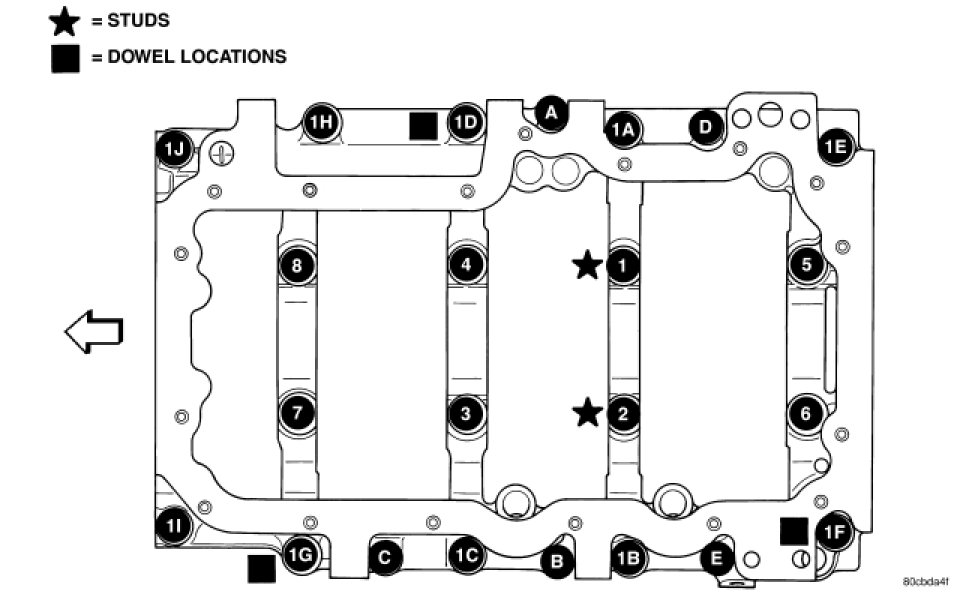

Bed Plate Bolts
Hand tighten bolts 1D,1G and 1F until the bedplate contacts the block.
Tighten bolts 1A - 1J to 54 Nm (40 ft. lbs.)
Tighten bolts 1 - 8 to 7 Nm (5 ft. lbs.)
Turn bolts 1 - 8 an additional 90�.
Tighten bolts A - E to 27 Nm (20 ft. lbs.)

Crankshaft Damper bolt 175 Nm (130 ft. lbs.)
Connecting Rod Cap Bolts 27 Nm (20 ft. lbs.)
Plus 90� TURN
