Sensor-Knock

Component ID: 283
Component : SENSOR-KNOCK

Connector:
Name : SENSOR-KNOCK
Color : BLACK
# of pins : 4




Pin Description Circuit
1 KNOCK SENSOR NO. 1 SIGNAL K42 20DB/OR
2 KNOCK SENSOR NO. 1 RETURN K942 20BR/LG
3 KNOCK SENSOR NO. 2 SIGNAL K242 20BR/WT
4 KNOCK SENSOR NO. 2 RETURN K924 20PK/RD

Component Location - 12

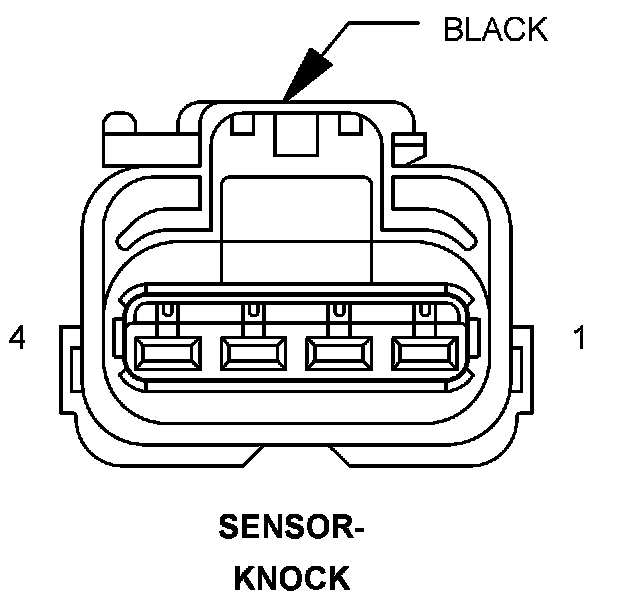

Fig. 12:
