Removal

REMOVAL

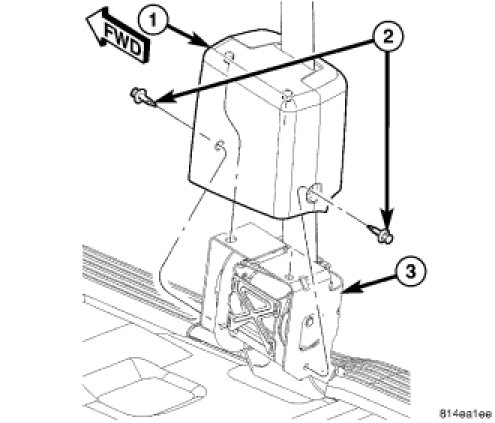

1. Remove the two plastic push-pin retainers (2) that secure the outer front seat belt retractor cover (1) to the outer front seat belt retractor (3).

2. Raise the retractor cover upward to disengage the two locator pins on the inside top of the inboard retractor cover from the locator holes in the top of the retractor.

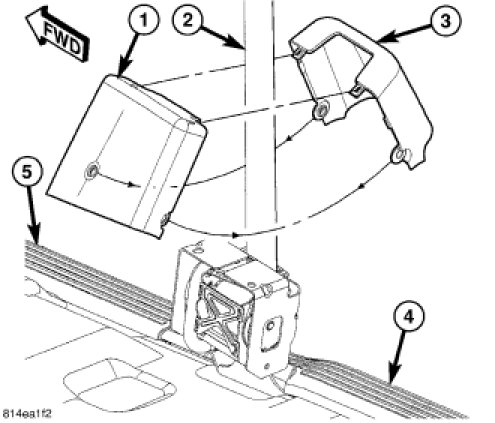

3. Spread the bottom of the inboard (1) and outboard (3) retractor cover halves apart and disengage the snaps located at the top of the cover halves and remove the cover halves.
