Removal

REMOVAL




1. Adjust the front seat to its most forward position.

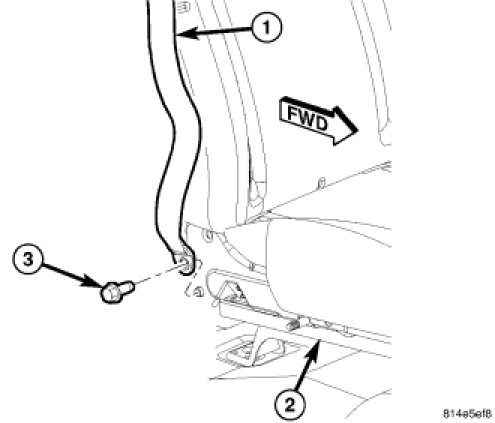

2. Remove the screw (3) that secures the lower anchor to the outboard side of the front seat cushion frame (2).

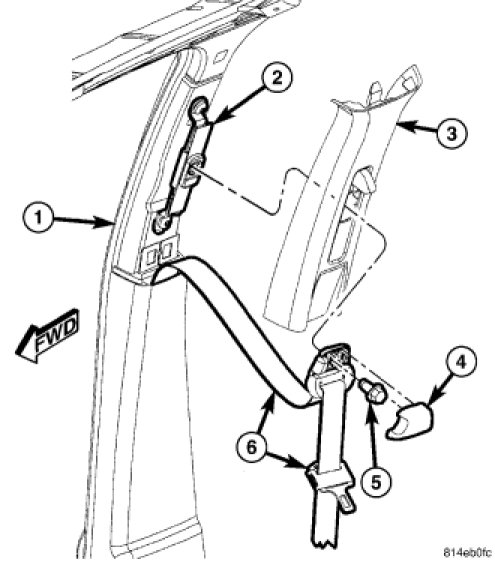

3. Unsnap the trim cover (4) from the front seat belt (6) turning loop.

4. Remove the screw (5) that secures the seat belt turning loop to the height adjuster (2) on the upper B-pillar.

5. Remove the seat belt turning loop from the height adjuster.

6. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the upper B-pillar trim panel (3) to the B-pillar (1) and remove the trim panel.
