Installation

INSTALLATION

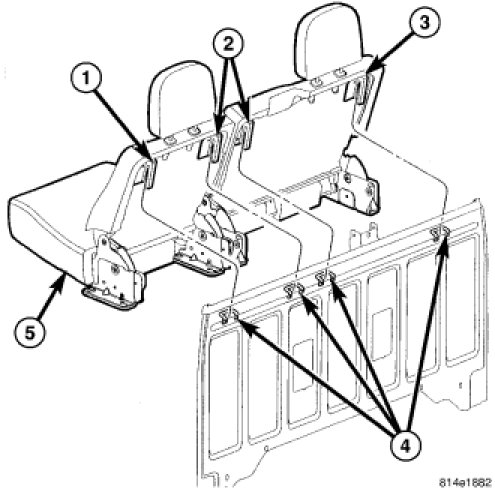

1. Position the seat (5) on the cab back hooks (4) and the floor studs.

2. Ensure the seat back is firmly hooked to the cab back retainers.

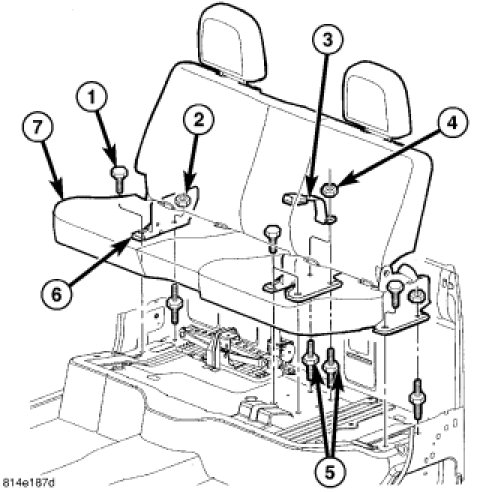

3. Position the center seat belt (3) onto the floor stud (5) (for left seat installation).

4. Install the floor fasteners.

5. Tighten the bolts to 52 Nm (38 ft. lbs.).

6. Tighten the nuts to 41 Nm (30 ft. lbs.).

7. Install the jack assembly.
